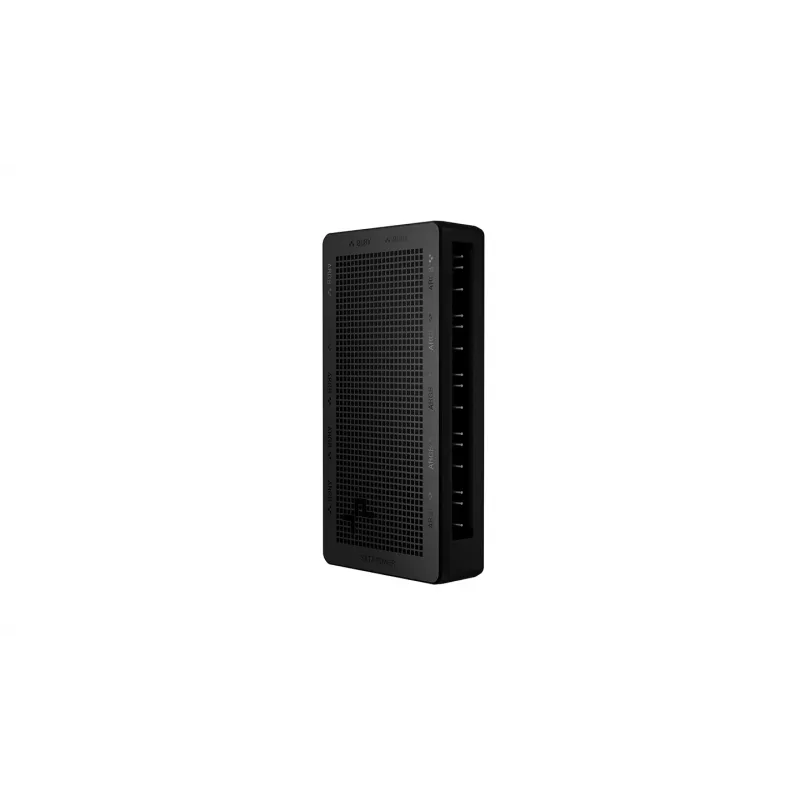

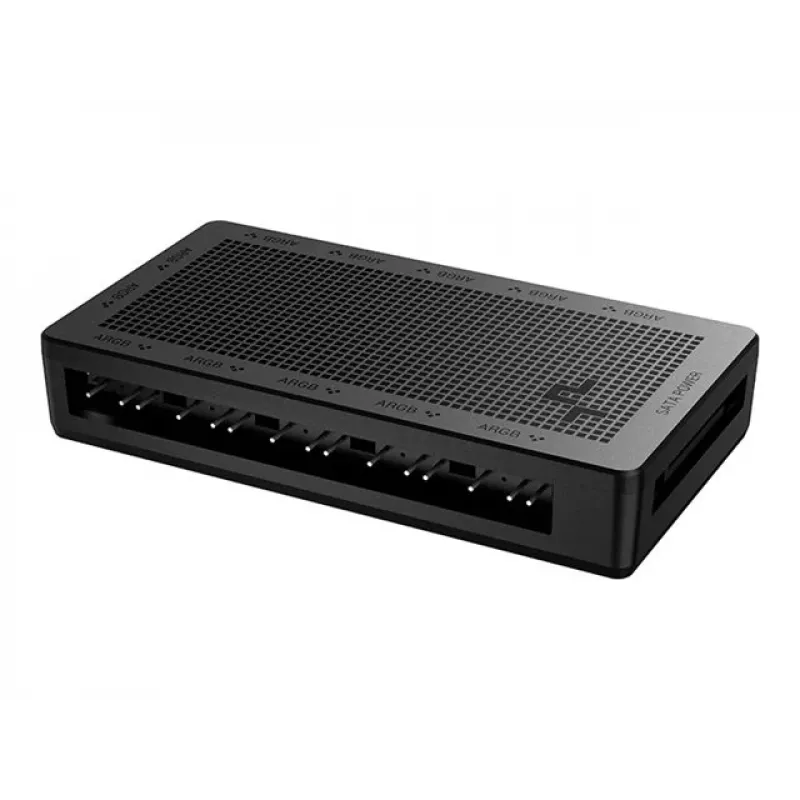

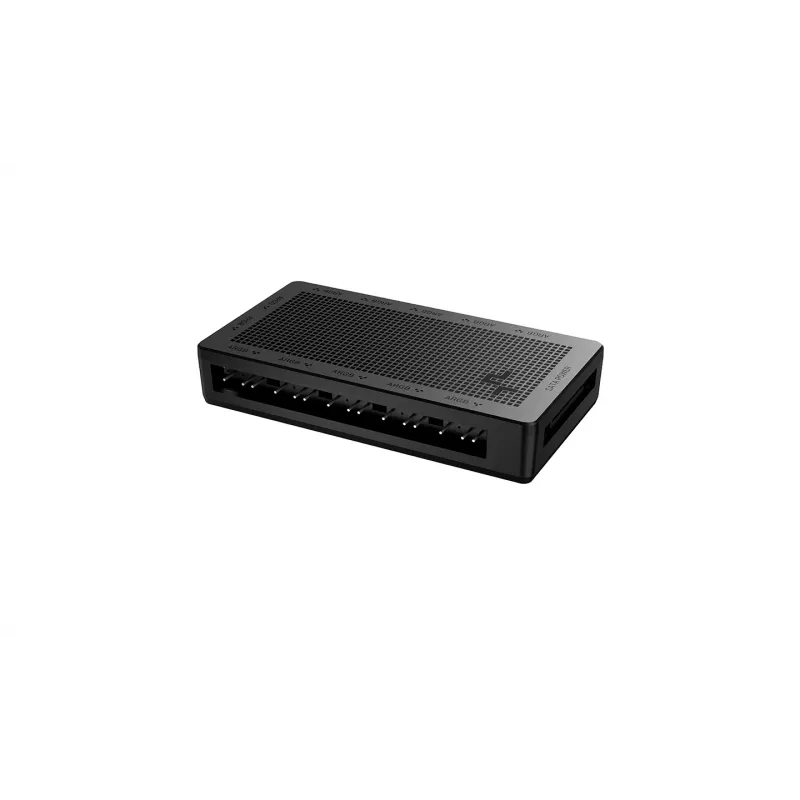

DeepCool RGB Hub SC700 12-Port Addressable RGB Hub, 12 ARGB 3-pin Ports, Magnetic Mount, Black, 45×84×15 mm

The DeepCool SC700 12-port ARGB hub expands a single 3-pin 5V motherboard or controller header to power and synchronize up to twelve 5V addressable RGB components. It uses a SATA power connector to supply stable continuous power and features a compact, sturdy magnetic housing that can be mounted behind the motherboard tray or placed elsewhere in the case. The hub is compatible with major motherboard RGB ecosystems but is not compatible with 12V 4-pin RGB devices.

Advantages

The hub allows connection of up to 12 ARGB devices using only one 3-pin 5V header, reducing cable clutter while maintaining synchronized lighting. Its SATA-powered design provides reliable, continuous power to multiple LEDs, and the magnetic metal enclosure offers flexible, secure placement inside the PC case. The unit supports ASUS Aura, GIGABYTE Fusion, MSI Mystic Light and ASRock Polychrome for unified control.

Suitable for

• PC builders who need to connect multiple 5V addressable RGB components
• Systems with limited 3-pin ARGB headers
• Custom gaming PCs aiming for synchronized case lighting
• Upgrades that require additional ARGB connection points

Key specifications

• Model: DeepCool SC700 (R-SC700-BKNSNN-G)
• Ports: 12 × 3-pin 5V addressable RGB ports
• Motherboard connection: 1 × 3-pin 5V ARGB header
• Power input: SATA power connector for continuous supply
• Compatibility: ASUS Aura, GIGABYTE Fusion, MSI Mystic Light, ASRock Polychrome
• Incompatible with: 12V 4-pin RGB devices
• Form factor: compact magnetic metal housing for easy mounting

How to use

Connect the SC700 to a single 3-pin 5V ARGB header on your motherboard or RGB controller, then attach up to twelve 5V addressable RGB devices to the hub’s ARGB ports. Connect the SATA power cable to your power supply to ensure stable power delivery to all connected lighting devices. After installation, use your motherboard RGB software (ASUS Aura, GIGABYTE Fusion, MSI Mystic Light or ASRock Polychrome) to detect and synchronize lighting effects.

Recommendations

Do not connect 12V 4-pin RGB devices to this 5V ARGB hub. Ensure the SATA power connector is securely attached to the PSU and avoid exceeding the current limits of your motherboard header or power supply by distributing high-power LED strips across appropriate power sources.
