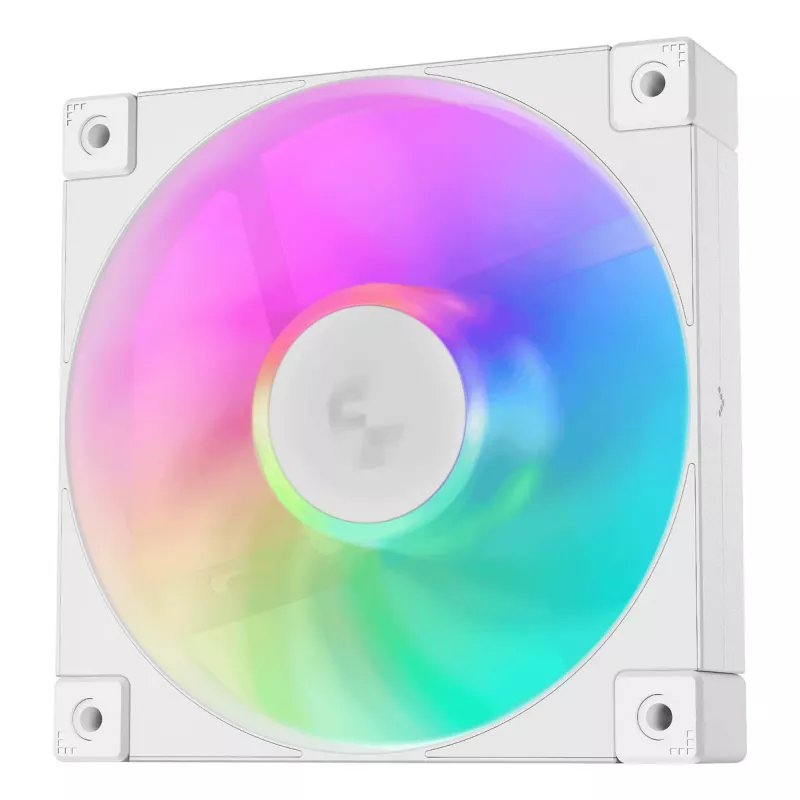

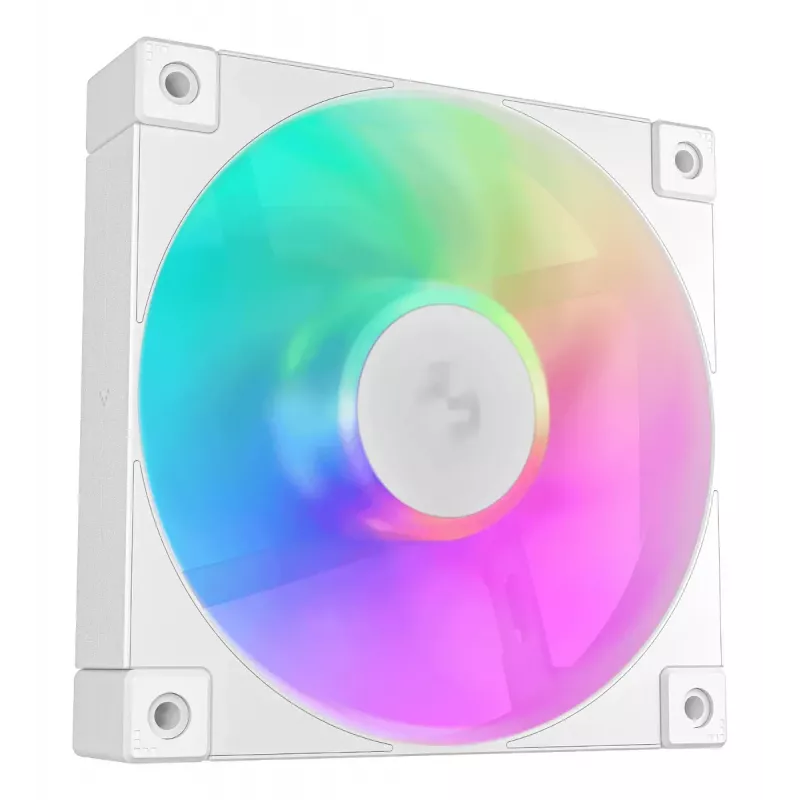

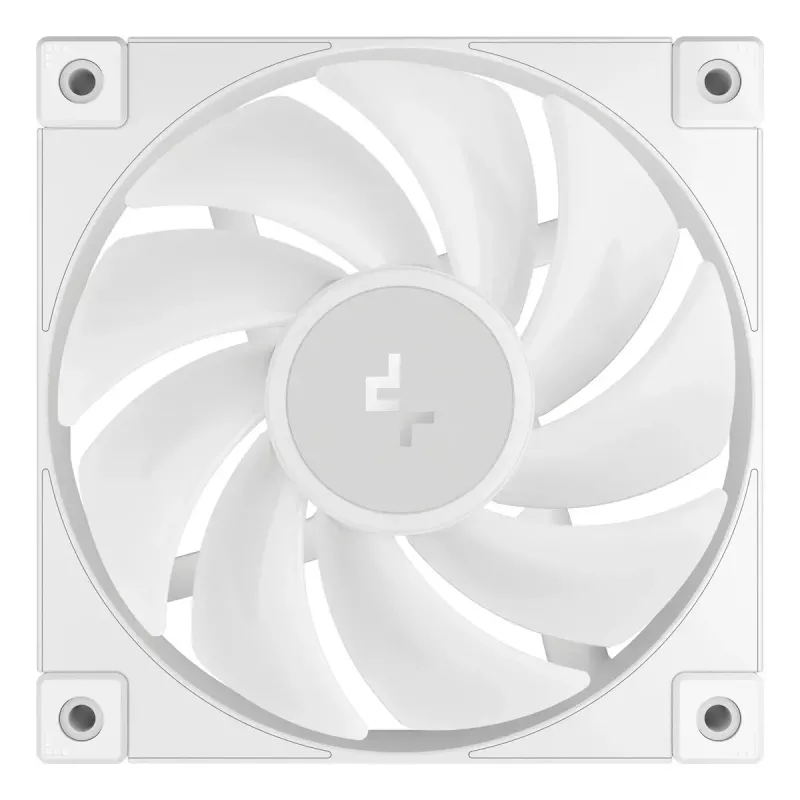

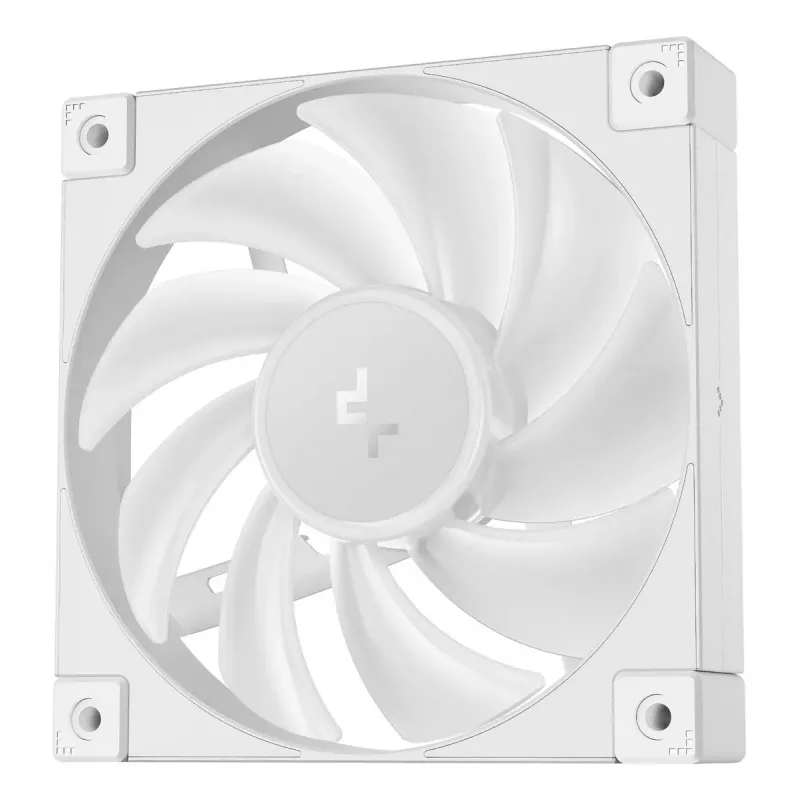

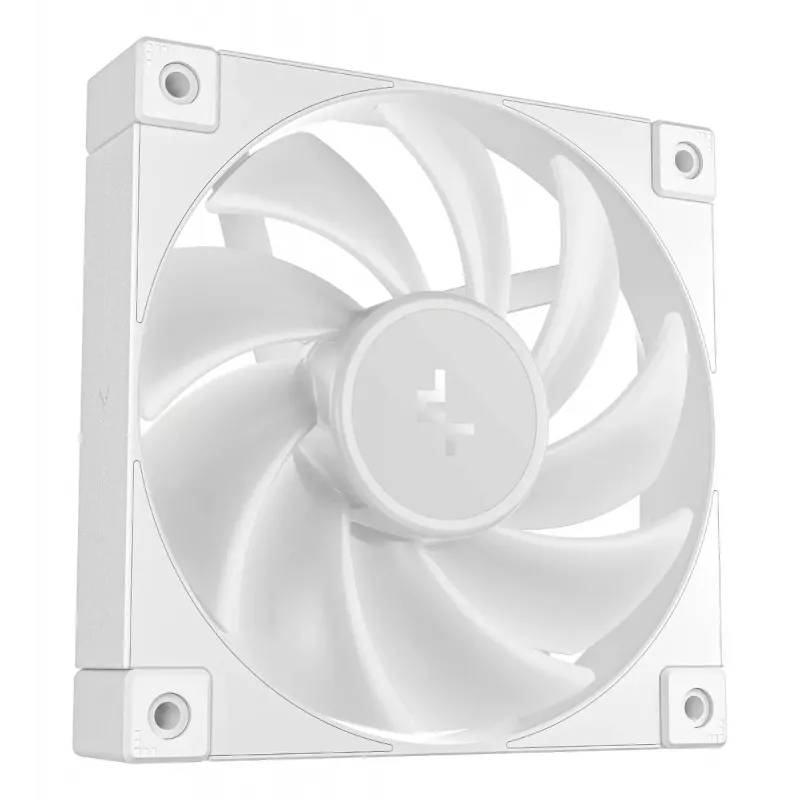

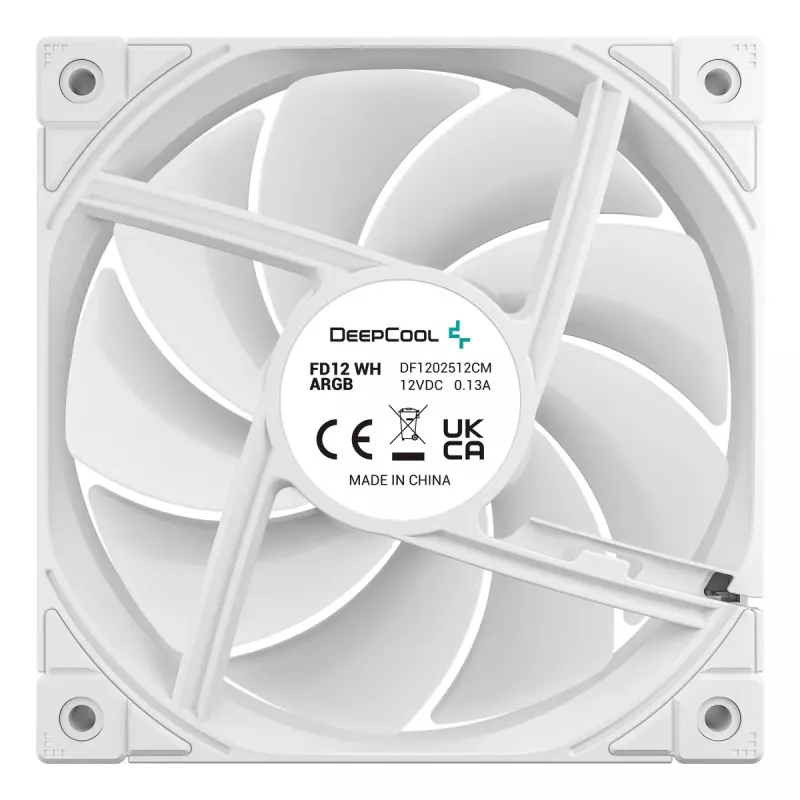

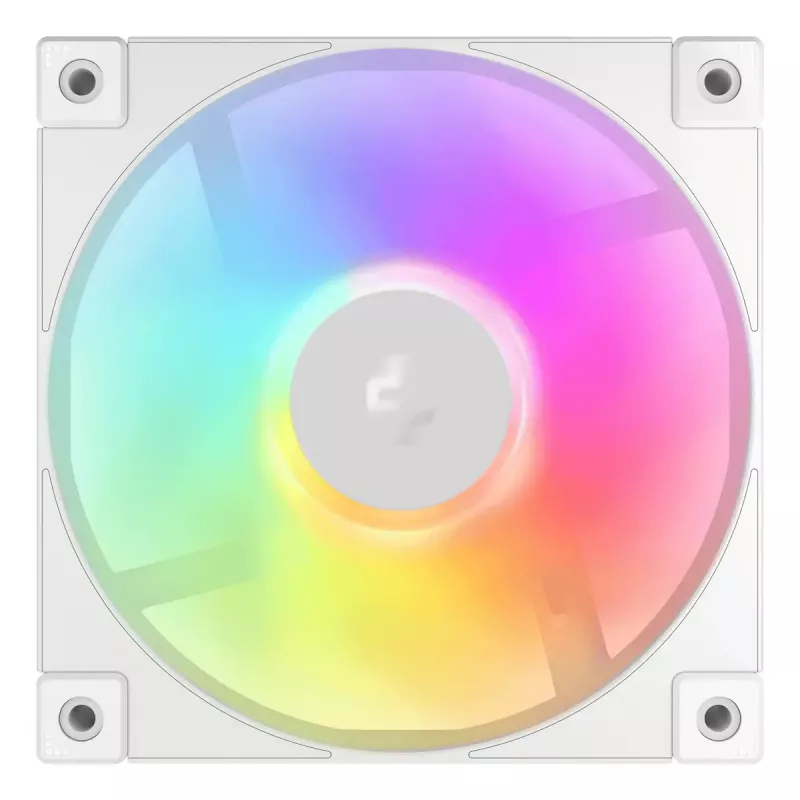

12 cm DeepCool FD12 ARGB computer case fan, white, 400–2050 RPM, hydraulic bearing

The FD12 ARGB PWM case fan combines vivid addressable RGB lighting with reliable cooling performance and simplified cable management. It uses an 8-pin daisy-chain cable and updated block-shaped connectors for secure, straightforward connections between multiple FD fans. Six bright ARGB LEDs around the hub provide Gen 2 addressable lighting compatible with motherboard ARGB headers, while a long-life hydraulic bearing and optimized blade and frame materials deliver stable airflow and reduced noise. Full-coverage rubber corner pads minimize vibrations, and the fan is covered by a three-year limited warranty.

Advantages

The integrated 8-pin daisy-chain cable reduces cable clutter and makes multi-fan setups easier to manage. Block-shaped 8-pin connectors improve connection stability compared with previous straight-line designs. Enhanced materials—PBT-based frames and polycarbonate blades—ensure consistent manufacturing and a quieter acoustic profile. Hydraulic bearing provides reliable long-term operation, and rubber corner pads lower vibration and mounting noise. Gen 2 ARGB lighting gives greater control and synchronization with compatible motherboards.

Key specifications

• Form factor: 120 x 120 x 25 mm
• Speed: up to 2050 RPM
• Noise level: 26.9 dB
• Airflow: 63.6 CFM
• Air pressure: 2.56 mmH2O
• Bearing type: Hydraulic
• Control: PWM support
• Lighting: ARGB Gen 2, 6 LEDs
• Color: White
• Package quantity: 1 pc
• Warranty: 3 years limited

How to use

Install the fan into a compatible 120 mm fan mounting location in your computer case using the provided screws or mounting hardware. Connect the 8-pin daisy-chain cable to the next FD fan if using multiple fans, and plug the block-shaped 8-pin connector into the fan frame securely. Attach the ARGB cable to a compatible ARGB header on the motherboard to enable lighting control, and connect the PWM power cable to a PWM-capable fan header for speed control. Verify fan orientation for intended airflow direction and secure all screws evenly to avoid uneven pressure and additional noise.

Recommendations

For optimal cooling and synchronized lighting, use FD series fans together and connect ARGB and PWM cables to compatible motherboard headers. Ensure even mounting pressure and avoid contact with case cables or panels to minimize noise and vibration.
