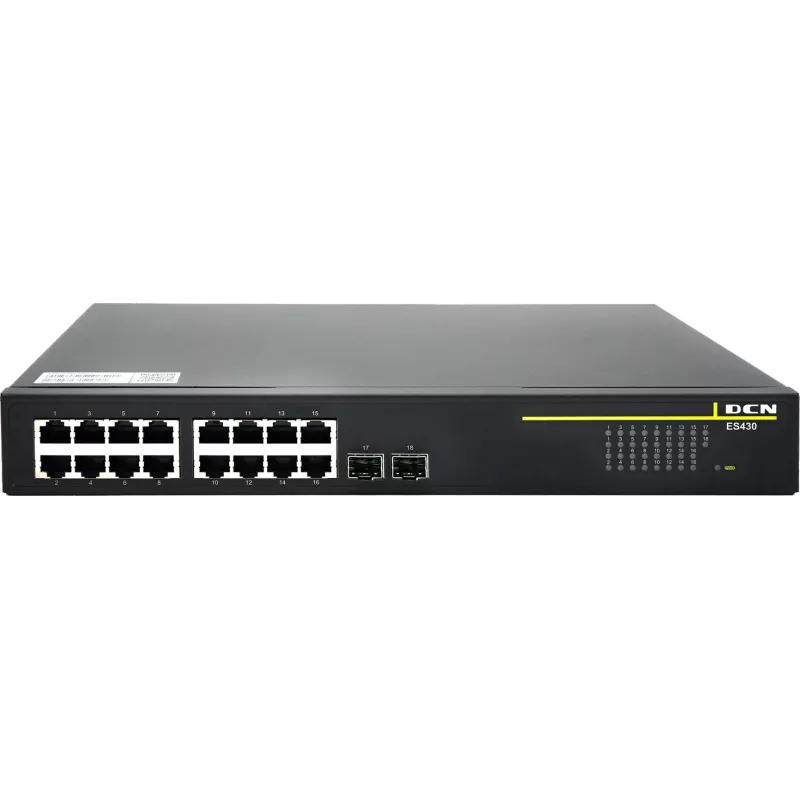

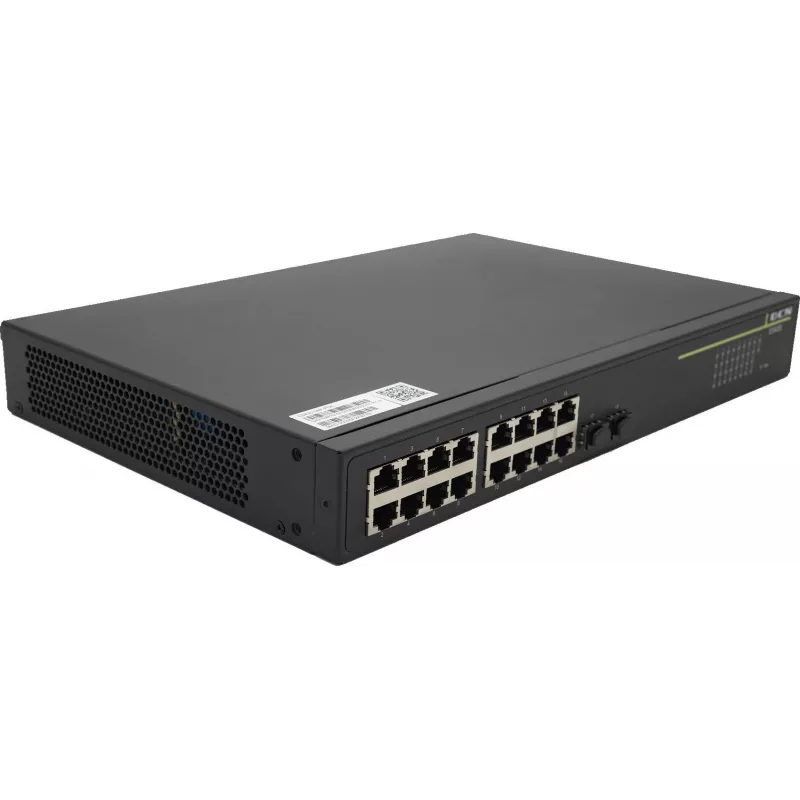

DCN ES430-18P-POE Layer 2 Managed Switch 16x PoE+ 2x SFP 250W

The DCN ES430-18P-POE is a high-performance Layer 2 managed switch designed for enterprise and SMB networks. It features 16 Gigabit PoE+ ports and 2 Gigabit SFP uplink ports, delivering a total PoE power budget of 250W to power IP cameras, VoIP phones, and wireless access points. With a switching capacity of 36 Gbps and advanced management features, this switch ensures reliable and efficient network operations.

Advantages

Cost-effective PoE+ solution with 250W budget, supporting IEEE 802.3af/at for flexible device powering. Layer 2 management provides VLAN segmentation, QoS, and security features. Compact 1U rack-mountable design fits standard server racks.

Suitable for

• Small to medium business networks requiring PoE for IP cameras and access points
• Enterprise edge deployments needing managed switching with uplink flexibility
• Surveillance systems with multiple PoE cameras

Key specifications

• 16 x 10/100/1000Base-T PoE+ ports (IEEE 802.3af/at)
• 2 x 1000Base-X SFP uplink ports
• Switching capacity: 36 Gbps
• Forwarding rate: 26.78 Mpps
• MAC address table: 8K entries
• VLAN support: 4K VLANs (IEEE 802.1Q)
• Jumbo frame support: 9KB
• Management: Web GUI, CLI, SNMP, Telnet, SSH
• Spanning Tree: STP, RSTP, MSTP
• Link Aggregation: LACP
• QoS: 8 queues per port, WRR/SP/WFQ
• Security: Port Security, DHCP Snooping, IP Source Guard, ARP Inspection
• Power supply: Internal AC 110-240V, 50/60Hz
• Form factor: 1U rack-mountable
• Operating temperature: 0°C to 50°C

Recommendations

For optimal performance, use Category 5e or higher cabling for PoE+ ports. Ensure adequate ventilation in the rack to maintain operating temperature. The switch supports up to 250W total PoE power; verify individual device power requirements to avoid overloading.
