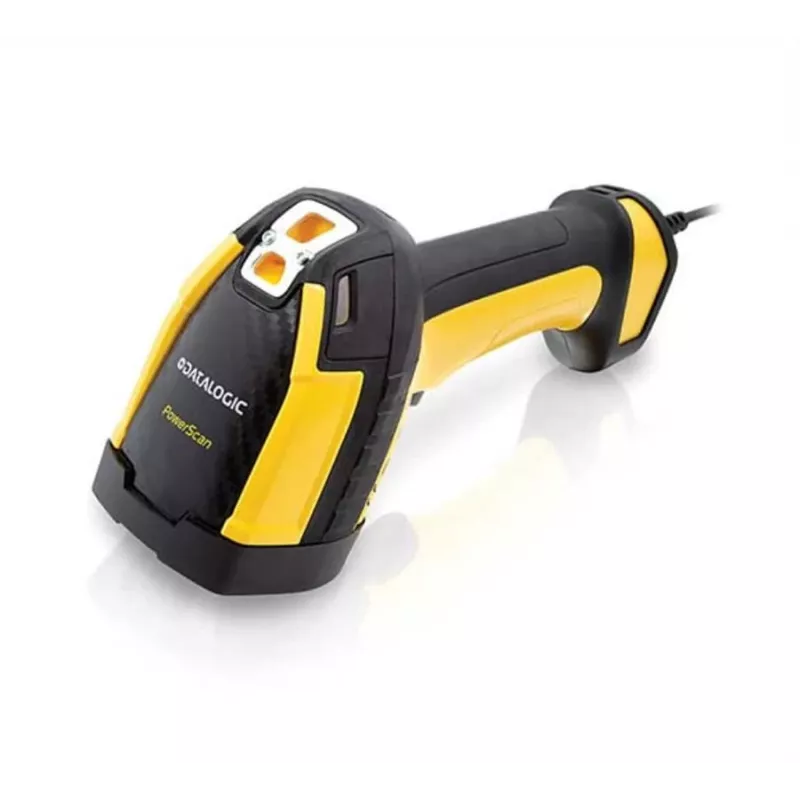

Datalogic PowerScan PD9630-SR - RS-232 Kit - Barcode-Scanner

Engineered for the toughest environments, the PowerScan PD9630-SR delivers an unmatched 2.5 m drop resistance and IP65 sealing, ensuring reliable performance in warehouses, manufacturing floors, and outdoor logistics. This corded RS-232 kit includes the scanner, cable, and power supply, ready for immediate deployment.

Overview

The Datalogic PowerScan PD9630-SR is a rugged industrial handheld barcode scanner featuring a high-resolution 1280 x 800 pixel 2D area imager. It reads all common 1D, 2D, and postal codes, plus Digimarc barcodes, with motion tolerance up to 3.0 m/s. The scanner provides clear feedback via beeper, Datalogic 3GL™ (3 Green Lights), and vibration, even in noisy environments.

What stands out

• Extreme durability: withstands 2.5 m drops onto concrete and is IP65 rated against dust and water.
• Superior scanning: 2D imager with 1280 x 800 resolution, reads 1D codes down to 2.5 mil and 2D codes down to 4 mil.
• Fast and accurate: motion tolerance up to 3.0 m/s and a reading range up to 70 cm for 13 mil UPC.
• Enhanced feedback: Datalogic 3GL™ (3 Green Lights) and vibration for instant confirmation.
• Complete kit: includes RS-232 cable and power supply for plug-and-play integration.

Technical details

• Scanner type: 2D Area Imager
• Connectivity: Corded RS-232
• Decoding capabilities: 1D, 2D, Postal Codes, Digimarc Barcodes
• Ruggedness: IP65, 2.5 m drop to concrete
• Light source: White LED illumination, Red LED aiming
• Minimum resolution: 1D 2.5 mil, 2D 4 mil
• Operating temperature: -20 to 50 °C
• ESD protection: 16 kV air, 8 kV contact
• Colour: Yellow/Black
• Kit contents: Scanner, RS-232 cable, power supply

Our verdict

For demanding industrial applications, the PowerScan PD9630-SR offers a perfect blend of ruggedness, speed, and versatility. Its high-resolution imager and robust feedback system make it a reliable choice for any high-volume scanning operation.
