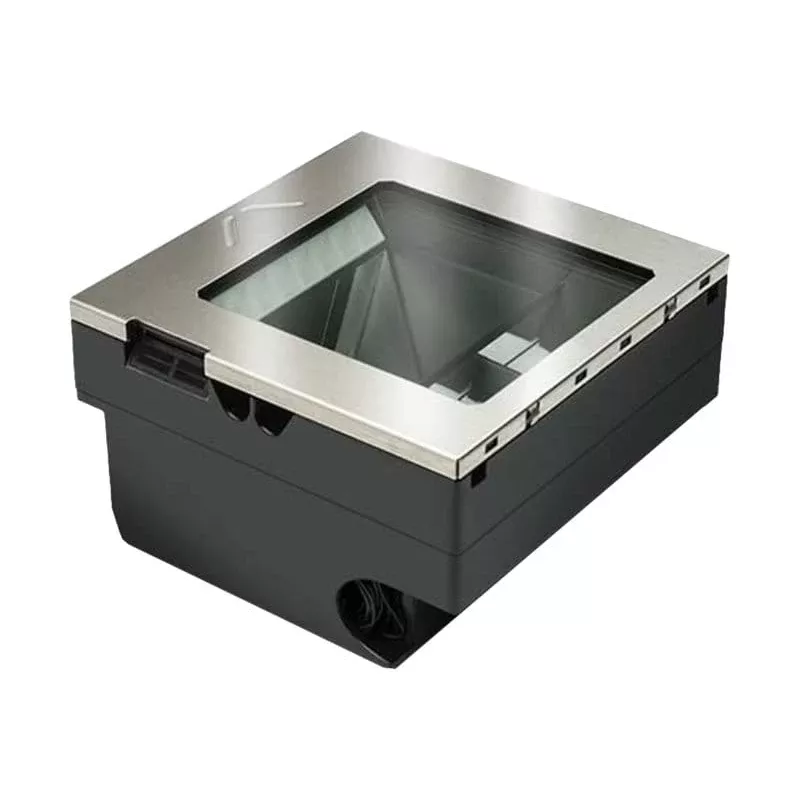

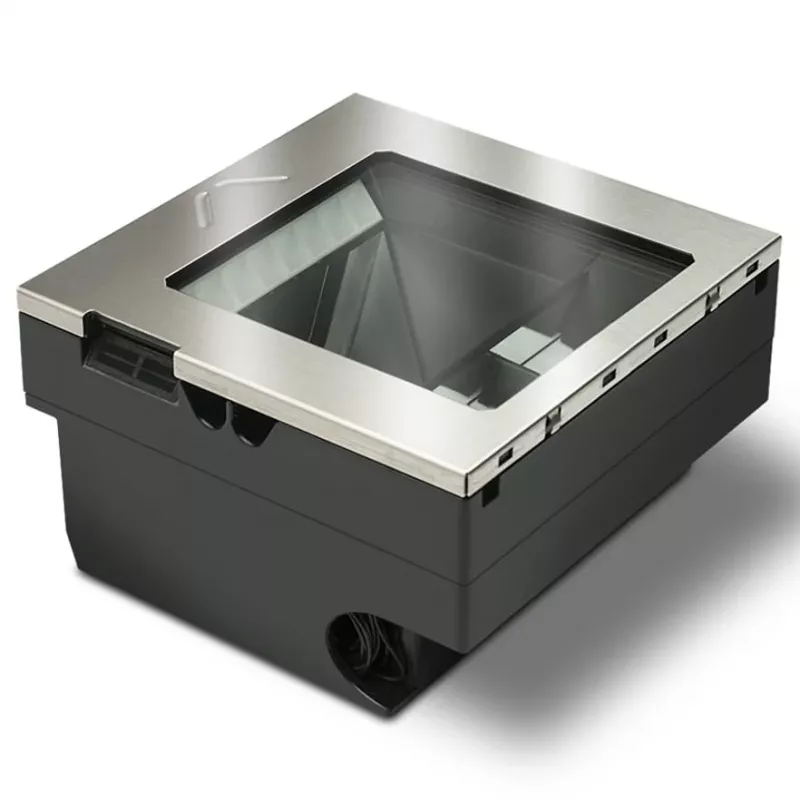

Datalogic Magellan 3510HSi - Barcode-Scanner (M3513-010210)

High-volume retail checkout lanes demand scanning technology that keeps pace with rapid transactions while reading every barcode—printed or digital—on the first pass. The Datalogic Magellan 3510HSi in-counter imager eliminates slowdowns at the point of sale with aggressive, omnidirectional scanning that captures 1D, 2D, and Digimarc barcodes from any angle, even from mobile screens. Its compact, flush-mount design integrates seamlessly into existing countertops, preserving precious workspace while delivering the performance cashiers and customers expect.

Who is it for

This scanner is engineered for grocery stores, convenience shops, specialty retail, and any high-traffic checkout environment where speed, reliability, and space efficiency are critical. It is ideal for businesses upgrading from laser scanners to imaging technology to support mobile coupons, loyalty apps, and digital wallets.

Main features

• In-counter imaging technology with smart illumination for superior reading of 1D, 2D, and Digimarc barcodes.
• Omnidirectional scanning—no need to orient items; reads barcodes from any angle.
• Multi-interface connectivity: USB HID Keyboard, USB COM, USB OEM, RS-232, IBM 468x/9x for easy integration.
• Datalogic Green Spot good-read indicator and audible beeper for instant confirmation.
• Rugged IP52-rated housing protects against dust and light water spray, ensuring long-term durability.
• Compact footprint fits standard counter cutouts, preserving valuable checkout space.

Specifications

• Scanner type: In-counter imager
• Decoding capability: 1D, 2D, Digimarc barcodes
• Light source: Multiple red LEDs (625 nm)
• Image sensor: Megapixel
• Minimum print contrast: 25%
• Resolution: 5 mil (1D), 6.6 mil (2D)
• Host interfaces: USB HID Keyboard, USB COM, USB OEM, RS-232, IBM 468x/9x
• Input voltage: 5 VDC
• Operating temperature: 0 to 40 °C (32 to 104 °F)
• Storage temperature: -40 to 70 °C (-40 to 158 °F)
• Humidity: 5 - 95% non-condensing
• IP rating: IP52
• Product colour: Black

Tips

For optimal performance, ensure the scanner is installed flush with the counter surface and keep the scan window clean using a soft, lint-free cloth. The Magellan 3510HSi works out of the box with most POS systems via USB HID keyboard emulation—no special drivers required. To read barcodes from smartphone screens, enable mobile mode in your POS software and reduce screen brightness if needed.
