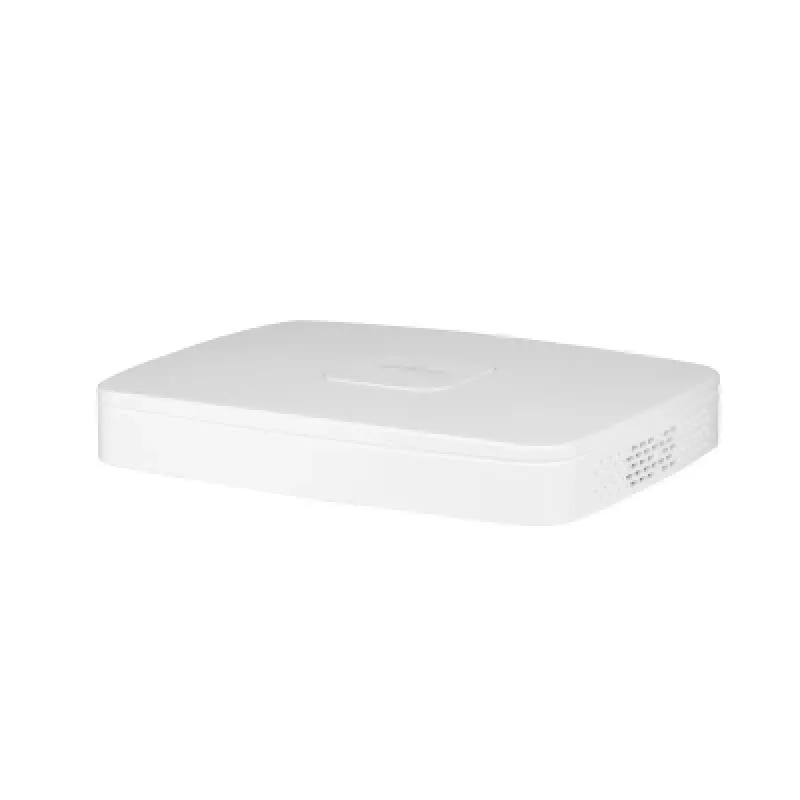

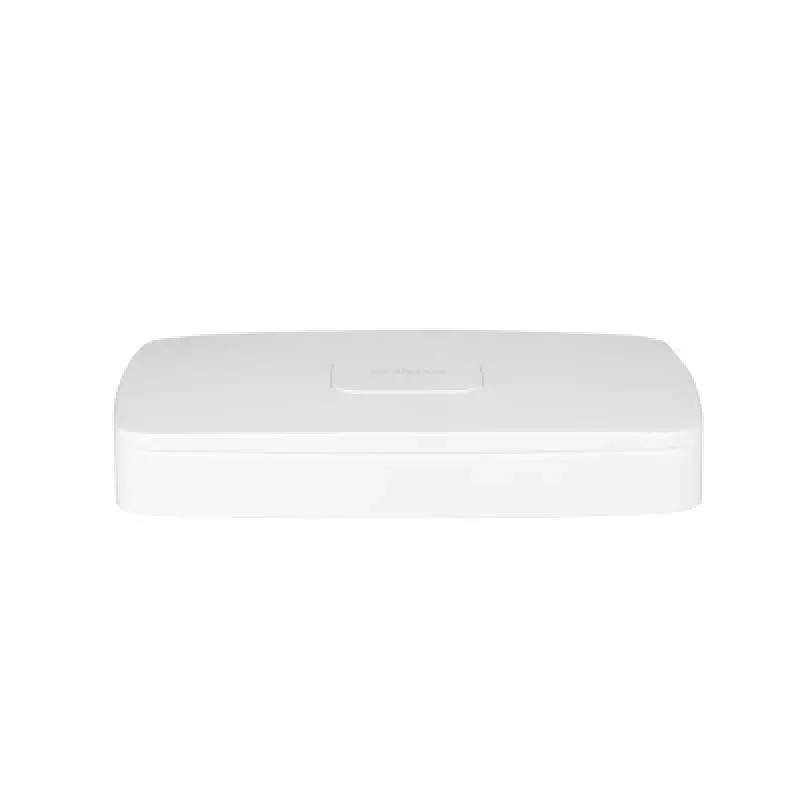

Dahua Technology XVR5104C-4KL-I3 White

Dahua Technology XVR5104C-4KL-I3 White
Dahua Technology XVR5104C-4KL-I3 White
Dahua Technology XVR5104C-4KL-I3 White
Dahua Technology XVR5104C-4KL-I3 White
R4,339
Dahua Technology XVR5104C-4KL-I3, White, H.264, H.264+, H.265, H.265+, 4 channels, NTSC, PAL, Embedded LINUX, 2-way Dahua Technology XVR5104C-4KL-I3. Product colour: White, Video compression formats: H.264, H.264+, H.265, H.265+, Channels quantity: 4 channels. Video input channels: 4 channels, Audi... Read More
Stock Out Of StockNo Stock Code 2407657 Brand DAHUA Model DH-XVR5104C-4KL-I3 Warranty 2 Years

Shipping & Returns

Dahua Technology XVR5104C-4KL-I3, White, H.264, H.264+, H.265, H.265+, 4 channels, NTSC, PAL, Embedded LINUX, 2-way

Dahua Technology XVR5104C-4KL-I3. Product colour: White, Video compression formats: H.264, H.264+, H.265, H.265+, Channels quantity: 4 channels. Video input channels: 4 channels, Audio input: RCA, Audio output: RCA. Ethernet interface type: Fast Ethernet, Supported network protocols: HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P. HDD interface: SATA III, Maximum HDD capacity: 1 TB. DC voltage: 12 V, Power consumption (typical): 10 W

Key Highlights
  • H.265+/H.265 dual-stream video compression
  • Supports all-channels AI Coding
  • Supports HDCVI/AHD/TVI/CVBS/IP video inputs
  • Max 8 channels IP camera inputs, each channel up to 8MP; Max 64 Mbps incoming bandwidth
  • Up to 4 channels video stream (analog channel) Perimeter Protection
  • Up to 4 channels video stream (analog channel) SMD Plus
  • Up to 1 channel video stream (analog channel) human face recognition
  • IoT & POS functionalities
  • Channels quantity: 4 channels
  • Video motion detection
  • Ethernet LAN
  • HDD interface: SATA III 1 TB
  • Built-in processor
  • White
Specifications
Analog signal format system
NTSC, PAL
Audio input
RCA
Audio input channels
1 channels
Audio output
RCA
Audio output channels
1.0 channels
Audio system
2-way
Backup function
Yes
Bit rate
6144 Kbit/s
Built-in processor
Yes
Certification
FCC: Part 15 Subpart B CE: CE-LVD: EN 60950-1/IEC 60950-1 CE-EMC: EN 61000-3-2; EN 61000-3-3; EN 55032; EN50130; EN 55024
Channels quantity
4 channels
DC voltage
12 V
Depth
210.9 mm
Ethernet interface type
Fast Ethernet
Ethernet LAN
Yes
Ethernet LAN (RJ-45) ports
1
HDD interface
SATA III
HDMI ports quantity
1
Height
45.6 mm
Maximum HDD capacity
1 TB
Operating relative humidity (H-H)
0 - 90%
Operating system installed
Embedded LINUX
Operating temperature (T-T)
-10 - 55 °C
Package depth
261 mm
Package height
96 mm
Package weight
1.07 kg
Package width
364 mm
Power consumption (typical)
10 W
Product colour
White
Rack capacity
1U
Supported network protocols
HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
USB 2.0 ports quantity
2
VGA (D-Sub) output ports
1
Video compression formats
H.264, H.264+, H.265, H.265+
Video input channels
4 channels
Video motion detection
Yes
Weight
530 g
Width
204.6 mm

Leaflet

Open Leaflet

Manual

Open Manual

Manual

Open Manual

Document

Open Document
