DVR 8CH HDCVI PENTABRID/XVR1B08-I/T DAHUA

DAHUA XVR1B08-I/T is an 8-channel Penta-brid digital video recorder for mixed analog and IP surveillance systems. The compact 1U unit supports HDCVI, AHD, TVI, CVBS and IP inputs, accepts up to 10-channel IP cameras (each up to 6 MP) with 40 Mbps incoming bandwidth, and stores footage on a single SATA HDD (drive not included). It features smart H.265+/H.265 dual-stream compression and is compatible with Dolynk cloud services (DMSS V2.0.1+/Dolynk Care V2.5.1+).

Advantages

The recorder offers five-format (Penta-brid) compatibility for flexible integration of existing analog cameras and new IP cameras, reducing upgrade costs. Onboard AI functions include 8-channel SMD Plus for human and vehicle filtering and AI Coding to save storage and bandwidth while preserving target details. Two-way talk over coaxial, Wi‑Fi camera access and common output interfaces (HDMI, VGA, BNC, RCA, USB, RJ45) provide versatile connectivity for small offices, shops and homes.

Suitable for

• Small office and retail stores requiring mixed analog/IP camera setups
• Home security systems with limited rack or shelf space
• Installations needing human/vehicle alarm filtering and efficient storage

Key specifications

• Model: XVR1B08-I/T
• Channels: 8-channel HDCVI/Penta-brid; up to 10-channel IP input (max 6 MP per channel)
• Video compression: Smart H.265+ / H.265 dual stream
• AI features: 8-channel SMD Plus, AI Coding
• Storage: 1 × SATA HDD (not included)

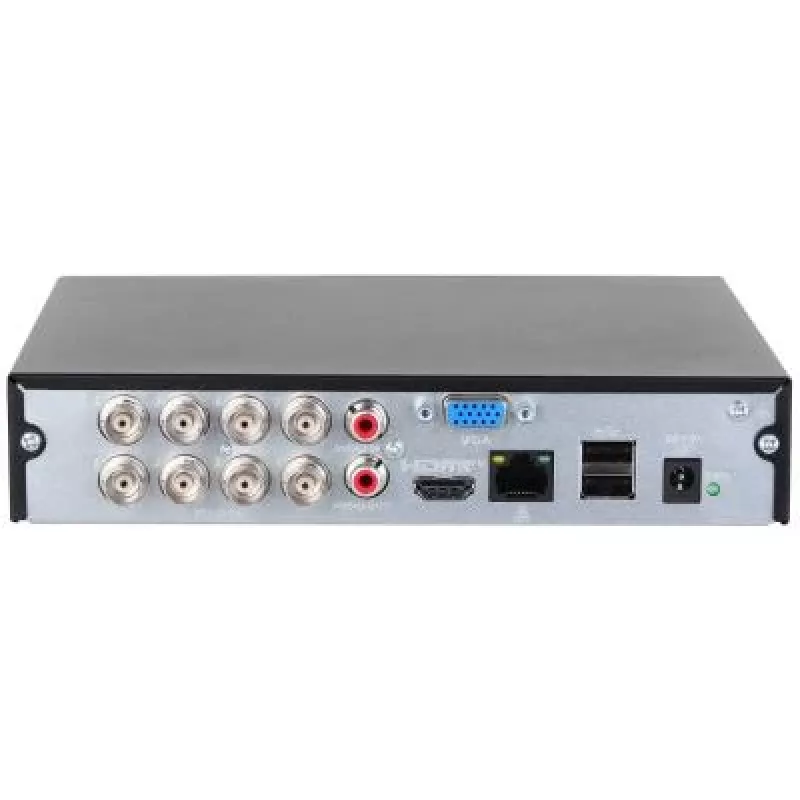

• Interfaces: 1 × HDMI, 1 × VGA, 1 × BNC, 2 × RCA, 2 × USB 2.0, 1 × RJ45
• Power: 12 VDC, 1.5 A
• Dimensions: 197.0 mm × 204.3 mm × 41.5 mm
• Weight (net): 0.57 kg

How to use

Install a compatible SATA HDD inside the unit, connect cameras using HDCVI/AHD/TVI/CVBS BNC connectors or network cameras via the RJ45 network port. For Wi‑Fi cameras, add them through the recorder’s network settings. Connect a monitor via HDMI or VGA for live view and local configuration, and attach a mouse to one of the USB ports to operate the on‑screen menu. Configure recording schedules, motion detection and AI alarm settings through the recorder’s interface or via supported cloud apps (DMSS V2.0.1+ / Dolynk Care V2.5.1+).

Recommendations

Use a surveillance-grade HDD of appropriate capacity and enable smart H.265+ and AI Coding to optimize storage. Keep firmware and the DMSS/Dolynk Care apps updated for best compatibility and security.
