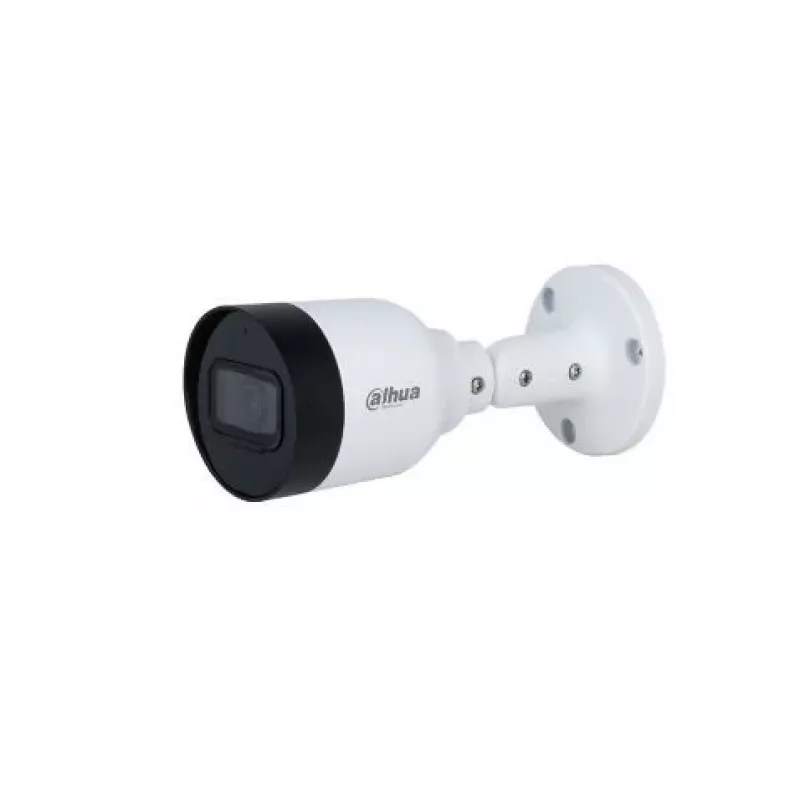

Dahua Technology IPC -HFW1530S-0280B-S6 security camera Bullet IP security camera Indoor & outdoor 2880 x 1620 pixels Ceiling/wall

The Dahua Technology IPC-HFW1530S-0280B-S6 is a 2880 x 1620 bullet IP security camera suitable for indoor and outdoor use. It offers a 106° field of view, up to 20 fps, a CMOS sensor with minimum illumination of 0.03 lx, and a 360° rotation capability for broad coverage. The camera supports wired Ethernet connection, motion detection and is rated for outdoor protection with an IP67 enclosure and wide voltage tolerance.

Advantages

This Dahua entry-series camera combines high-resolution imaging with efficient Smart H.265+ and Smart H.264+ encoding to reduce storage and transmission costs while maintaining video quality. Smart Illumination improves visibility in low-light or dark conditions by adjusting illumination intensity based on target distance. Built-in motion detection triggers recording or alarms when movement is detected. The device includes image flip for rotated installations and multiple cybersecurity features such as authentication, encrypted transmission and storage. IP67 protection and wide voltage tolerance make it suitable for unstable outdoor power conditions.

Suitable for

• Home and residential surveillance
• Small retail stores and small businesses
• Indoor and outdoor monitoring of entrances, parking areas and yards

Key specifications

• Model: IPC-HFW1530S-0280B-S6
• Resolution: 2880 x 1620
• Sensor: CMOS
• Field of view: 106°
• Frame rate: up to 20 fps
• Minimum illumination: 0.03 lx
• Connectivity: Wired Ethernet (no Wi‑Fi)
• Motion detection: Yes
• Mounting: Ceiling/Wall
• Protection: IP67; wide voltage tolerance
• Color: White; Weight: 0.32 kg

How to use

Mount the camera on a ceiling or wall using appropriate hardware, orienting it to cover the desired area. Connect the device to a PoE-enabled switch or provide power according to the installation manual, then connect to your network via Ethernet. Configure resolution, frame rate and Smart encoding settings in the Dahua management software or compatible NVR. Adjust Smart Illumination and motion detection sensitivity to match scene conditions. Use image flip if the camera is installed in rotated or narrow orientations.

Recommendations

Install the camera at a stable mounting point and ensure the lens is clean for optimal image quality. For outdoor use, seal cable entries and confirm the power supply meets the wide voltage tolerance. Tune motion detection and illumination settings on-site to reduce false alarms and maintain clear identification in low light.
