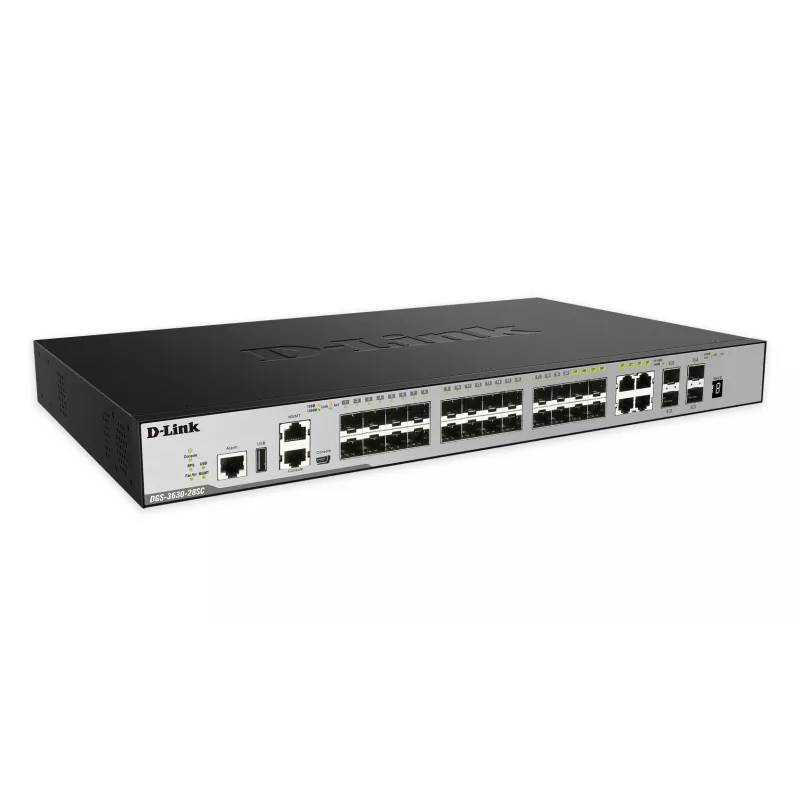

D-Link DGS-3630-28SC network switch Managed L3 1U Black

D-Link DGS-3630-28SC network switch Managed L3 1U Black
D-Link DGS-3630-28SC network switch Managed L3 1U Black
R46,614
The DGS-3630-28SC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 100/1000 SFP ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME f... Read More
Stock Out Of StockNo Stock Code 2580664 Brand D-LINK Model DGS-3630-28SC Warranty 2 Years

Shipping & Returns

The DGS-3630-28SC Layer 3 Stackable Managed Switch is designed for Small Medium Businesses (SMBs), Small Medium Enterprises (SMEs), larger Enterprises, and ISPs. It features 20 x 100/1000 SFP ports, 4 x 10/100/1000 or SFP combo ports, and 4 x 10GbE SFP+ ports. This switch supports core SMB and SME functionality, such as L2 switching, entry-level routing, L2 multicast, advanced QoS, OAM, and robust security features. With a simple upgrade it can also support full L3 routing for Enterprise integration, including OSPF, BGP, VRF-Lite and L3 multicast.
Key Highlights
  • Managed L3 Web-based management SNMP, NTPv3/v4, Telnet
  • Quality of Service (QoS) support
  • Console port: RJ-45/Mini-USB
  • 10G support 10BASE-T, 100BASE-TX, 1000BASE-T
  • MAC address table: 68000 entries Switching capacity: 128 Gbit/s
  • Access Control List (ACL)
  • 1U Rack mounting Stackable
  • Power supply included
Specifications
10G support
Yes
AC input frequency
50 - 60 Hz
AC input voltage
100 - 240 V
Access Control List (ACL)
Yes
ARP inspection
Yes
Authentication
Guest VLAN, Port-based authentication
BPDU filtering/protection
Yes
Broadcast storm control
Yes
Combo SFP ports quantity
4
Console port
RJ-45/Mini-USB
Copper ethernet cabling technology
10BASE-T, 100BASE-TX, 1000BASE-T
Depth
260 mm
DHCP features
DHCP server, DHCP client
Electromagnetic compatibility
CE, FCC Class A, C-Tick, VCCI, BSMI, CCC
Flow control support
Yes
Form factor
1U
Full duplex
Yes
Heat dissipation
217 BTU/h
Height
44 mm
IGMP snooping
Yes
Installed SFP modules quantity
20
Installed SFP+ modules quantity
4
Jumbo frames
12000
Jumbo frames support
Yes
LED indicators
Yes
Link aggregation
Yes
Loop protection
Yes
MAC address filtering
Yes
MAC address table
68000 entries
Management protocols
SNMP, NTPv3/v4, Telnet
Mean time between failures (MTBF)
280612 h
Multicast support
Yes
Networking standards
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1Qbb, IEEE 802.1ag, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ah, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Noise level
56 dB
Number of fans
2 fan(s)
Number of IP interfaces
256
Number of power supply units
1
Number of queues
8
Number of VLANs
4094
Operating relative humidity (H-H)
10 - 95%
Operating temperature (T-T)
-5 - 50 °C
Packet buffer memory
4 MB
Port mirroring
Yes
Power consumption (max)
63.6 W
Power over Ethernet (PoE)
No
Power supply included
Yes
Product colour
Black
Quality of Service (QoS) support
Yes
Rack mounting
Yes
Redundant power supply (RPS) support
Yes
Routing entries
16000
Safety
cUL, CB, CE, CCC, BSM
Security algorithms
802.1x RADIUS, SSH, SSH-2, SSL/TLS
Spanning tree protocol
Yes
SSH/SSL support
Yes
Stackable
Yes
Storage relative humidity (H-H)
5 - 95%
Storage temperature (T-T)
-40 - 70 °C
Supported network protocols
IPv4/v6
Switch layer
L3
Switch type
Managed
Switching capacity
128 Gbit/s
System event log
Yes
Throughput
95.24 Mpps
Traffic classification
Yes
USB 2.0 ports quantity
1
Virtual LAN features
Stacked VLAN, Private VLAN, Tagged VLAN, Port-based VLAN
Virtual stacking (units)
32
VLAN support
Yes
Web-based management
Yes
Weight
3.79 kg
Width
441 mm
