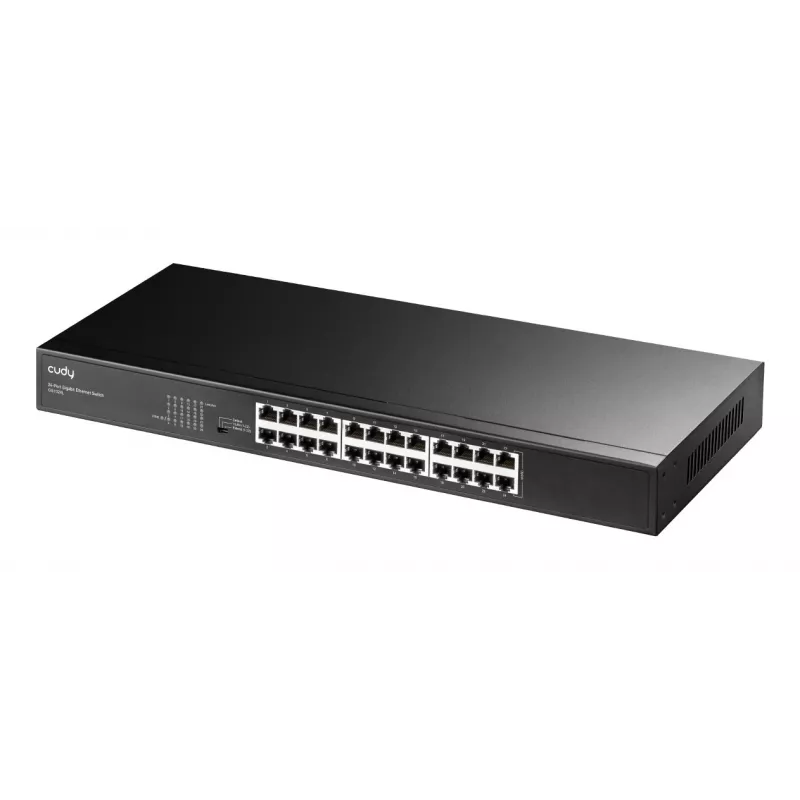

Cudy 24-port Rackmount Gigabit Ethernet Switch GS1024L

The Cudy 24-port Rackmount Gigabit Ethernet Switch GS1024L delivers 24 10/100/1000 Mbps RJ45 ports in a rack-friendly metal enclosure for wired LAN deployments. Designed for small to medium office and campus networks, this switch provides full-duplex Gigabit connectivity on each port, auto-negotiation, and plug-and-play operation to expand wired connections in server racks or network cabinets. The unit is intended to integrate with existing network infrastructure to distribute bandwidth to workstations, printers, access points and other wired devices.

Advantages

This rackmount switch offers a compact 24-port solution with full Gigabit throughput on every RJ45 interface and auto MDI/MDIX support to simplify cabling. Its metal chassis is suited for stable rack installation and passive cooling for quiet operation. The switch supports standard switching functions such as MAC address learning and frame forwarding to efficiently manage local LAN traffic while minimizing configuration complexity. With plug-and-play setup, it reduces deployment time in office or cabinet environments.

Suitable for

• Expanding wired connectivity in small to medium office networks
• Rack or cabinet installations in network rooms and server closets
• Connecting IP phones, wired access points, desktop PCs and printers
• Edge switching for campus buildings, retail locations, and branch offices

Key specifications

• Number of ports: 24 RJ45 ports supporting 10/100/1000 Mbps
• Port features: Auto-negotiation, full-duplex support, auto MDI/MDIX
• Form factor: 19-inch rackmount metal chassis
• Switching mode: Store-and-forward with MAC address learning and forwarding
• Power: Internal AC power supply designed for standard rack installations
• Cooling: Passive or low-noise ventilation suitable for office environments

How to use

Install the switch into a standard 19-inch rack or secure it in a network cabinet using the included rack ears or mounting kit. Connect each network device using standard Cat5e or Cat6 Ethernet cables to the RJ45 ports. The ports will perform auto-negotiation and auto MDI/MDIX, so no special cabling is required for straight-through or crossover connections. Connect the AC power cord to an appropriate power source; the switch will power on and begin forwarding Ethernet frames automatically. Monitor link and activity LEDs on the front panel to verify connections and traffic status.

Recommendations

For stable performance, use quality Cat5e or Cat6 cabling and keep the switch in a ventilated rack space to maintain optimal operating temperature. When deploying in networks with higher contention, place bandwidth-sensitive devices on dedicated ports or implement upstream traffic management on routers or managed aggregation switches.
