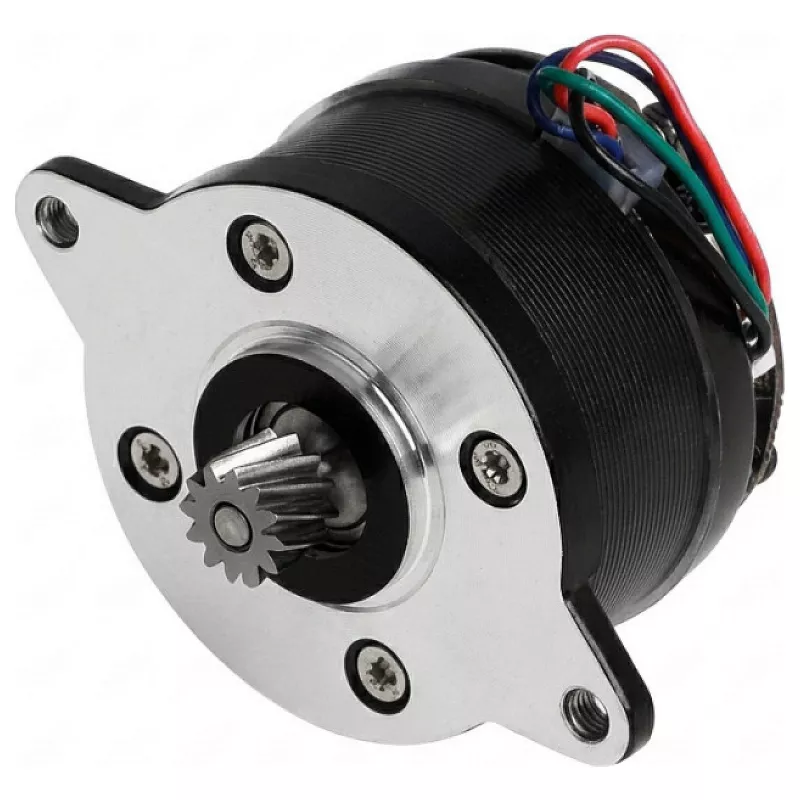

Creality K2 Plus Circular Extruder Motor - NEMA 17 Stepper Motor for 3D Printer

The Creality K2 Plus Circular Extruder Motor is a high-precision NEMA 17 bipolar stepper motor designed specifically for the Creality K2 Plus 3D printer. This motor ensures reliable and accurate filament extrusion in direct drive systems, delivering consistent print quality. With a compact 20mm body length and D-cut shaft, it integrates seamlessly into the extruder assembly.

Advantages

This motor offers precise step control with a 1.8° step angle and a holding torque of 0.13 Nm, ensuring smooth and accurate filament feeding. The JST-XH 4-pin connector and 1000mm cable simplify installation. Its robust construction and wide operating temperature range (-10°C to 50°C) guarantee long-term durability.

Suitable for

• Creality K2 Plus 3D Printer extruder drive system
• Direct drive extruder upgrades or replacements
• 3D printer repair and maintenance

Key specifications

• Motor Type: Bipolar Stepper Motor
• Frame Size: NEMA 17 (42x42mm)
• Step Angle: 1.8°
• Rated Voltage: 3.6V
• Rated Current: 1.0A
• Holding Torque: 0.13 Nm
• Body Length: 20mm
• Shaft Diameter: 5mm (D-cut)
• Cable Length: 1000mm
• Connector: JST-XH 4-pin

Recommendations

For optimal performance, ensure compatibility with your Creality K2 Plus printer. This motor is a direct replacement part; no additional modifications are required. Always power off the printer before installation.
