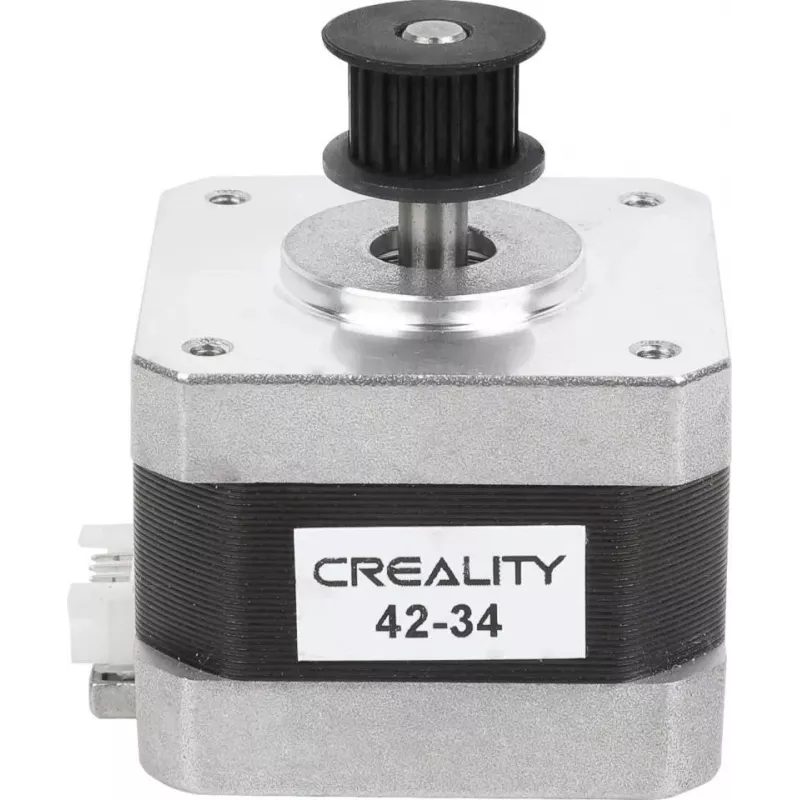

Creality Ender-3 V3 SE X-Axis Stepper Motor (NEMA 17, 1.8°, 4-Wire, JST-XH)

The Creality Ender-3 V3 SE X-Axis Stepper Motor (3204120188) is a genuine replacement part designed specifically for the Creality Ender-3 V3 SE 3D printer. This NEMA 17 stepper motor ensures precise and reliable movement along the X-axis, delivering consistent print quality. Built with a 2-phase design and a step angle of 1.8°, it provides smooth and accurate positioning. The motor features a D-cut shaft with a 5mm diameter and a 4-wire connection with a JST-XH 4-pin connector for easy installation.

Advantages

This stepper motor offers high holding torque of 0.42 Nm, ensuring stable and precise movements. Its rated voltage of 3.6V DC and current of 1.5A per phase make it compatible with the Ender-3 V3 SE control board. The motor operates within a wide temperature range of -10°C to 50°C and features Class B insulation (130°C) for enhanced durability. The D-cut shaft prevents slippage, and the compact NEMA 17 frame size fits seamlessly into the printer's X-axis assembly.

Suitable for

• Creality Ender-3 V3 SE 3D printers
• Replacement of faulty or worn-out X-axis stepper motors
• Upgrading or repairing the X-axis motion system

Key specifications

• Motor Type: NEMA 17
• Compatible Axis: X-Axis
• Step Angle: 1.8°
• Number of Phases: 2-Phase
• Rated Voltage: 3.6V DC
• Rated Current: 1.5A / Phase
• Holding Torque: 0.42 Nm (42 N.cm)
• Phase Resistance: 2.4 Ω ± 10%
• Phase Inductance: 2.8 mH ± 20%
• Shaft Diameter: 5mm
• Shaft Type: D-Cut
• Number of Leads: 4-Wire
• Connector Type: JST-XH 4-Pin
• Insulation Class: Class B (130°C)
• Operating Temperature: -10°C to 50°C
• Rotor Inertia: 54 g.cm²

Recommendations

For optimal performance, ensure the motor is correctly connected to the X-axis driver on the mainboard. Use the original mounting screws and verify the wiring polarity. If replacing an existing motor, note the cable routing to avoid interference with moving parts.
