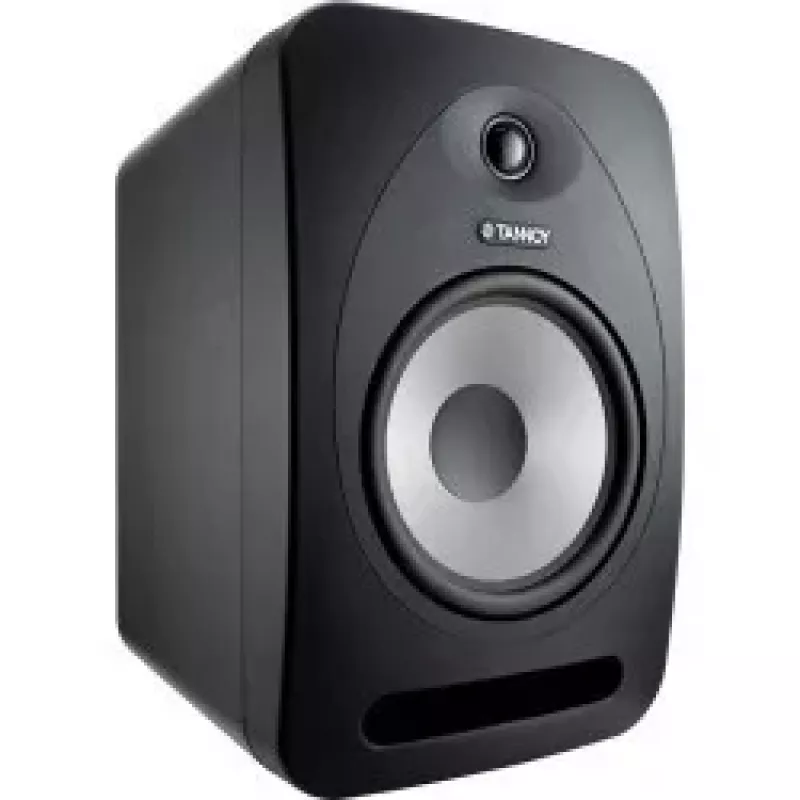

Tannoy REVEAL 802 Studio Monitor

The Tannoy REVEAL 802 is a professional active studio monitor designed for accurate sound reproduction in recording, mixing, and mastering environments. Featuring a 2-way bi-amplified design with an 8-inch woofer and 1-inch soft dome tweeter, it delivers a total power output of 100 watts, ensuring clear and detailed audio across a wide frequency range.

Advantages

Bi-amplified Class AB amplification provides dedicated power to each driver, minimizing distortion and improving transient response. The front-ported bass reflex enclosure allows flexible placement near walls without compromising low-end performance. HF trim and room EQ controls enable precise adjustment to suit different acoustic environments.

Suitable for

• Professional recording studios
• Home studios
• Broadcast and post-production
• Critical listening and mixing

Key specifications

• Type: Active Studio Monitor
• Configuration: 2-way
• Low-Frequency Driver: 8-inch custom high-efficiency woofer
• High-Frequency Driver: 1-inch soft dome tweeter
• Amplifier Type: Bi-amplified (Class AB)
• Total Power Output: 100 Watts (LF: 75W, HF: 25W)
• Frequency Response: 42 Hz - 43 kHz
• Max SPL: 114 dB (peak)
• Crossover Frequency: 2.8 kHz
• Input Connectors: 1x XLR (balanced), 1x 1/4" TRS (balanced), 1x 3.5mm mini-jack (unbalanced)
• Input Impedance: 20 kOhm (balanced), 10 kOhm (unbalanced)
• Enclosure Type: Front-ported Bass Reflex
• Enclosure Material: MDF
• HF Trim Control: -1.5 dB, 0 dB, +1.5 dB
• Room EQ Control: Flat, -2 dB, -4 dB
• Power Supply: 100-240V AC, 50/60 Hz
• Link Connectivity: 3.5mm mini-jack for daisy-chaining

Recommendations

The Tannoy REVEAL 802 is an excellent choice for engineers seeking accurate monitoring with flexible EQ options. Its robust build and reliable performance make it a staple in professional studios.
