CPU cooler Noctua NH-D9L, 92 mm fan, 95×95×110 mm heatsink, 2000 RPM, 78.9 m³/h airflow, compatible with AM4/AM5/LGA115x/LGA1200/LGA1700

The Noctua NH-D9L is a compact dual-tower CPU cooler designed to provide quiet, efficient cooling while fitting systems with limited height. With a total height of 110 mm and a 95×95 mm footprint, it clears RAM and PCIe slots on Intel-based and most AMD-based ITX motherboards and is suitable for HTPC, small form-factor and 3U chassis. The package includes a premium NF-A9 92 mm PWM fan, the SecuFirm2™ multi-socket mounting system, NT-H1 thermal compound and optional support for a second NF-A9 fan.

Advantages

The NH-D9L combines a low overall height with a tower-style design that directs airflow parallel to the mainboard for better airflow efficiency in cases with front intake and rear exhaust. Its 95×95 mm footprint guarantees compatibility with tall memory modules and PCIe cards on mini-ITX boards. The supplied NF-A9 fan features PWM control and a Low-Noise Adaptor to reduce maximum speed, and the cooler supports an optional second fan for improved performance. The SecuFirm2™ mounting ensures secure, long-lasting contact across a wide range of Intel and AMD sockets, and Noctua’s NT-H1 thermal paste is included for reliable thermal transfer.

Suitable for

• Small form-factor (SFF) desktop builds
• Home theatre PCs (HTPC) with airflow parallel to the mainboard
• 3U rackmount systems where 110 mm height is required
• Mini-ITX systems requiring full RAM and PCIe compatibility

Key specifications

• Model: Noctua NH-D9L (MPN: NH-D9L, EAN: 4716123315582)
• Type: Dual-tower CPU cooler
• Fan diameter: 92 mm (NF-A9)
• Fan speed: 400–2000 RPM (PWM)
• Airflow: approx. 78.9 m³/h
• Height: 110 mm
• Footprint: 95 × 95 mm
• Supported sockets: Intel LGA1700, LGA1200, LGA115x, LGA1851; AMD AM4, AM5 (offset mounting bars included)

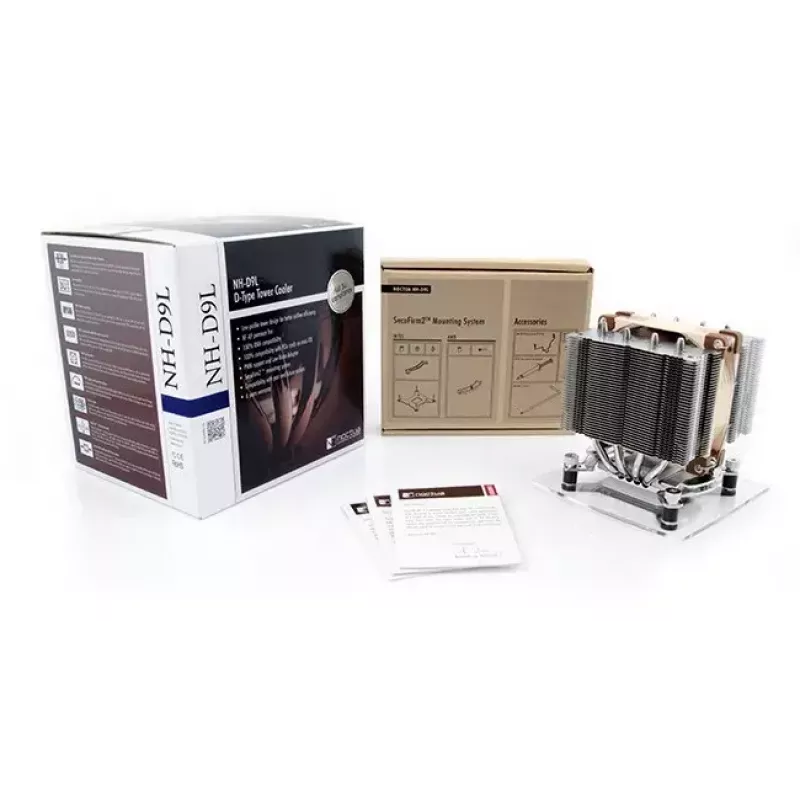

• Included accessories: NF-A9 PWM fan, Low-Noise Adaptor, SecuFirm2™ mounting, NT-H1 thermal compound, fan mounting clips
• Colour/finish: Metallic
• Weight: 0.531 kg

How to use

Install the SecuFirm2™ mounting hardware for your socket following the supplied instructions, apply a thin, even layer of NT-H1 thermal compound to the CPU heatspreader, and mount the NH-D9L so that the 95×95 mm base is centered over the socket. Connect the NF-A9 PWM fan to the CPU fan header on the motherboard; use the included Y-cable if fitting a second fan. If lower noise is desired, attach the Low-Noise Adaptor to limit the fan’s maximum speed.

Recommendations

For optimal results in AM5 systems, use the included offset mounting bars to shift the cooler 7 mm towards the socket’s south side to improve contact above the CCD(s). Ensure case airflow follows the same parallel path as the cooler (front intake, rear exhaust) to take advantage of the NH-D9L’s tower-style parallel airflow design.
