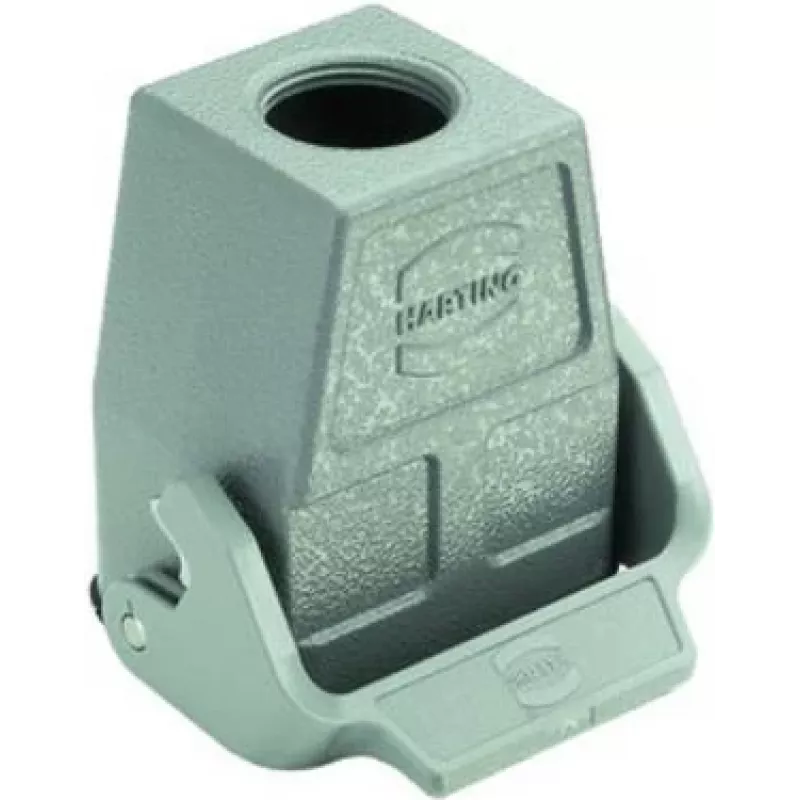

Coupling housing Harting 19300060756 IP65 16A for industrial connectors

Coupling housing Harting 19300060756 IP65 16A for industrial connectors is a robust enclosure designed to mate compatible connector inserts and provide environmental protection and mechanical support. The housing supports a current rating of 16 A and achieves IP65 ingress protection, making it suitable for industrial environments where dust exclusion and protection from low-pressure water jets are required. The design enables secure coupling between fixed and detachable connector parts and simplifies installation on panels and machinery.

Advantages

The housing offers a durable mechanical interface that maintains contact alignment and retention under vibration and mechanical stress while ensuring a sealed connection rated to IP65. Its compatibility with standard industrial connector inserts allows straightforward replacement or reconfiguration. The product’s construction supports reliable electrical continuity at 16 A and provides a compact footprint for integration into control cabinets, machine housings, or field junction points.

Suitable for

• Panel and enclosure feed-throughs in industrial control cabinets
• Machine-to-machine or machine-to-cable connections in production lines
• Field installations requiring dust protection and resistance to water jets
• Applications where secure mechanical coupling and easy maintenance are needed

Key specifications

• Ingress protection: IP65 (dust tight, protected against water jets)
• Rated current: 16 A
• Product type: coupling housing for industrial connectors
• Mounting: panel/machine mounting compatible design
• Environmental use: suitable for indoor and outdoor industrial environments with basic water exposure

How to use

Install the coupling housing by mounting it to the panel or machine frame using the appropriate cutout and fastening screws, ensuring the sealing surfaces are clean and free of debris. Insert the compatible connector insert into the housing until it locks into place, then align and mate the counterpart connector to achieve a secure mechanical coupling. Verify the connection integrity and that the seal compresses evenly to maintain IP65 protection. Follow standard electrical safety procedures when making or breaking live connections.

Recommendations

The housing is intended for use with compatible Harting-style connector inserts and should be used within the specified 16 A current rating and IP65 environmental limits; avoid prolonged immersion and do not exceed rated electrical or thermal loads.
