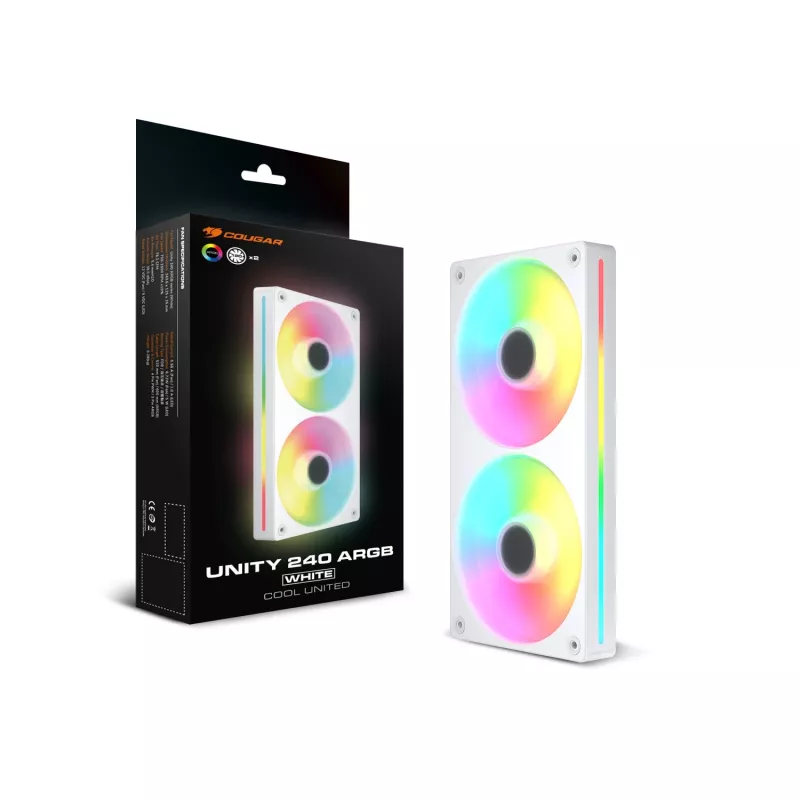

Fan COUGAR Unity240-FB 240mm ARGB PWM reversed single-frame, 120mm (700–1600 RPM), FDB, white

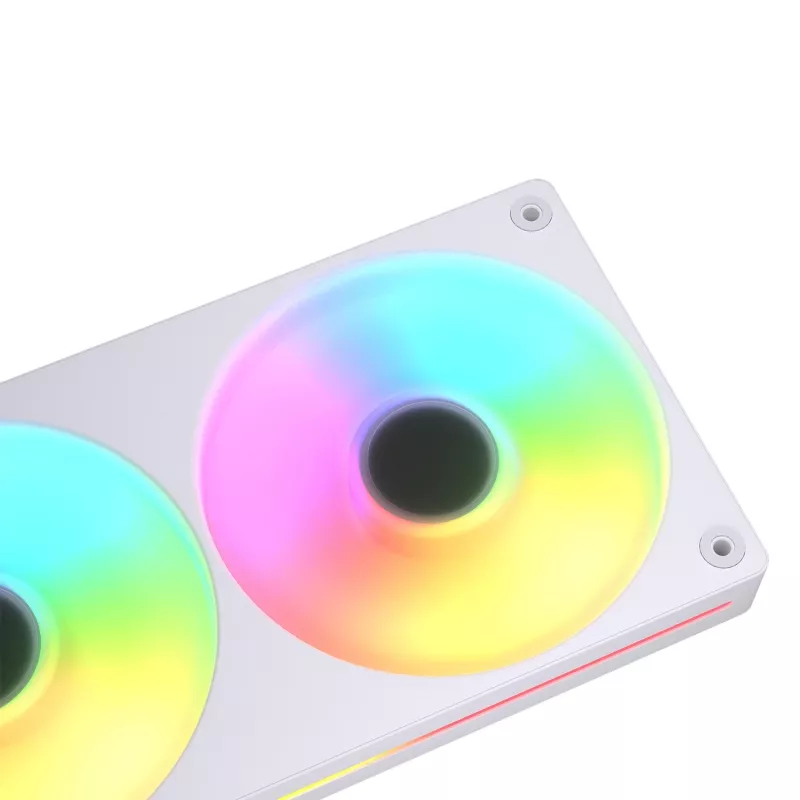

COUGAR Unity240-FB is a 240 mm single-frame reversed cooling fan unit designed for PC cases and radiators. The unit integrates two 120 mm fans into a single-frame assembly with ARGB side strips, PWM speed control ranging from 700 to 1600 RPM, Fluid Dynamic Bearing (FDB) for reduced noise and longer service life, and a white finish. Physical dimensions are 243.6 × 25 × 125 mm and the design provides increased air pressure for efficient cooling at moderate noise levels.

Advantages

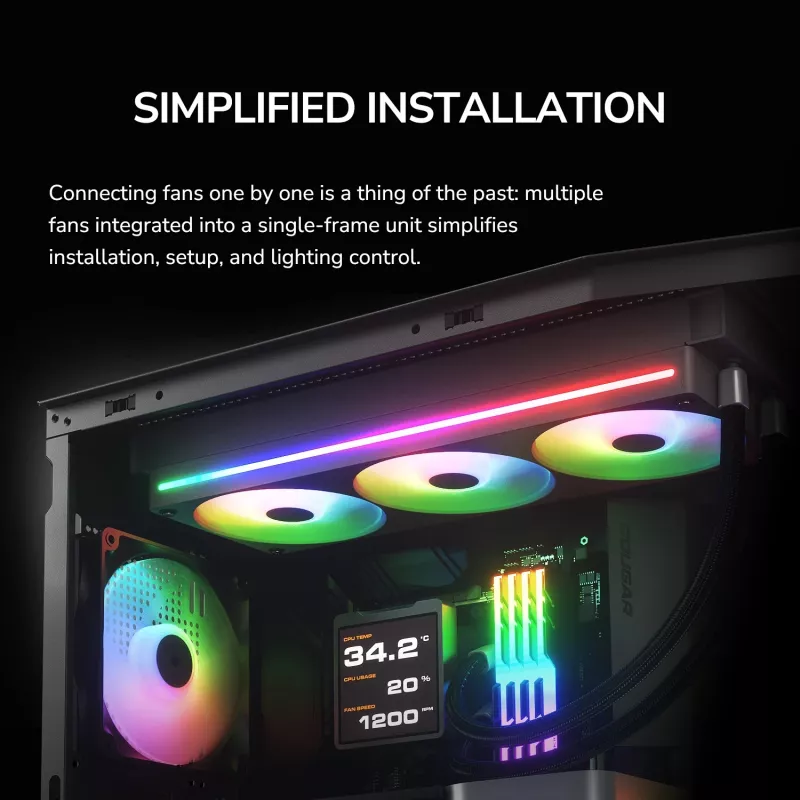

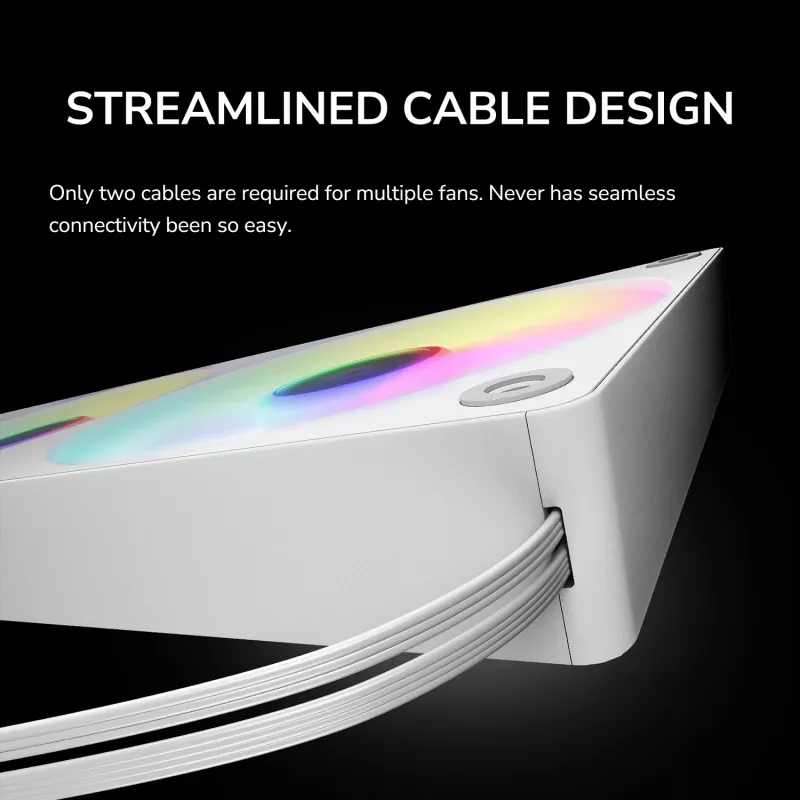

The integrated single-frame design simplifies installation and cable management by allowing multiple fans to connect and operate together while requiring only two cables. PWM control provides intelligent fan speed modulation based on temperature, balancing cooling performance and noise. ARGB side strips create uniform lighting that can be synchronized with motherboard software. Rubber shock-absorbent corners reduce vibration for near-silent operation and the Fluid Dynamic Bearing improves durability and quieter operation over time.

Suitable for

• Cooling PC cases where a compact 240 mm fan assembly is needed
• Use on 240 mm radiators in liquid-cooling loops
• Systems requiring ARGB lighting synchronized with motherboard software
• Builds that prioritize quieter operation and reduced vibration

Key specifications

• Fan configuration: 240 mm single-frame assembly with two 120 mm fans
• Fan diameter: 120 mm
• Speed range: 700–1600 RPM (PWM)
• Maximum airflow: 49.01 CFM
• Maximum static pressure: 2.31 mmH2O
• Bearing type: Fluid Dynamic Bearing (FDB)

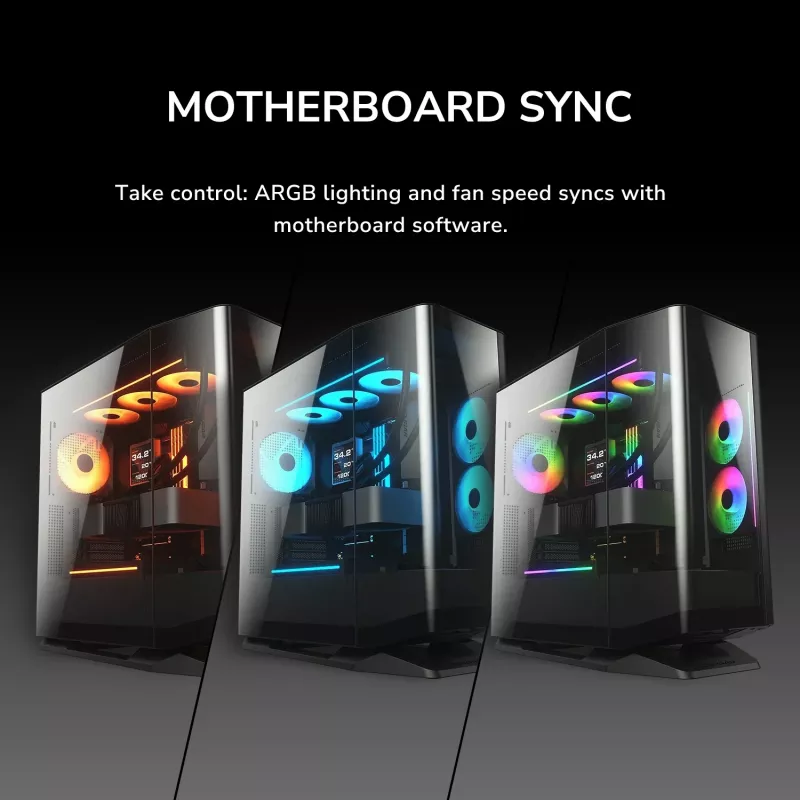

• Lighting: ARGB side strips, motherboard synchronization supported

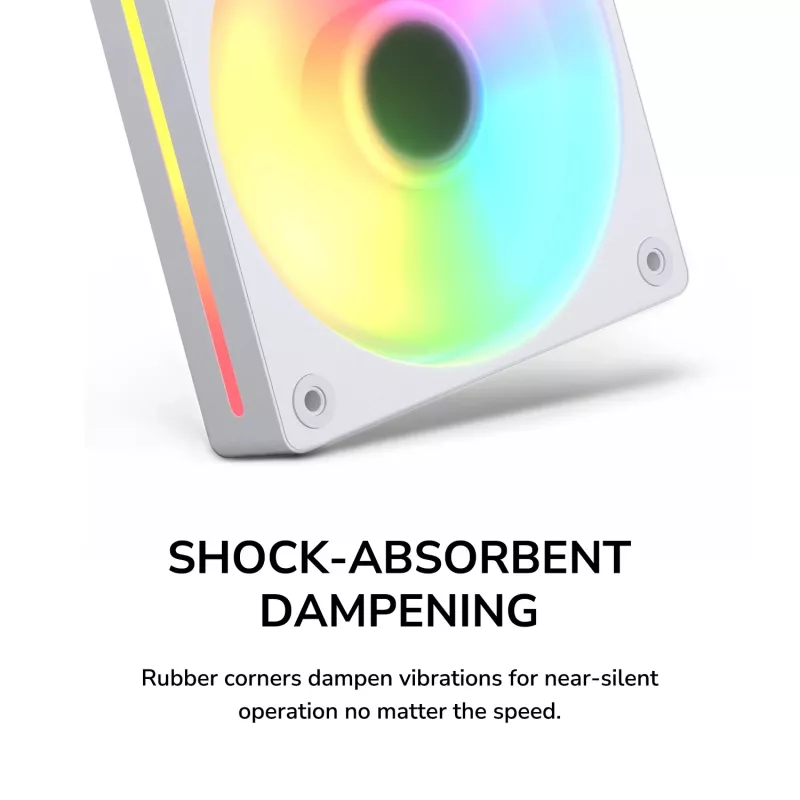

• Noise-reduction: rubber shock-absorbent corners
• Color: White
• Dimensions: 243.6 × 25 × 125 mm

How to use

Install the Unity240-FB assembly into a compatible 240 mm mounting space in the PC case or onto a 240 mm radiator following the case or radiator mounting holes. Connect the PWM fan cable to a motherboard fan header that supports PWM control to enable automatic speed adjustment. Connect the ARGB cable to an addressable RGB header or controller to enable lighting and synchronization. Ensure the unit is secured with screws through the provided mounting holes and that cables are routed to avoid obstructing airflow.

Recommendations

For optimal cooling and quiet operation, enable PWM fan control in the motherboard BIOS or software and use the motherboard ARGB software to synchronize lighting. Periodically check and clean dust from the fan blades and ARGB strips to maintain performance and lighting quality.
