Cooling System DeLOCK 18283

The DeLOCK 18283 cooling system is an aluminum heat sink with a black finish designed to dissipate heat from M.2 modules. Measuring 22 mm x 70 mm x 10 mm, it is compact and intended to improve thermal performance and prolong component life. The heat sink is supplied with self-adhesive thermal pads for easy attachment directly to the M.2 module.

Advantages

The heat sink is made of durable aluminum for effective heat transfer and comes in a slim, low-profile design that fits most M.2 modules. The included self-adhesive thermal pads simplify installation and ensure good thermal contact between the heat sink and the module.

Suitable for

• Cooling M.2 NVMe or SATA SSD modules
• Compact desktop and small-form-factor PC builds
• Upgrading thermal management of motherboard M.2 slots

Key specifications

• Brand: DELOCK
• Model / MPN: 18283
• EAN: 4043619182831
• Material: Aluminum
• Finish: Black
• Dimensions (W x D x H): 22 mm x 70 mm x 10 mm
• Includes: Self-adhesive thermal pads

How to use

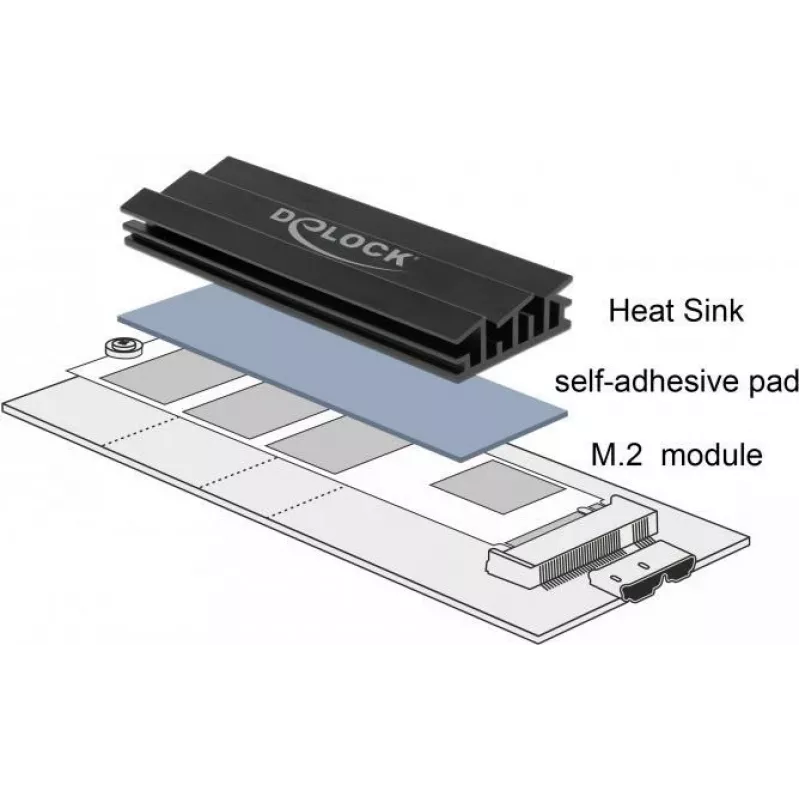

Clean the M.2 module surface to remove dust and oils. Peel off the protective film from the supplied self-adhesive thermal pads and apply them to the top surface of the M.2 module. Align the DeLOCK 18283 heat sink over the pads and press gently to ensure contact. Reinstall the M.2 module in the system and verify adequate clearance within the case or under any expansion cards.

Recommendations

Verify compatibility with your M.2 module size and system layout before installation. Ensure the adhesive pads make full contact and replace pads if they lose adhesion after removal. When used in compact systems, check for potential interference with nearby components.
