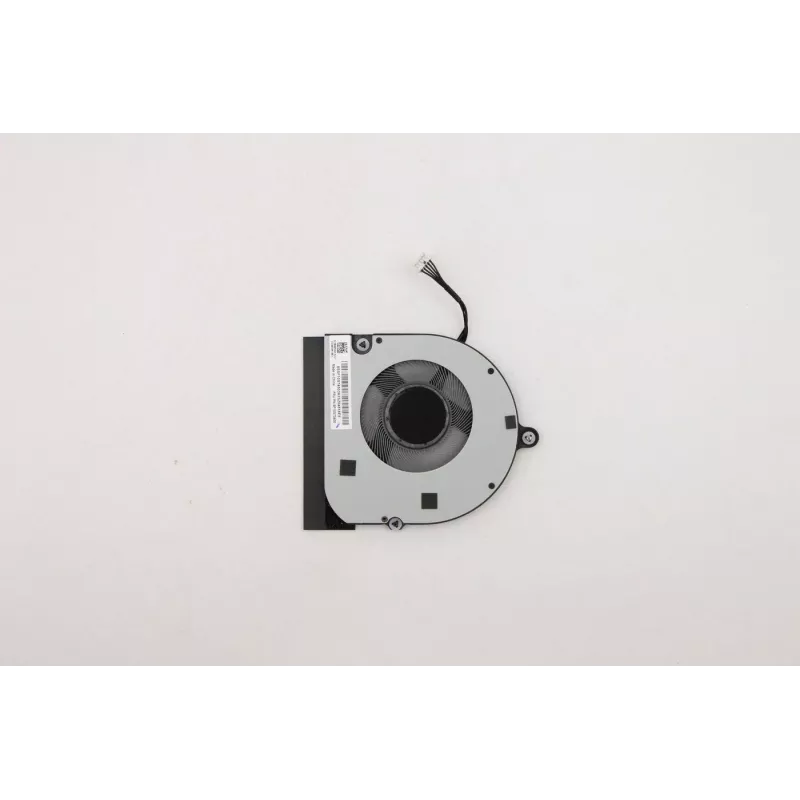

Cooling fan Lenovo Thor INTEL DC5V replacement for laptops and small devices, model 5F10Z58240

Replacement cooling fan Lenovo Thor INTEL DC5V, model 5F10Z58240, is a compact DC5V blower designed for laptop and small-device thermal systems. It restores airflow and cooling performance in compatible Lenovo systems and other devices that use the same mechanical fit and electrical parameters. The fan is intended for component-level repairs and service replacements where original-form cooling is required to reduce temperatures and maintain stable operation under load.

Advantages

This DC5V blower offers a compact form factor and connector compatibility that align with original Lenovo components, enabling straightforward replacement without extensive modification. The fan provides targeted airflow for heatsinks and ventilation channels to improve heat dissipation and reduce the risk of thermal throttling. Built for serviceability, it simplifies repair tasks and helps extend the usable life of the host device by restoring designed cooling performance.

Suitable for

• Laptop and notebook cooling system repairs
• Replacement in compact desktop or mini-PC devices using DC5V blower fans
• Service centers and technicians performing component-level maintenance
• Restoring thermal management after fan failure or damage

Key specifications

• Operating voltage: 5 V DC
• Fan type: blower (centrifugal) fan
• Form factor: compact, suited for laptop internal mounting
• Connector: board-level compatible connector matching original Lenovo wiring
• Intended airflow: targeted channel ventilation for heatsink and vent paths
• Use environment: designed for internal use within laptops and small enclosures

How to use

Before installation, power off the device, disconnect the battery if possible, and discharge static electricity. Access the internal fan location following the device manufacturer’s service manual or disassembly guide. Remove the faulty fan by disconnecting its power connector and unscrewing any mounting hardware, then install the replacement fan in the same orientation, secure it with the original screws, and reconnect the power cable. Reassemble the device, reconnect power, and verify fan operation and airflow during a controlled boot or stress test.

Recommendations

Use appropriate ESD protection when handling the fan assembly. Verify mechanical fit and connector pinout before powering the device. If unexpected noise or vibration occurs after installation, recheck mounting points and clear any obstructions in air channels. For sustained high-load usage, ensure vents remain unobstructed and consider periodic cleaning to maintain optimal airflow.
