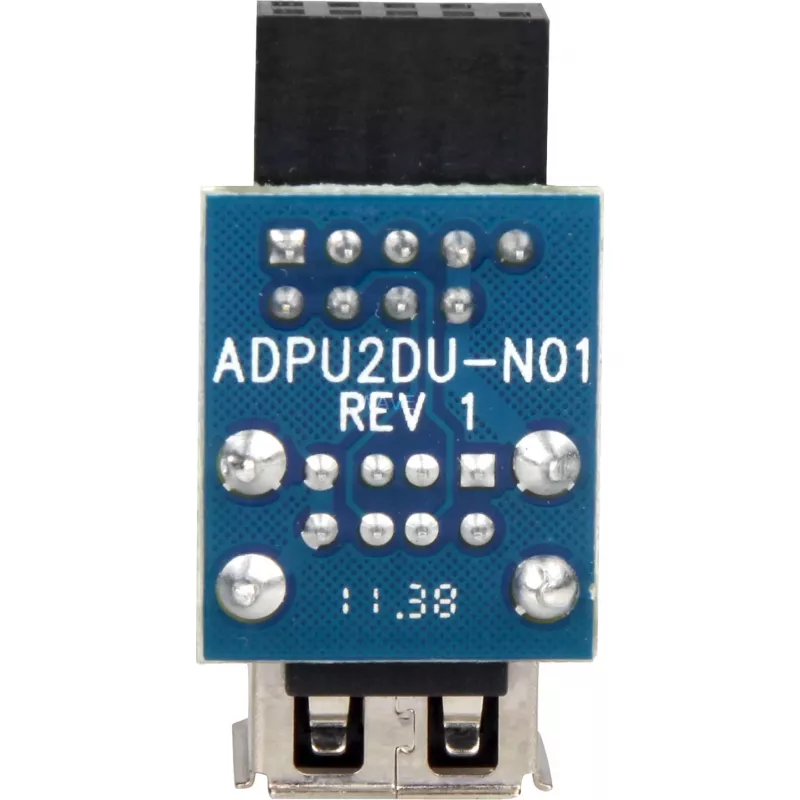

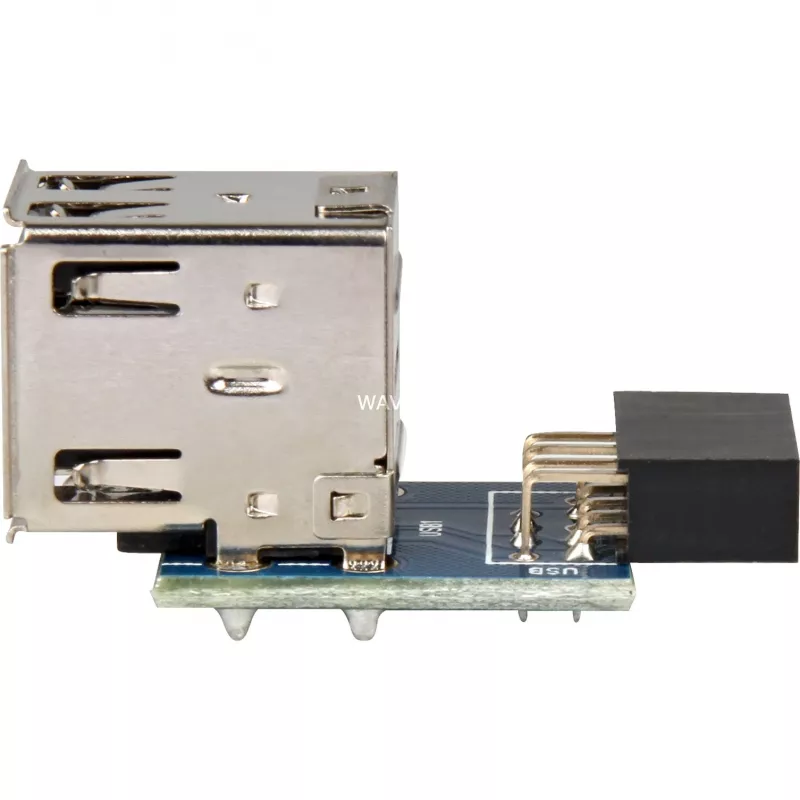

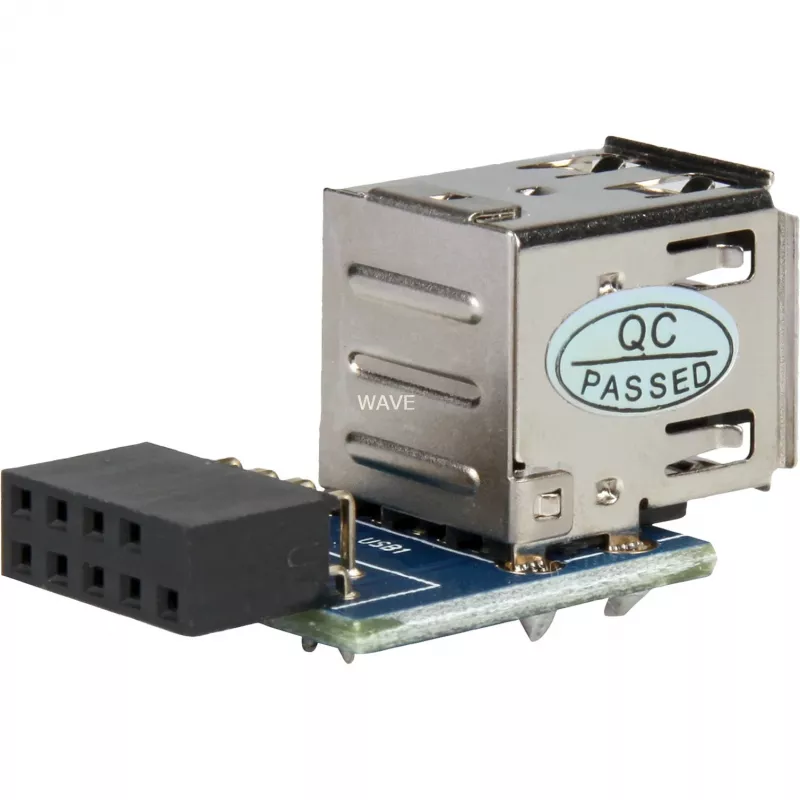

Connector DeLOCK 1 x 9-pin 2.54 mm/2 x USB 2.0-A 41825

This DeLOCK connector adapts a standard 1 x 9-pin 2.54 mm motherboard header to provide 2 internal USB 2.0 Type-A ports. It plugs into a free 9-pin USB header on the mainboard to expand the system with two stacked USB-A sockets for connecting devices such as USB flash drives or USB Wi‑Fi adapters. Available colours are black, blue and silver.

Advantages

The connector offers a compact, plug‑in solution to add two internal USB 2.0-A ports without additional cabling. It matches the common 9-pin 2.54 mm motherboard header specification and provides two upward‑aligned, stacked USB-A sockets for easy device insertion. No drivers are required; functionality depends on the motherboard’s USB controller.

Suitable for

• Adding internal USB-A ports for front-panel or chassis-mounted accessories
• Connecting USB flash drives or USB Wi‑Fi adapters inside a PC
• Expanding available internal USB connectors for embedded devices or custom builds

Key specifications

• Connector 1: 1 x 9-pin, 2.54 mm (motherboard header)
• Connector 2: 2 x USB 2.0-A (stacked, upward-aligned)
• Product colours: Black, Blue, Silver
• Brand: DELOCK
• MPN: 41825
• EAN: 4043619418251

How to use

Locate a free 9-pin USB header on the motherboard and align the connector’s 1 x 9-pin plug with the header pins, observing the correct pin orientation. Gently press the connector onto the header until it is fully seated. The two USB-A sockets will be available inside the case or at the chosen mounting location; connect USB devices as needed. Ensure the system is powered off or that you follow anti‑static precautions when installing inside the chassis.

Recommendations

Verify the motherboard manual to confirm the pinout and availability of an internal 9-pin USB header. Use the connector for USB 2.0 devices; for USB 3.x bandwidth or power requirements, consider solutions that support USB 3.0/3.1.
