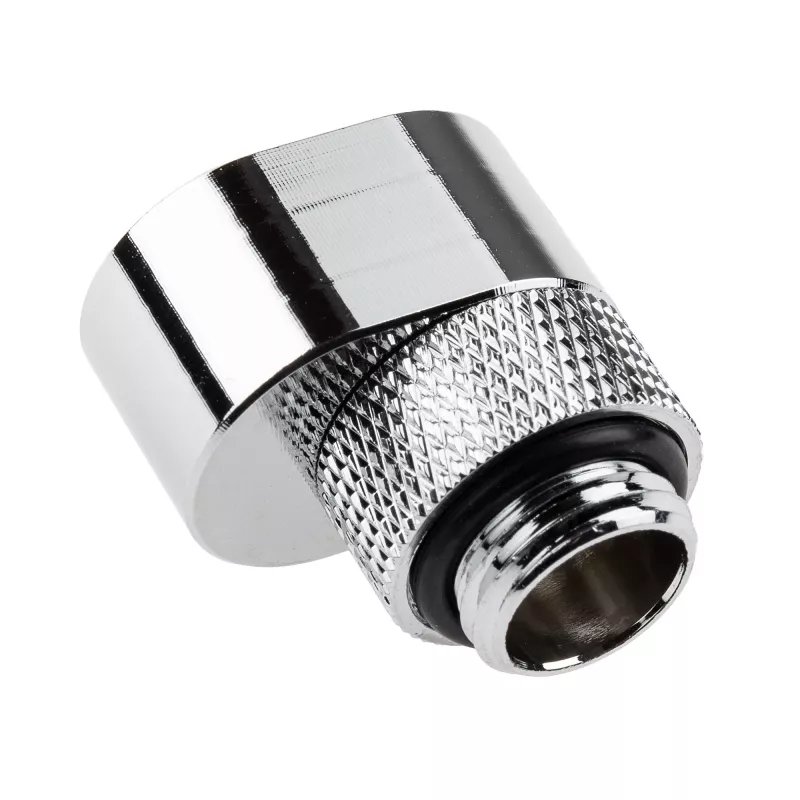

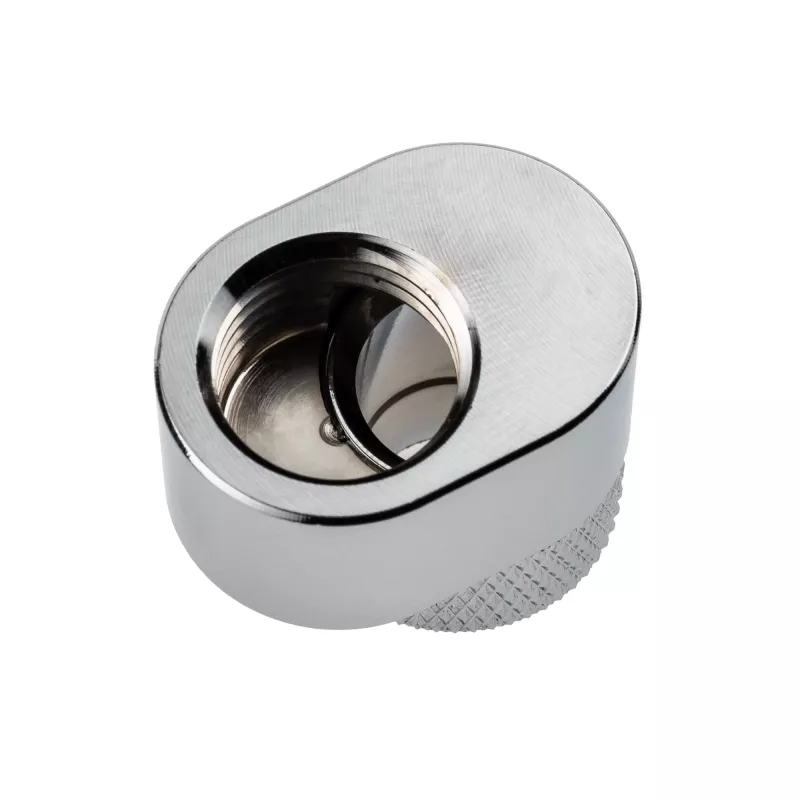

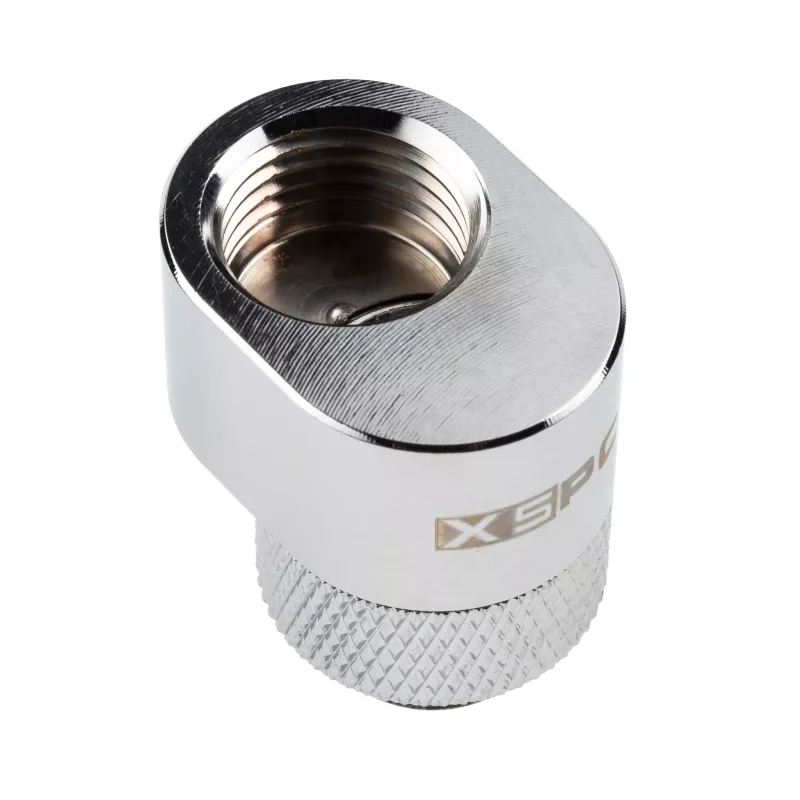

Compression rotary offset fitting XSPC G1/4 7mm offset, chrome

The XSPC Compression Rotary Offset Fitting G1/4 7mm in chrome is a compact swivel fitting designed for liquid cooling loops. It combines a G1/4 threaded connection with a 7 mm lateral offset and a rotatable head, allowing tight directional changes without twisting the tubing. The chrome finish provides a smooth surface that resists corrosion and matches metal or polished system components while keeping a low profile in confined installations.

Advantages

This rotary offset fitting enables secure compression connections for soft or hard tubing while permitting rotation to simplify assembly and alignment. The 7 mm offset creates a small lateral displacement useful for avoiding obstructions or aligning parallel runs, and the chrome plating produces a durable, easy-to-clean surface. Designed for liquid cooling use, the fitting provides a reliable seal when installed according to torque guidelines and helps maintain neat, space-efficient tubing routes.

Suitable for

• PC water-cooling loops with limited clearance where small offsets are needed
• Custom liquid-cooling builds that require swivel fittings to prevent tube twisting
• Hardline or soft tubing installations needing a compact angled routing solution
• Systems where chrome aesthetics are required to match other fittings and components

Key specifications

• Thread type: G1/4 compatible threaded connection
• Offset: 7 mm lateral displacement from thread centerline
• Function: Rotary/swivel head to allow angle adjustment without tube rotation
• Connection style: Compression fitting for secure tubing attachment
• Finish: Chrome plated surface
• Application: Designed for liquid cooling loops and related plumbing

How to use

Install the fitting by hand-threading into a G1/4 threaded port until properly seated, then tighten to the manufacturer-recommended torque to ensure a leak-free seal. Insert the tubing fully into the compression sleeve and secure by tightening the compression ring or nut according to the fitting design. Use the rotary function to orient the tubing as needed; the swivel head permits final alignment without rotating the entire fitting or twisting the tubing. Inspect connections visually and perform a pressure or leak test before normal system operation.

Recommendations

Use appropriate tools to avoid over-tightening metal fittings and follow coolant manufacturer guidelines to prevent galvanic corrosion. For best results, match tubing inner diameter to the compression fitting size, verify compatibility with coolants and additives, and perform an extended leak test after initial assembly.
