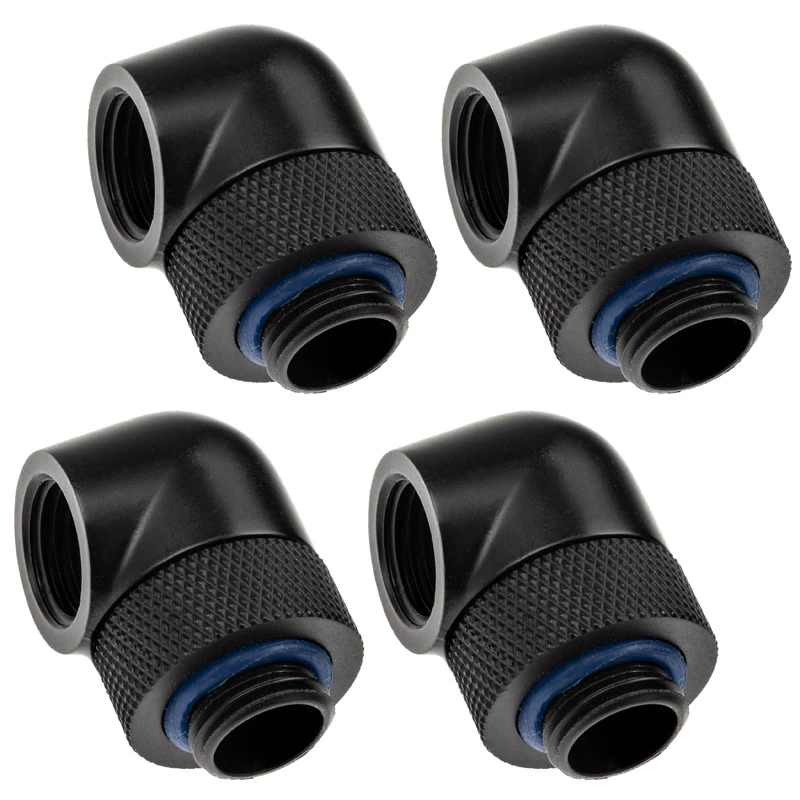

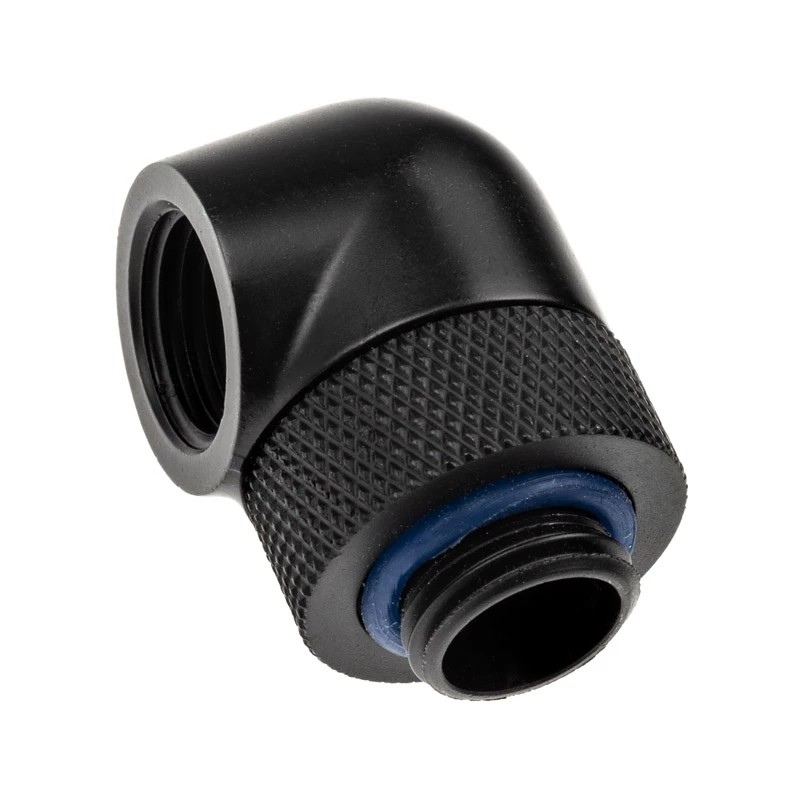

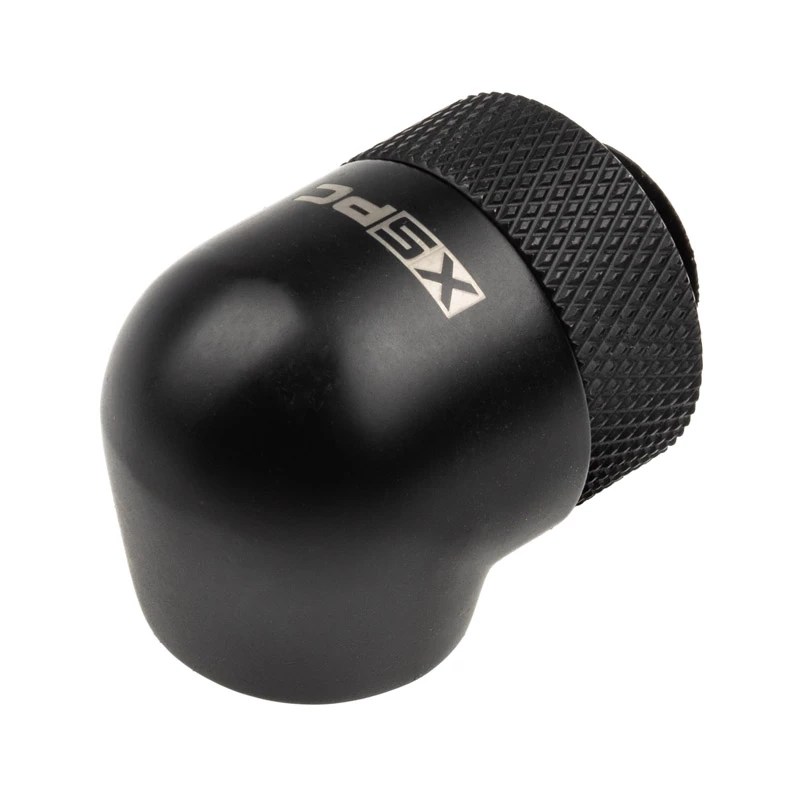

Adapter 90° G1/4 inch male to G1/4 inch female rotatable, XSPC, black, pack of 4

The XSPC 90° G1/4" male to G1/4" female rotatable adapter pack (4 pcs) provides compact right-angle connections for liquid-cooling loops and other fluid systems that use standard G1/4" threads. Each adapter converts a G1/4" male thread to a G1/4" female thread while allowing rotation at the joint, enabling precise orientation of fittings in tight or constrained installations. The adapters are finished in black to match common water-cooling hardware and help maintain a discreet, uniform appearance inside PC cases and custom cooling builds.

Advantages

The rotatable joint simplifies tubing routing by permitting angular adjustment without twisting hoses or reorienting connected components. Because each adapter converts between male and female G1/4" threads, it offers compatibility with a wide range of reservoirs, radiators, pumps, and fittings that adhere to the G1/4" standard. The compact 90° angle reduces the space required for connections, making these adapters useful where clearance is limited. The black finish provides corrosion-resistant appearance and coordinates with common cooling hardware finishes.

Suitable for

• PC water-cooling loops requiring tight-angle connections
• Tubing routing in cramped or compact PC cases
• Adapting incompatible orientations between G1/4" components
• Custom liquid-cooling projects and maintenance work

Key specifications

• Thread standard: G1/4" male to G1/4" female
• Angle: 90° right-angle connection
• Quantity: pack of 4 adapters
• Finish: black
• Feature: rotatable joint for adjustable orientation

How to use

Install the adapter by screwing the male G1/4" end into a compatible female thread on a cooling component, and attach the female G1/4" end to the mating male-threaded fitting. Hand-start threads to ensure correct alignment and then tighten with an appropriate tool until secure; avoid over-tightening. Use the rotatable joint to position the outlet at the desired angle before final tightening. Check for leaks after assembly and retighten slightly if necessary following the component manufacturer's torque guidance.

Recommendations

For reliable operation, use these adapters with components that conform to the G1/4" standard and inspect O-rings or sealing surfaces for damage before installation. When routing tubing in confined spaces, rotate the joint to minimize stress on hoses and maintain smooth flow paths. Periodically inspect connections for leaks and retighten as part of routine system maintenance.
