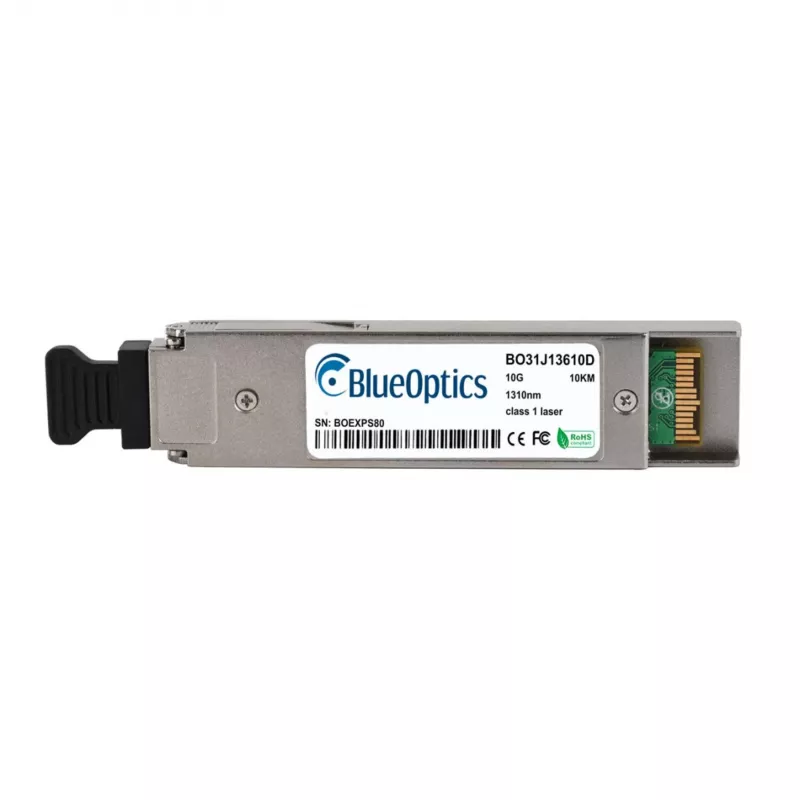

Compatible Ruckus 10G-XFP-LR BlueOptics BO31J13610D XFP Transceiver, LC Duplex, 10GBASE-LR, Single-mode, 10 km

The BlueOptics BO31J13610D is a high-performance XFP transceiver designed for 10 Gigabit Ethernet and Fibre Channel applications. It is fully compatible with Ruckus networking equipment and complies with MSA standards, ensuring seamless integration. This transceiver supports 10GBASE-LR protocol over single-mode fiber, delivering reliable connectivity up to 10 km.

Advantages

Cost-effective alternative to OEM modules without compromising performance. Hot-swappable design allows for easy installation and maintenance. Supports Digital Diagnostic Monitoring (DDM/DOM) for real-time monitoring of optical parameters. Low power consumption (< 2.5 W) helps reduce energy costs.

Suitable for

• 10 Gigabit Ethernet networks
• Fibre Channel storage area networks
• Data center interconnects
• Enterprise and service provider networks

Key specifications

• Form Factor: XFP
• Data Rate: 10 Gbps
• Protocol: 10GBASE-LR
• Connector Type: LC Duplex
• Fiber Type: Single-mode (SMF)
• Wavelength: 1310 nm
• Max Distance: 10 km
• DDM/DOM Support: Yes
• Compatibility: Ruckus (MSA Compliant)
• Hot-swappable: Yes
• Power Consumption: < 2.5 W
• Operating Temperature: 0°C to 70°C
• Compliance: MSA, RoHS, CE, FCC
• Transmitter Type: DFB Laser
• Receiver Type: PIN Photo Detector
• Voltage: 3.3 V

Recommendations

For optimal performance, use with single-mode fiber optic cables with LC connectors. Ensure proper handling and avoid bending fibers beyond their minimum bend radius.
