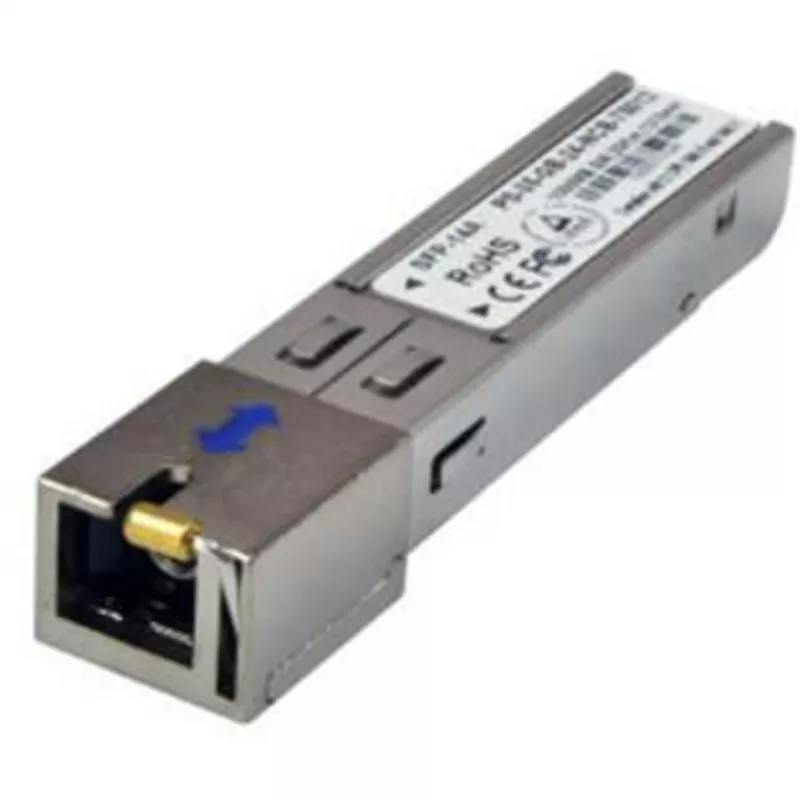

ComNet SFP-26B SFP Module - 100FX - 1550nm - Multimode - 1 Fiber - SC Connector - 2km - MSA Compliant

The ComNet SFP-26B is a high-performance SFP (Small Form-factor Pluggable) transceiver module designed for 100FX Fast Ethernet applications. Operating at a wavelength of 1550nm over multimode fiber, this module supports a single fiber connection with an SC connector, providing a reliable data link up to 2 kilometers. It is fully MSA compliant, ensuring interoperability with a wide range of networking equipment.

Advantages

This SFP module offers a cost-effective and flexible solution for extending network reach in fiber optic environments. Its hot-pluggable design allows for easy installation and replacement without disrupting network operations. The single-fiber operation reduces fiber infrastructure costs, making it ideal for point-to-point links.

Suitable for

• Fast Ethernet (100BASE-FX) networks requiring long-distance connectivity
• Industrial and enterprise network upgrades
• Fiber-to-the-desk or campus backbone applications
• MSA-compliant switches, routers, and media converters

Key specifications

• Data Rate: 100 Mbps (100FX)
• Wavelength: 1550nm
• Fiber Type: Multimode
• Connector: SC duplex (single fiber operation)
• Maximum Distance: 2 km
• Compliance: MSA, RoHS
• Hot-Plug Support: Yes
• Interface Type: SFP

Recommendations

For optimal performance, pair this module with a compatible SFP port that supports 100BASE-FX and single-fiber operation. Ensure the fiber patch cable is of appropriate type (multimode, 50/125µm or 62.5/125µm) and terminated with SC connectors. This module is not compatible with single-mode fiber or 1000BASE-X standards.
