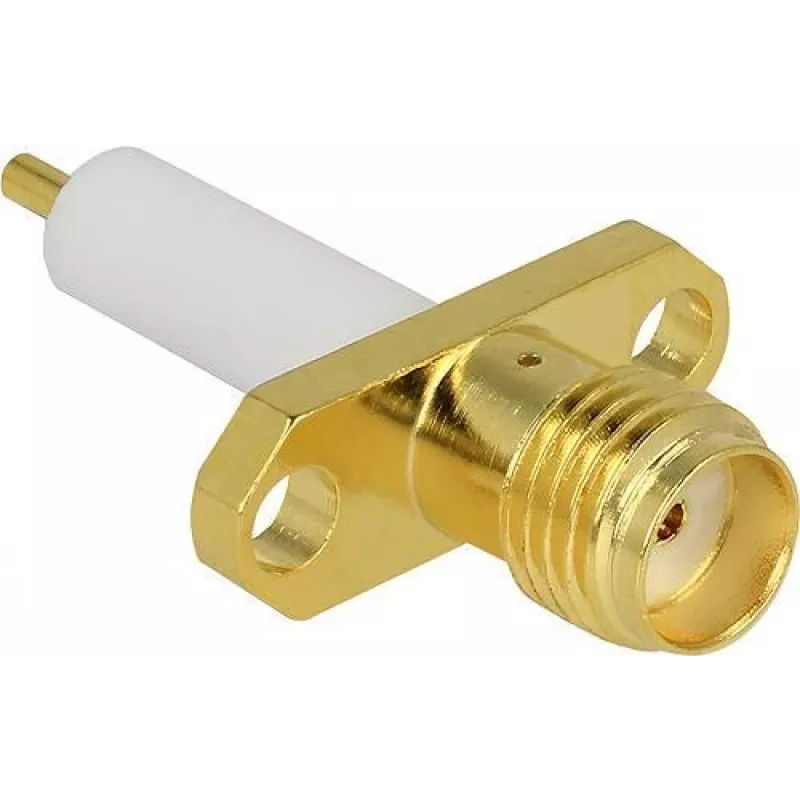

Coaxial Connector SMA DeLOCK 65846

The DeLOCK 65846 is an SMA coaxial connector designed for 50 Ω radio frequency applications. It provides a female SMA interface in a compact housing (25.2 mm × 16 mm × 5.7 mm) and is supplied in a polybag. The connector is intended for reliable, low-loss connections between RF components in electronic systems.

Advantages

The SMA DeLOCK 65846 offers a standardized 50 Ω impedance suitable for many RF setups, a female connector type for compatibility with male SMA plugs, and a compact form factor that eases installation in constrained spaces. Being a single, packaged unit in a polybag simplifies storage and handling.

Suitable for

• Connecting RF modules and antennas
• Laboratory test setups and prototyping
• Repair or replacement of SMA female ports on devices

Key specifications

• Connector type: SMA female
• Impedance: 50 Ω
• Dimensions (W × D × H): 25.2 mm × 16 mm × 5.7 mm
• Packaging: polybag
• Brand: DELOCK
• Manufacturer part number (MPN): 65846
• EAN: 4043619658466

How to use

Align the SMA female connector with the corresponding male SMA plug and thread them together by hand until secure; avoid over-tightening to prevent damage. Ensure both mating surfaces are clean and free of debris for optimal RF performance. Use appropriate mounting if integrating into a chassis or PCB edge as required by your application.

Recommendations

For best RF performance, use the DeLOCK 65846 in 50 Ω systems and verify connector cleanliness before mating. Avoid excessive torque when tightening to preserve the connector's mechanical and electrical integrity.
