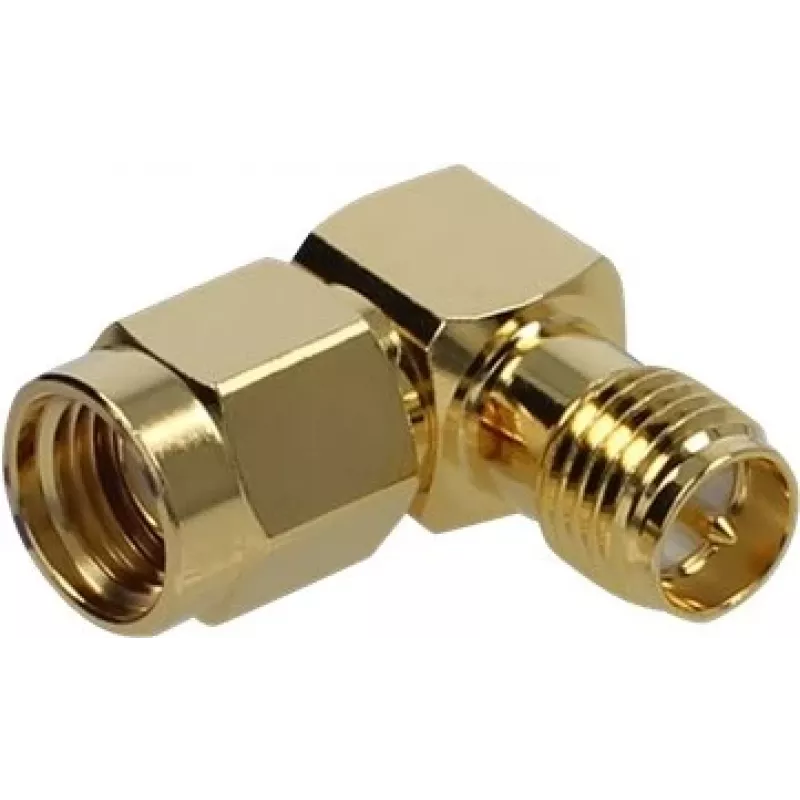

Coaxial Connector DeLOCK 89956

The DeLOCK 89956 coaxial connector is designed for radio frequency applications and provides a reliable connection with 50 Ω impedance and gold-plated contacts. Its compact dimensions (outer diameter 1.51 cm, depth 16.5 mm) make it suitable for use in various devices and setups where stable signal transmission is required. The connector is supplied as a single unit in a polybag and is finished in gold colour.

Advantages

Gold-plated contacts reduce contact resistance and improve corrosion resistance for consistent signal quality. The 50 Ω impedance matches standard RF systems, minimising signal reflections. Compact size and single-unit packaging simplify installation and inventory management.

Suitable for

Key specifications

How to use

Ensure the mating connector and cable are compatible with 50 Ω impedance before connection. Align the connector carefully and push or screw it into place according to the mating interface type used in your setup. Avoid excessive force when installing to prevent damage to the gold-plated contacts or connector body. Inspect the connection visually to confirm proper seating and signal continuity.

Recommendations

For optimal performance, use the connector in equipment and cables specified for 50 Ω systems and avoid exposure to corrosive environments; periodic visual inspection and gentle cleaning of contacts can help maintain signal quality.
