CNC PV atjungimo skydelis, DC 2in-2out, IP66

CNC PV atjungimo skydelis, DC 2in-2out, IP66
CNC PV atjungimo skydelis, DC 2in-2out, IP66
R2,744
CNC PV atjungimo skydelis, DC 2in-2out, IP66 PV disconnect box, DC 2-in / 2-out. A DC input enclosure with 2 inputs and 2 outputs for PV systems, providing surge protection and isolation of the solar DC side. UV-, water- and dust-resistant to IP66, impact-resistant and non-flammable (V0). Genuine CN... Read More
Stock 2 Code 2181698 Brand CNC Model NV822294 Warranty 2 Years

Shipping & Returns

Estimated delivery Wednesday, September 30
You will be kept updated through our detailed tracking system
Payment options
EFTPayFastBank CardSnapScanZapperGoogle PayApple PayMobicredMoreTymePay on Arrival

CNC PV atjungimo skydelis, DC 2in-2out, IP66

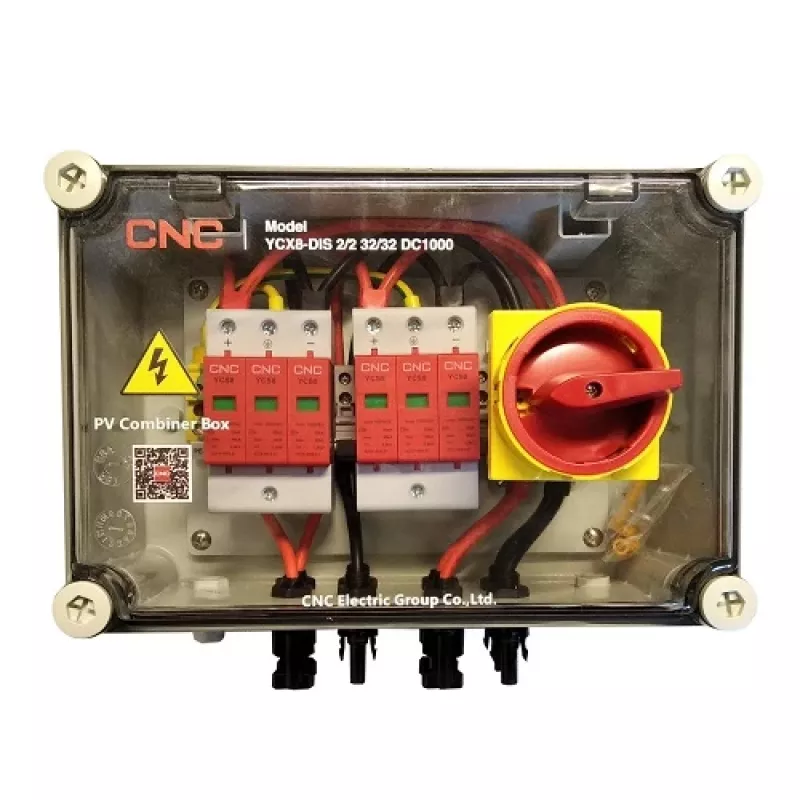

PV disconnect box, DC 2-in / 2-out. A DC input enclosure with 2 inputs and 2 outputs for PV systems, providing surge protection and isolation of the solar DC side. UV-, water- and dust-resistant to IP66, impact-resistant and non-flammable (V0).

Genuine CNC product — MPN: NV822294 · EAN: 6942367528749.

Key Highlights
  • Residential rooftop PV arrays with two string inputs
  • Small commercial photovoltaic systems requiring two-in/two-out string consolidation
  • Outdoor solar installations needing weatherproof DC junction boxes
  • Model: HiSmart NV822294
  • Configuration: DC 2 input → 2 output
  • Max system voltage: 1000 V DC
  • DC switch: 1000 V, 25 A (1 pc.), lockable handle, arc extinguishing chamber (UL508i, IEC60947-3 Pv2)
  • SPD: 1000 V, 40 kA (2 pcs.), In = 20 kA, Up = 3.6 kV, response time
  • Short-circuit current per input (Isc): adjustable 15 A–30 A
  • Max output current: 25 A
  • Max discharge current (Imax): 40 kA
  • Enclosure material: polycarbonate, V0 UL94
  • Protection level: IP67 (waterproof and dustproof)
  • Dimensions: 280 x 190 x 130 mm
  • Cable glands: Input PG09 (2.5–16 mm), Output PG21 (2.5–16 mm)
  • Operating temperature: -25 °C to +60 °C
  • Standards: IEC529/EN60529, CE, RoHS
  • Warranty: 24 months
