CLUB3D Mini DisplayPort to DisplayPort 1.4 HBR3 8K60Hz Cable, 2 Meter / 6.56 Feet

The Club 3D Mini DisplayPort to DisplayPort 1.4 cable (model CAC-1115) connects Mini DisplayPort-equipped laptops or PCs to DisplayPort monitors and other DisplayPort devices. The 2 m black cable supports DisplayPort 1.4 HBR3 bandwidth and is fully bi-directional, allowing high-resolution video and multi-channel audio transmission while the soft UltraFlex jacket reduces risk of bend and deformation damage.

Advantages

The cable is DisplayPort 1.4 compliant with HBR3 (32.4 Gbps) and supports Display Stream Compression (DSC) 1.2 and Forward Error Correction for reliable high-bandwidth transmission. A locking DisplayPort connector with a one-touch latch provides a secure, easily releasable connection. The cable is backwards compatible with older DisplayPort standards and supports up to 8K @ 60Hz or two simultaneous 4K @ 60Hz displays. It is lightweight (approx. 93 g) and conforms to RoHS, CE and FCC regulations.

Suitable for

• Connecting Mini DisplayPort laptops or desktop GPUs to DisplayPort monitors
• High-resolution video workflows (8K @ 60Hz or 2×4K @ 60Hz)
• Gaming PCs and multimedia setups requiring multi-channel audio over DisplayPort
• Professional editing and visualization where high bandwidth and low error rates are needed

Key specifications

• Model: CLUB3D CAC-1115
• Standard: DisplayPort 1.4, HBR3 (32.4 Gbps)
• Supported resolutions: up to 8K @ 60Hz or 2×4K @ 60Hz
• Features: DSC 1.2, Forward Error Correction, up to 32 inline audio channels
• Connectors: Mini DisplayPort to DisplayPort (locking DP connector with latch)

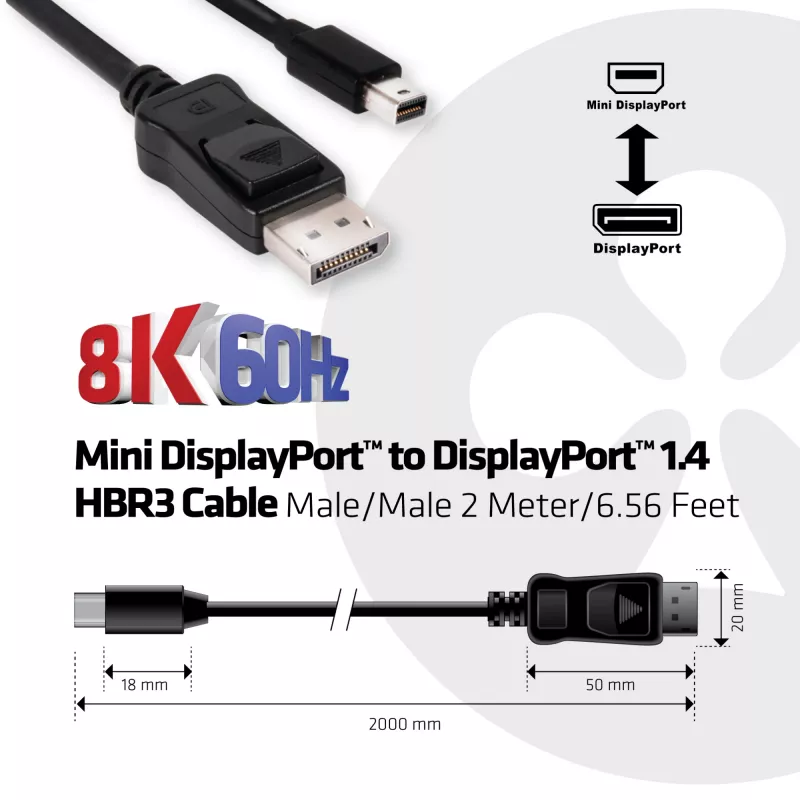

• Cable length: 2 m
• Colour: Black
• Weight: 0.093 kg
• Compliance: RoHS, CE, FCC

How to use

Connect the Mini DisplayPort end to your laptop or PC Mini DisplayPort output and plug the locking DisplayPort connector into the monitor or DisplayPort-enabled device. Press the built-in one-touch latch button to release the connector when disconnecting. Ensure both devices are powered and set the display resolution and refresh rate in your operating system or graphics driver to match the desired output (for example 8K @ 60Hz or 4K @ 60Hz). The cable is bi-directional, so it can be used in either cable direction between compatible ports.

Recommendations

For best results, use with devices and graphics cards that explicitly support DisplayPort 1.4 and DSC when targeting 8K @ 60Hz or multi-stream 4K configurations. Avoid tight bends and repeated sharp kinks; the UltraFlex jacket protects against normal bending but preserving gentle curves will maximize cable longevity.
