CLUB3D Mini DisplayPort 1.4 to HDMI 4K120Hz with DSC1.2 Active Adapter M/F

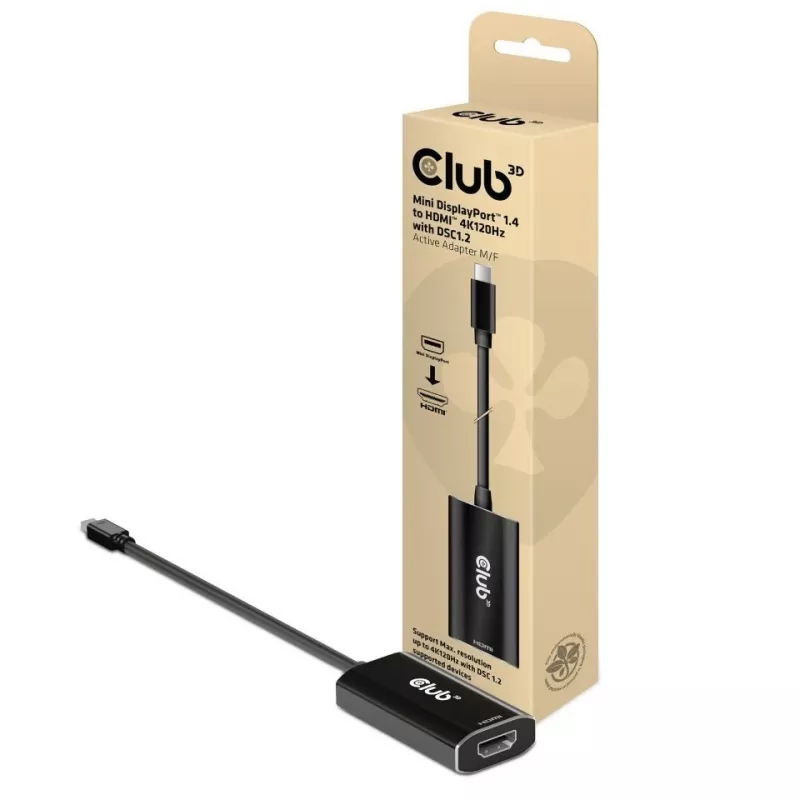

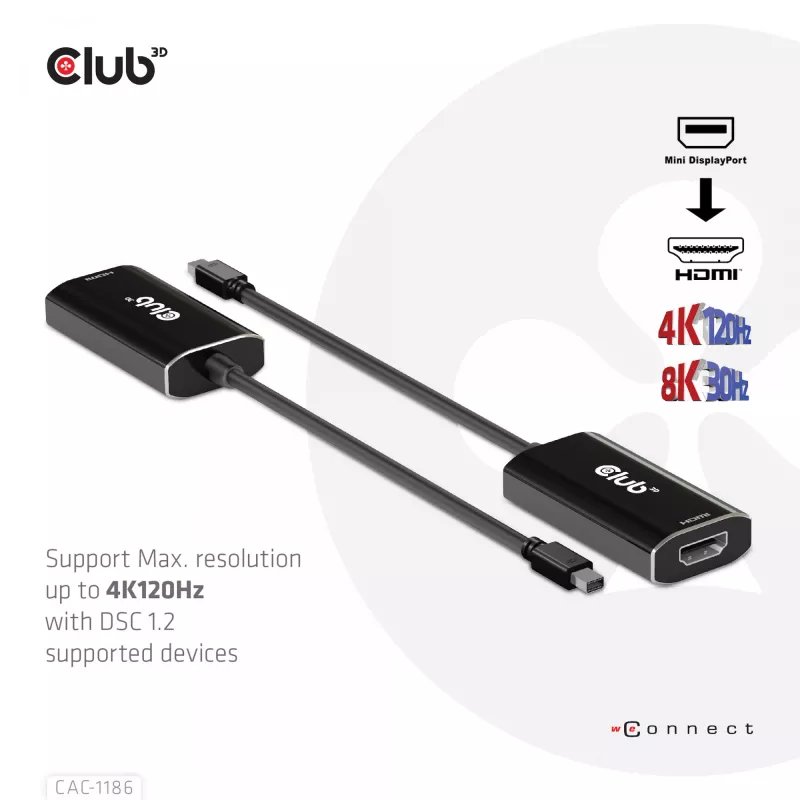

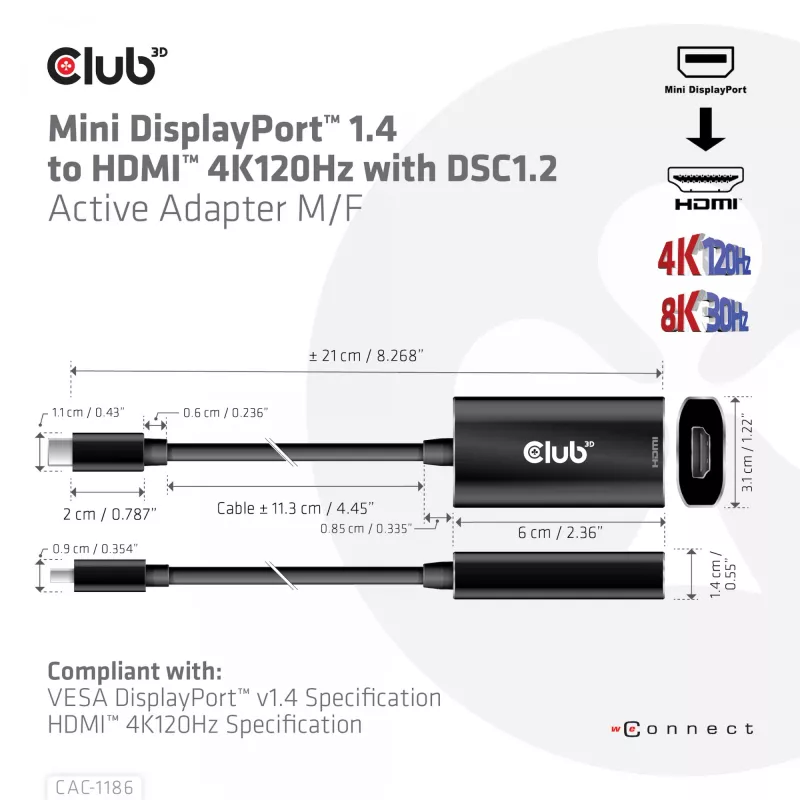

The CLUB3D CAC-1186 is an active Mini DisplayPort 1.4 to HDMI adapter that converts DP1.4 signals to HDMI with DSC 1.2 compression. It enables connection of Mini DisplayPort-equipped PCs or other devices to HDMI displays and supports resolutions up to 4K (3840 x 2160) at 120Hz with HDR10. The adapter is powered through the Mini DisplayPort connection and has a compact 0.15 m cable length and a lightweight black housing.

Advantages

This active adapter supports DisplayPort 1.4 with DSC 1.2, allowing transmission of 4K@120Hz video over HDMI while preserving HDR10 metadata. It provides a simple plug-and-play solution for devices that lack native HDMI 4K@120Hz output, uses a Mini DisplayPort connector on the source side and a standard HDMI Type A connector for the display, and is compact and lightweight for easy transport. The product is RoHS-compliant and carries FCC and CE EMI certifications.

Suitable for

Key specifications

How to use

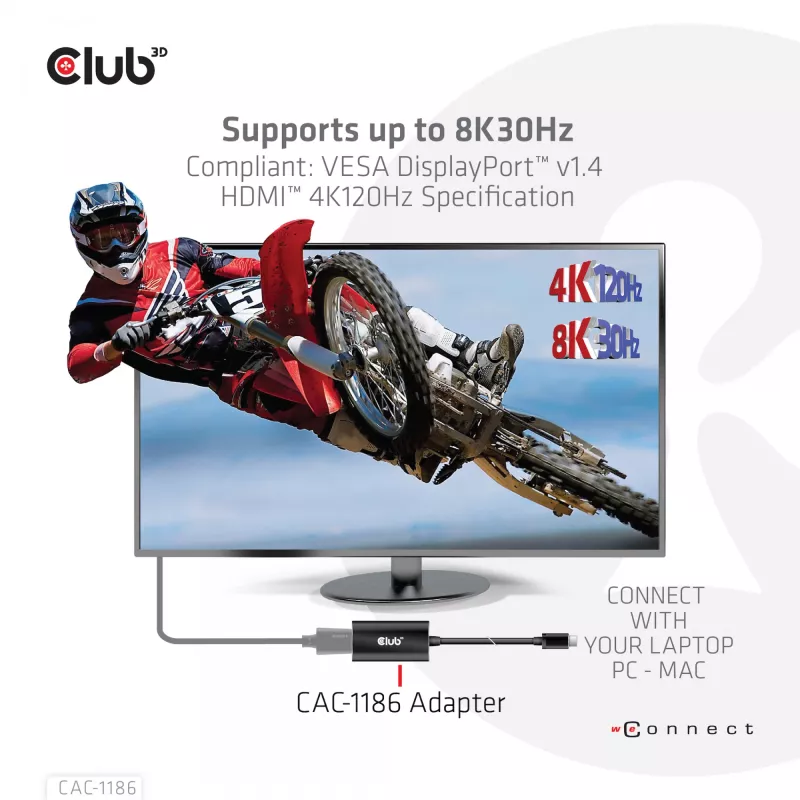

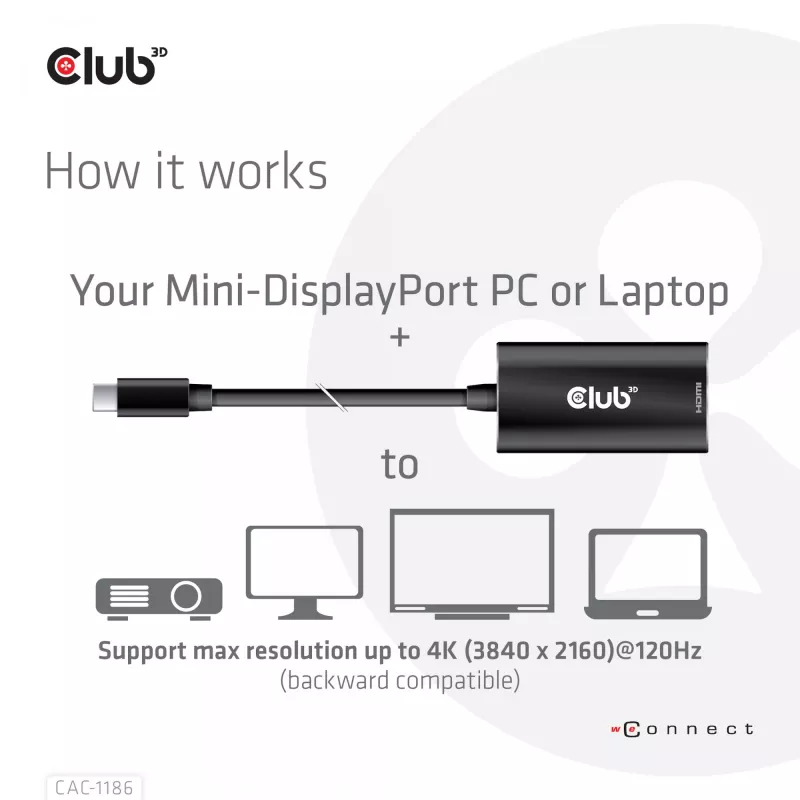

Connect the Mini DisplayPort end of the adapter to the Mini DisplayPort 1.4 output on your PC or device. Plug the HDMI Type A connector into the HDMI input of the TV or monitor. The adapter draws power through the Mini DisplayPort connection; no external power supply is required. On the connected display, select the corresponding HDMI input and set the display resolution and refresh rate to 4K@120Hz in your device’s graphics settings if not set automatically.

Recommendations

For optimal results, use a display and HDMI cable rated for HDMI 2.1 bandwidth to ensure stable 4K@120Hz performance. Verify that your source device’s Mini DisplayPort supports DP1.4 and DSC 1.2, and update graphics drivers if needed to enable high-refresh-rate output.
