CLUB3D Mini DisplayPort 1.4 to DisplayPort Extension Cable 8K60Hz DSC 1.2 HBR3 HDR Bidirectional F/M 1m/3.28ft

Club 3D Mini DisplayPort 1.4 to DisplayPort extension cable (CAC-1120) enables extending a Mini DisplayPort-equipped television, monitor, projector or other display from a DisplayPort-capable PC or laptop. The 1 m, black cable supports DisplayPort 1.4 features including Display Stream Compression (DSC) 1.2, Forward Error Correction and up to 32 inline audio channels, allowing video transmission up to 8K at 60 Hz with HBR3 and HDR support. The cable is lightweight (approx. 30 g), RoHS compliant and FCC/CE EMI certified.

Advantages

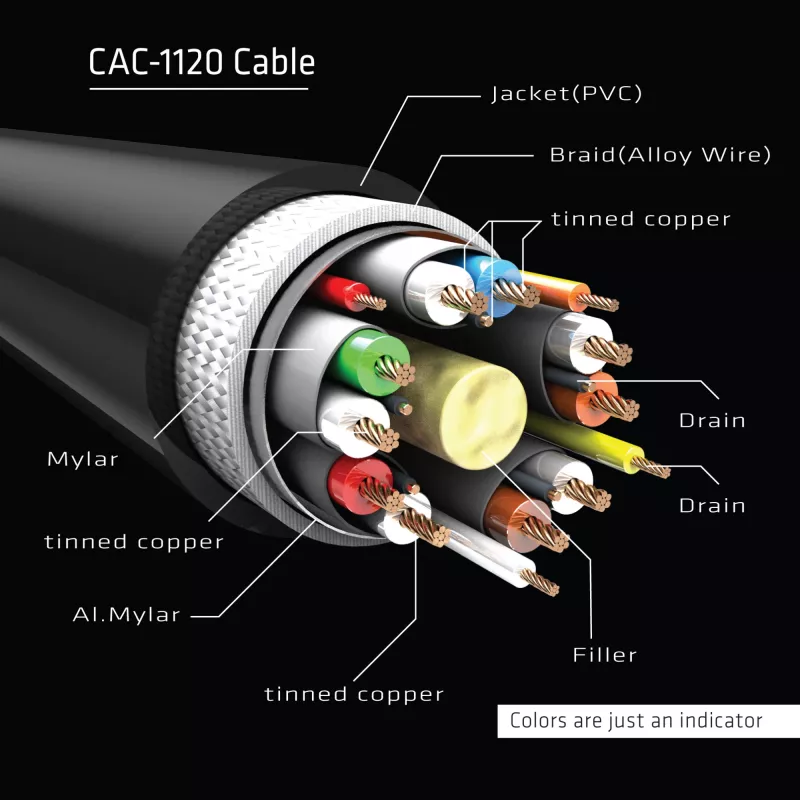

The cable is fully bidirectional and uses a 32 AWG conductor with an UltraFlex jacket to resist bends and deformation. Locking DisplayPort connectors provide a secure connection with a one-touch latch release for easy disconnection. Its support for DSC 1.2 and HBR3 ensures high-resolution, high-bandwidth video with preserved audio channel capacity.

Suitable for

• Extending a Mini DisplayPort connection from a DisplayPort-enabled PC or laptop to a Mini DisplayPort display
• High-resolution video setups up to 8K60Hz with Display Stream Compression
• Monitors, TVs or projectors with Mini DisplayPort inputs
• Setups requiring a secure, locking DisplayPort connection

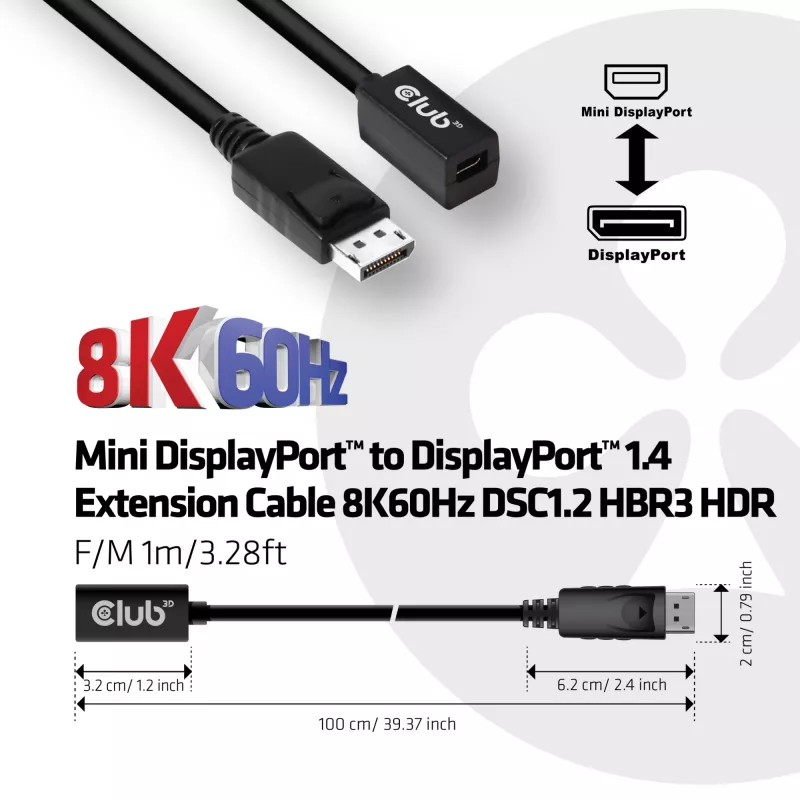

Key specifications

• Length: 1 m
• Connector 1: Mini DisplayPort
• Connector 2: DisplayPort (locking)
• Standard: DisplayPort 1.4 with DSC 1.2
• Maximum resolution: up to 8K @ 60 Hz (with DSC)
• Conductor gauge: 32 AWG
• Audio channels: up to 32 inline channels
• Weight: 0.03 kg
• Colour: Black
• Certifications: RoHS, FCC, CE (EMI)

How to use

Connect the Mini DisplayPort end to the Mini DisplayPort input on the display device and the DisplayPort end to the DisplayPort output on your PC or laptop. Ensure the connectors click into place; press the built-in one-touch latch button to release a locking connector when disconnecting. Configure the display settings on your computer to the desired resolution and refresh rate; if using 8K60Hz, enable DSC support in the source and display if required.

Recommendations

For optimal signal quality, avoid sharp bends and excessive tension on the UltraFlex jacket. Use the 1 m length for nearby setups; for longer runs, choose an appropriately rated cable. Ensure both source and display hardware support DisplayPort 1.4 and DSC to achieve 8K60Hz performance.
