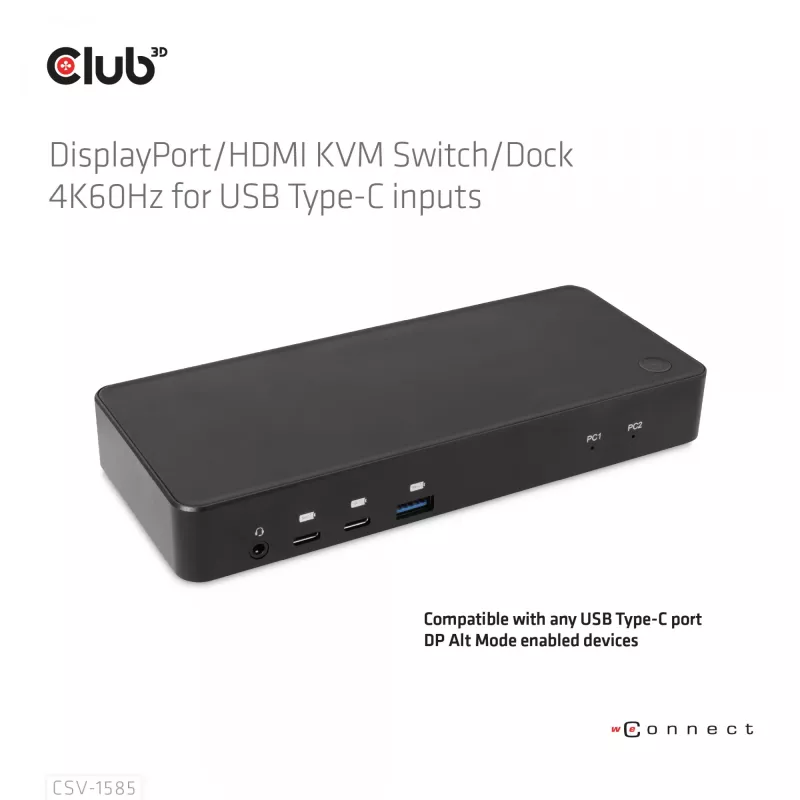

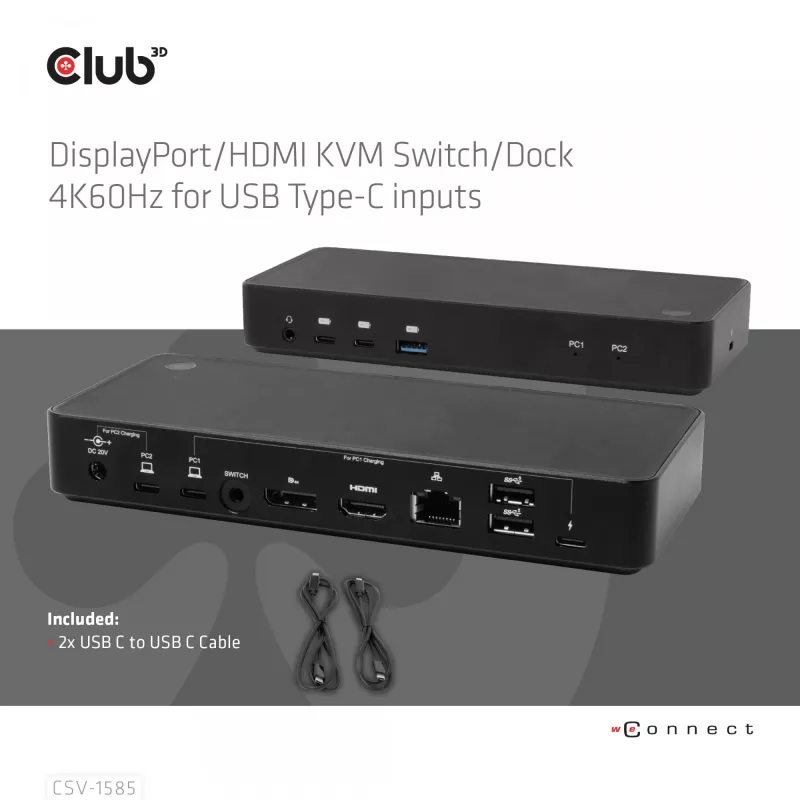

CLUB3D DisplayPort/HDMI KVM Switch/Dock 4K60Hz For USB Type-C inputs

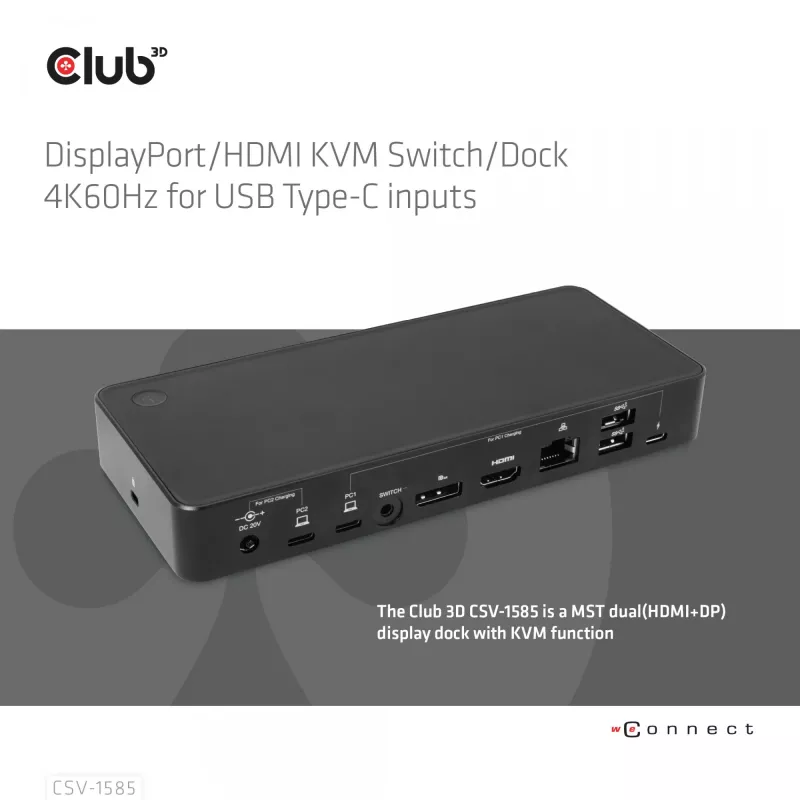

The Club 3D CSV-1585 is a MST dual (HDMI™ + DP™) display dock with KVM functionality that lets you connect two USB Type-C hosts and switch between them quickly. It offers multiple USB Type-A and Type-C ports for peripherals, supports up to 5 Gbps data transfer on USB ports, and supplies Power Delivery to charge connected laptops or host devices. The dock includes a 120 W DC power adapter that can provide 65 W PD charging to a connected host while powering the docking station and other devices. The unit is compatible with USB Type-C ports that support DP Alt Mode and includes a Kensington lock and plug-and-play operation.

Advantages

The CSV-1585 combines MST dual video output (HDMI and DisplayPort) with integrated KVM switching, allowing fast toggling between two computers using the top button or the connected cable remote. Multiple USB ports (3x USB Type-A and 3x USB Type-C) provide connectivity for keyboards, mice and external storage with up to 5 Gbps transfer speeds. The included 120 W power supply supports up to 65 W Power Delivery to charge one host while the dock remains powered, and the device works with any USB-C DP Alt Mode compatible laptop, tablet or phone.

Suitable for

• Office or home workstations that require switching between two computers
• Users who need multiple USB ports for keyboard, mouse and peripherals
• Setups that require charging a USB-C laptop while using external displays

Key specifications

• Model: CLUB3D CSV-1585
• Video outputs: MST dual (HDMI™ + DisplayPort™)
• Host inputs: 2 x USB Type-C (DP Alt Mode required)
• USB ports: 3 x USB Type-A + 3 x USB Type-C (up to 5 Gbps)
• Power adapter: 120 W DC (provides up to 65 W PD to a host)
• KVM: Integrated switch for 2 computers (top button / cable remote)
• Security: Kensington lock
• Colour: Black

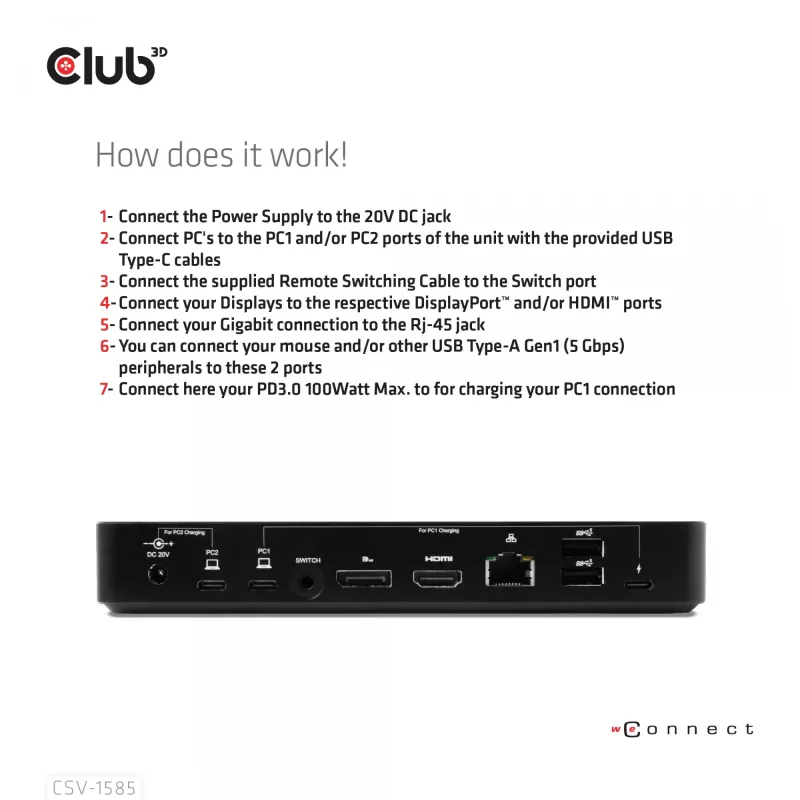

How to use

Connect each computer to a USB Type-C input that supports DP Alt Mode. Attach displays to the HDMI and DisplayPort outputs as required, and plug peripherals into the USB Type-A or Type-C ports. Connect the supplied 120 W DC power adapter to the dock to enable Power Delivery charging and full functionality. Switch between connected hosts using the top POWER SWITCH button or the remote button on the connected cable.

Recommendations

Use a USB Type-C PD-capable adapter for PC1 if you want to supply external power through the Type-C1 port; charging power will depend on that adapter. Ensure host devices support DP Alt Mode for video output. Use the supplied 120 W adapter to maintain stable charging (65 W) for a connected laptop while the dock is powering peripherals.
