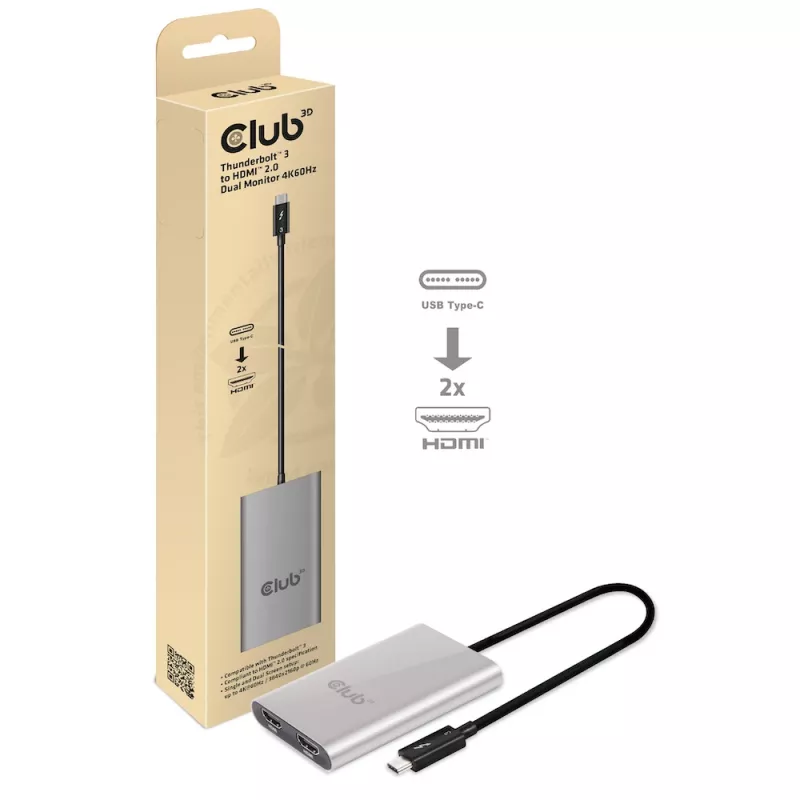

Adapter CLUB3D Thunderbolt 3 to Dual HDMI 2.0

The CLUB3D Thunderbolt 3 to Dual HDMI 2.0 adapter lets you connect two HDMI 2.0 displays to a single Thunderbolt 3 port. It supports up to 3840 x 2160 at 60 Hz for single- and dual-screen setups, is plug-and-play with no driver installation required, and comes in a slim brushed aluminium housing (93 x 56 x 16 mm, 91 g) in grey and silver finish.

Advantages

This adapter provides dual 4K@60Hz output from one Thunderbolt 3 interface, is compatible with macOS Sierra and Windows 10, and requires no drivers. Its compact, lightweight brushed aluminium design increases portability while offering a durable casing. The device consumes typical power around 15 W and supports two HDMI 2.0 connections for high-quality video.

Suitable for

• Extending desktop workspace for productivity (office, trading, programming)
• Connecting a laptop or tablet to two external monitors for multitasking
• Presentations and meeting rooms requiring dual HDMI outputs
• Content creation and video review workflows needing 4K displays

Key specifications

• Brand: club 3d
• Model / MPN: CSV-1574

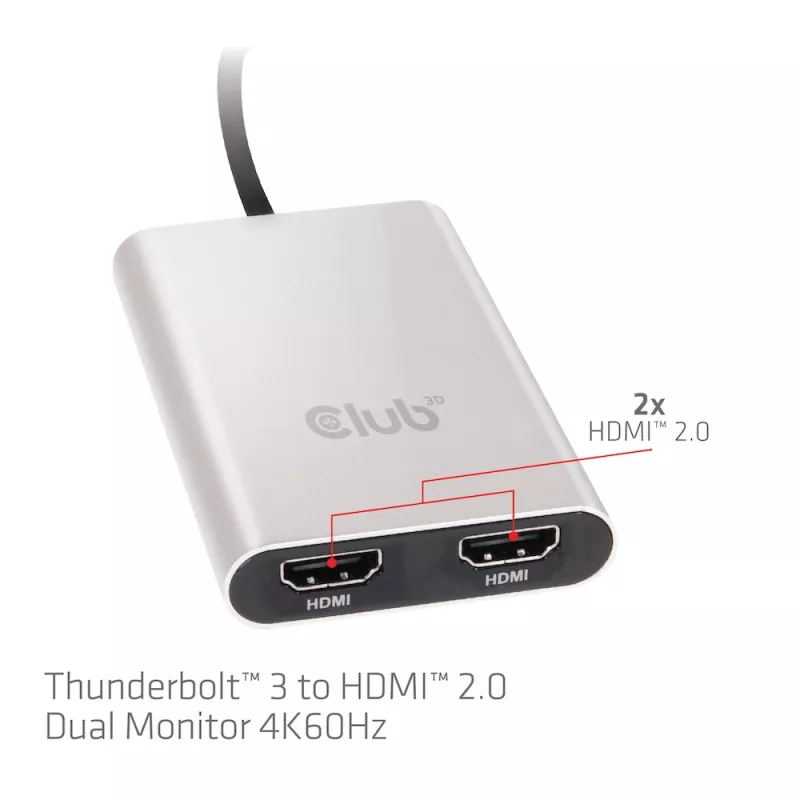

• Connectors: Thunderbolt 3 (input) to 2 × HDMI 2.0 (output)
• Maximum resolution: 3840 × 2160 @ 60 Hz (single and dual screen)
• Dimensions: 93 × 56 × 16 mm
• Weight: 0.091 kg
• Typical power consumption: 15 W
• Colour: Grey, Silver
• Compatibility: macOS Sierra, Windows 10

How to use

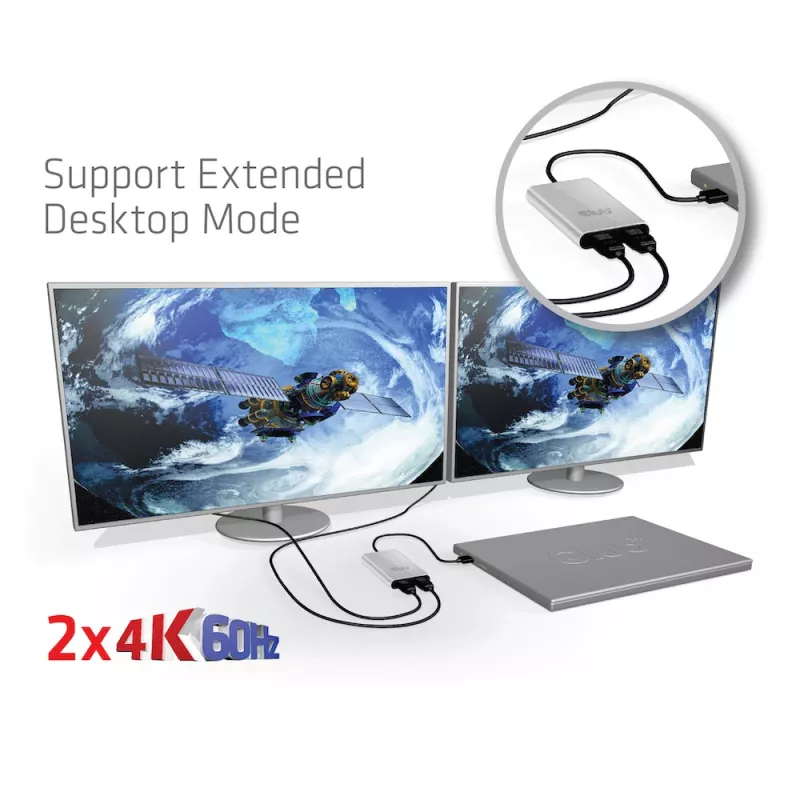

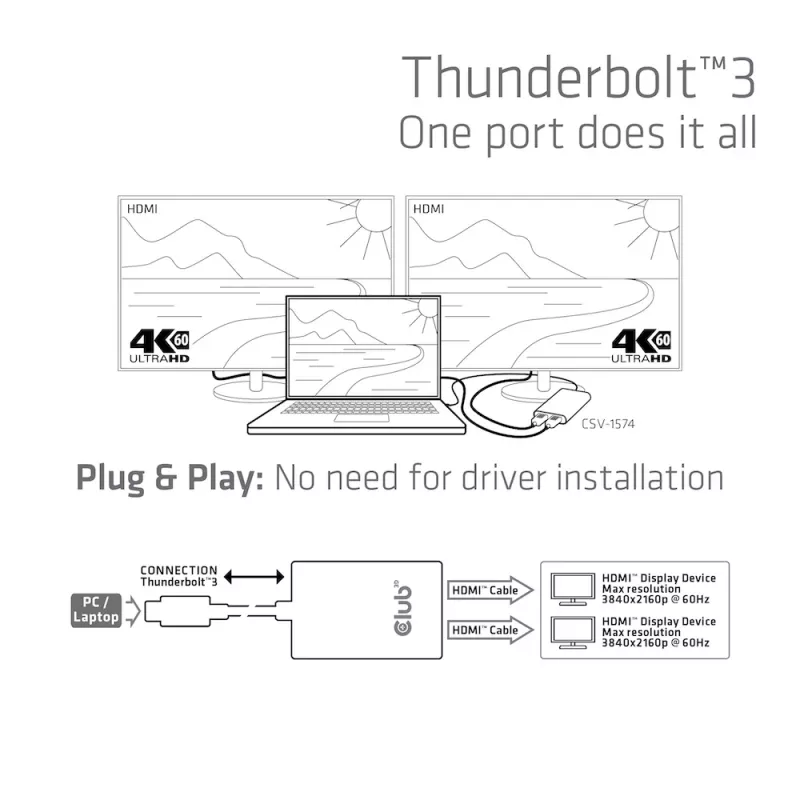

Connect the adapter to a Thunderbolt 3 port on your computer, then attach up to two HDMI 2.0 displays to the adapter outputs. The device is plug-and-play; operating systems that support multi-stream transport over Thunderbolt 3 will detect the displays automatically. Configure display arrangement and resolution in your OS display settings to set extended or mirrored modes and ensure each display is set to 3840 × 2160 @ 60 Hz if supported.

Recommendations

Use high-quality HDMI 2.0 cables rated for 4K@60Hz and ensure your source device supports Thunderbolt 3 output with sufficient bandwidth. For best results, update your system firmware and OS, and select the correct resolution and refresh rate in the display settings.
