Clamp ALLNET ALL369X-A800 Black 3 cm

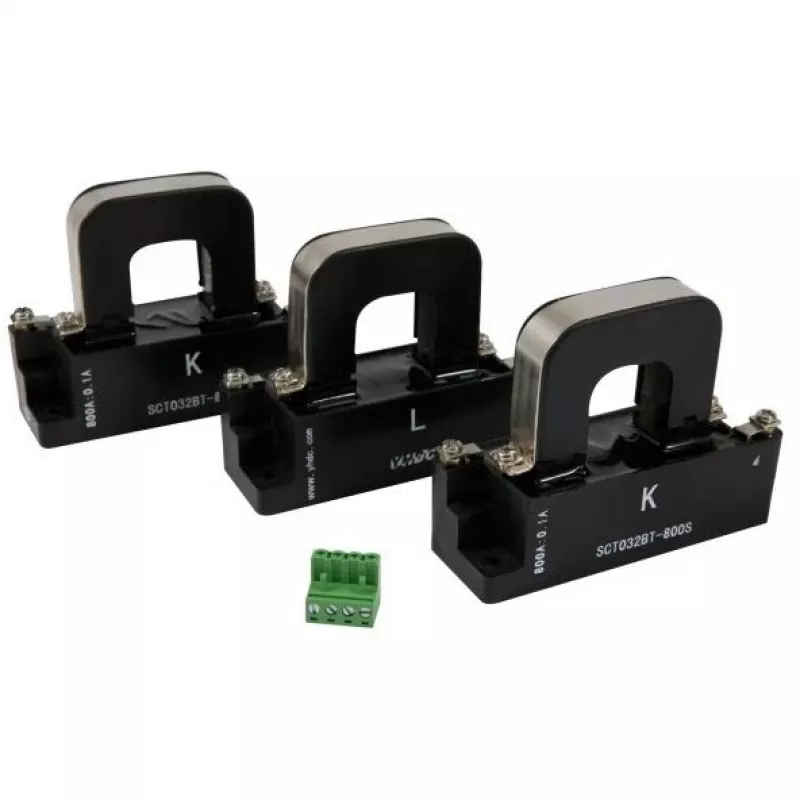

Set of three induction (current) clamp terminals designed for use with the ALLNET ALL3690 and ALL3691 power meters. Each clamp has an inner diameter of 30 mm and is rated for currents up to 800 A per phase. The set is supplied in black and includes three clamps for measuring all three phases simultaneously. Note: these current terminals must not be connected without a load.

Advantages

The ALLNET ALL369X-A800 clamps provide a compact 30 mm opening that fits conductor sizes common in commercial and residential installations. They support measurements up to 800 A per phase and are supplied as a matched three-piece set for simultaneous three-phase monitoring. The clamps are compatible with the ALLNET ALL3690 and ALL3691 power meters and are built for repeatable, reliable measurements.

Suitable for

• Three-phase current measurement in distribution panels
• Installation and verification of electrical systems in commercial or residential buildings
• Use with ALLNET ALL3690 and ALL3691 power meters for energy monitoring and diagnostics

Key specifications

• Model: ALLNET ALL369X-A800 (ALL369x-A800)
• Quantity: 3 clamps (one per phase)
• Inner diameter (clamp opening): 30 mm
• Maximum current per phase: 800 A
• Color: Black
• Compatible with: ALLNET ALL3690, ALL3691 power meters
• Weight (set): 1.88 kg
• EAN: 4038816000101

How to use

Install each clamp around the conductor for the corresponding phase without disconnecting the conductor. Connect the clamp outputs to the input terminals of the ALLNET ALL3690 or ALL3691 power meter according to the meter's wiring diagram. Ensure the clamps are fully closed around the conductor and that there is a load on the circuit before taking measurements, since the current terminals must not be connected without load. Follow the power meter user manual for measurement configuration and scaling.

Recommendations

Do not connect the current clamps to the meter when the measured circuit is open (no load). Verify conductor size fits within the 30 mm clamp opening and observe proper safety procedures when working on live electrical equipment.
