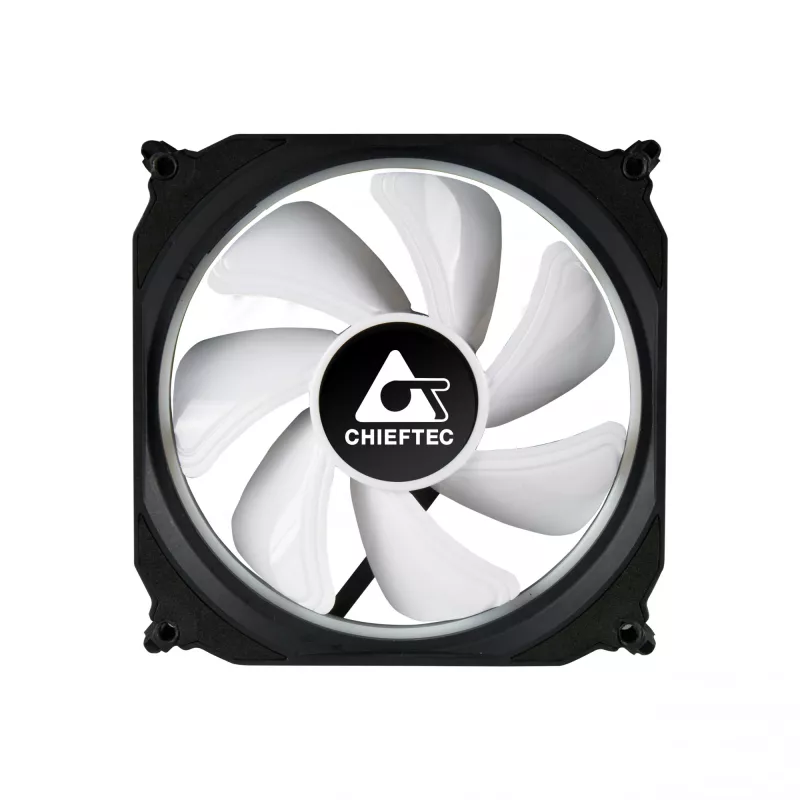

Chieftec CF-3012-RGB computer cooling system Computer case Fan 12 cm Black

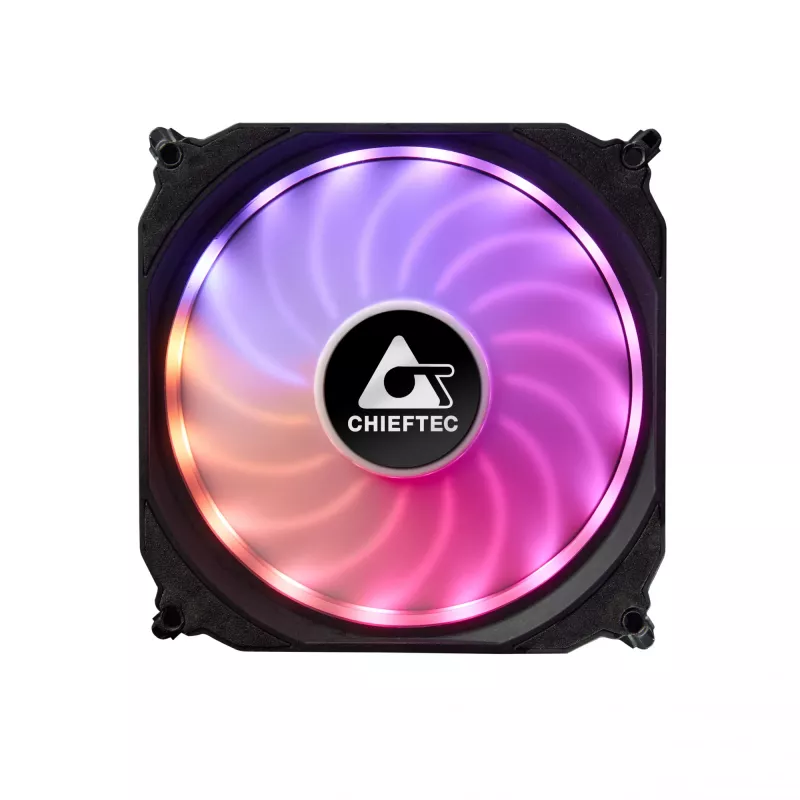

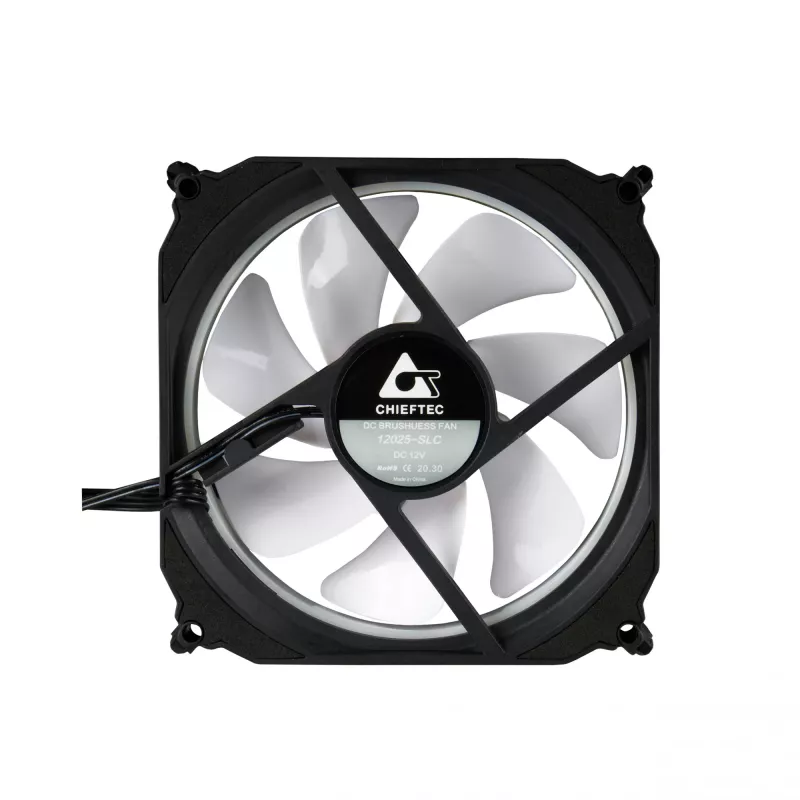

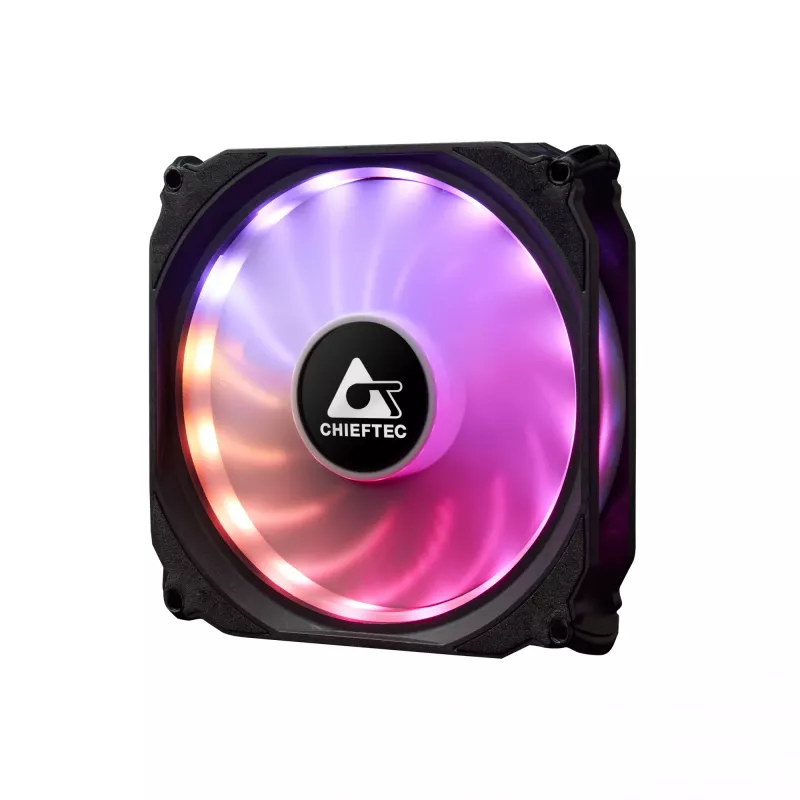

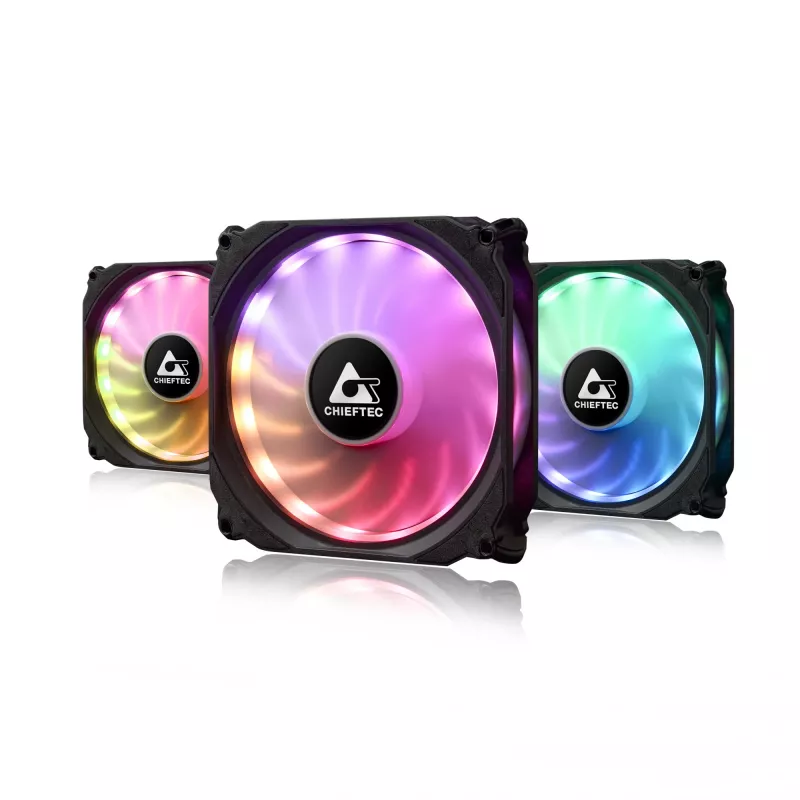

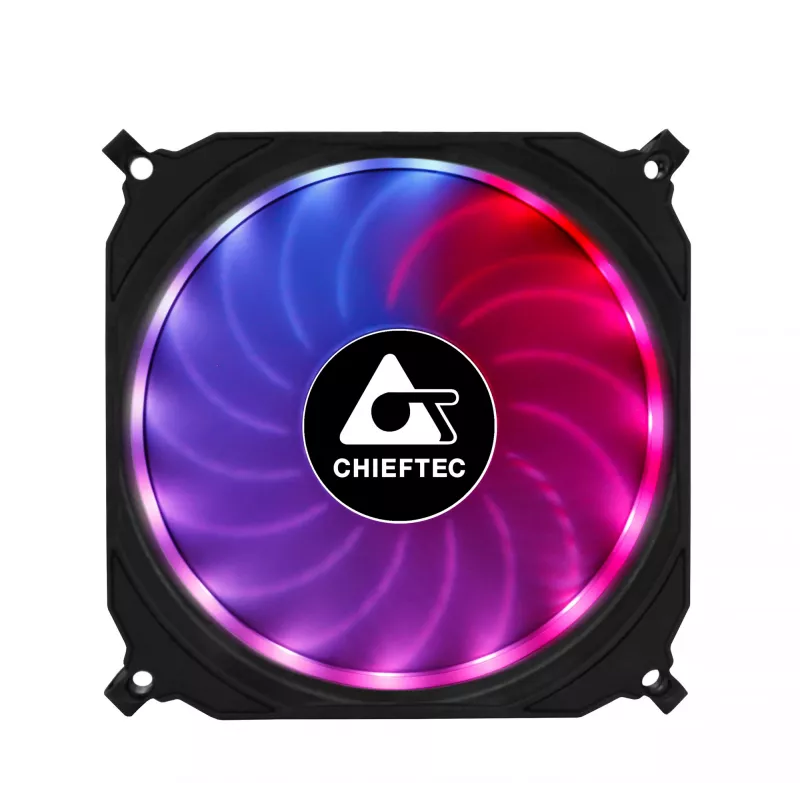

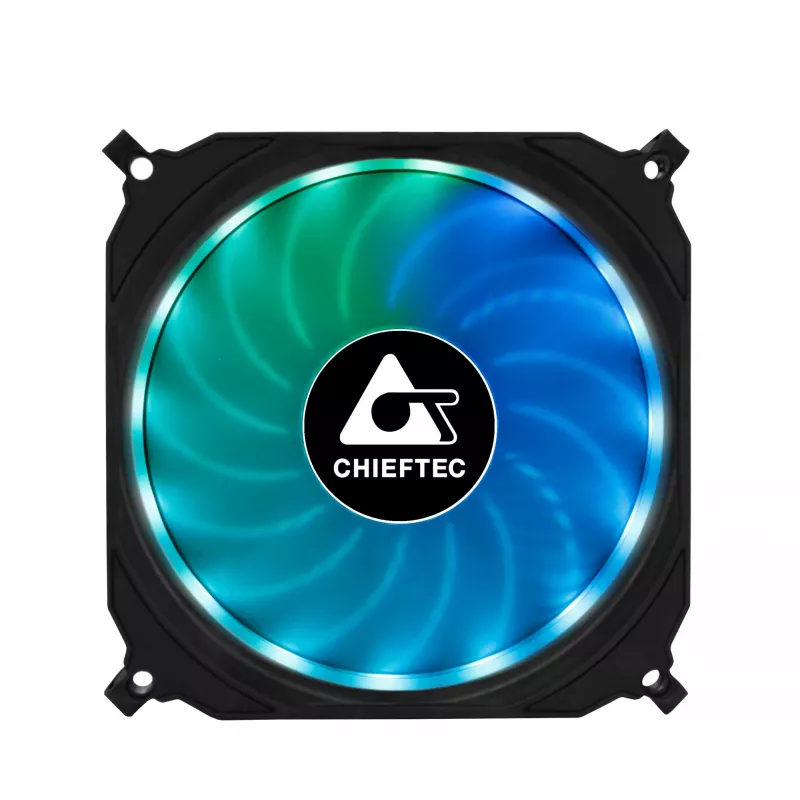

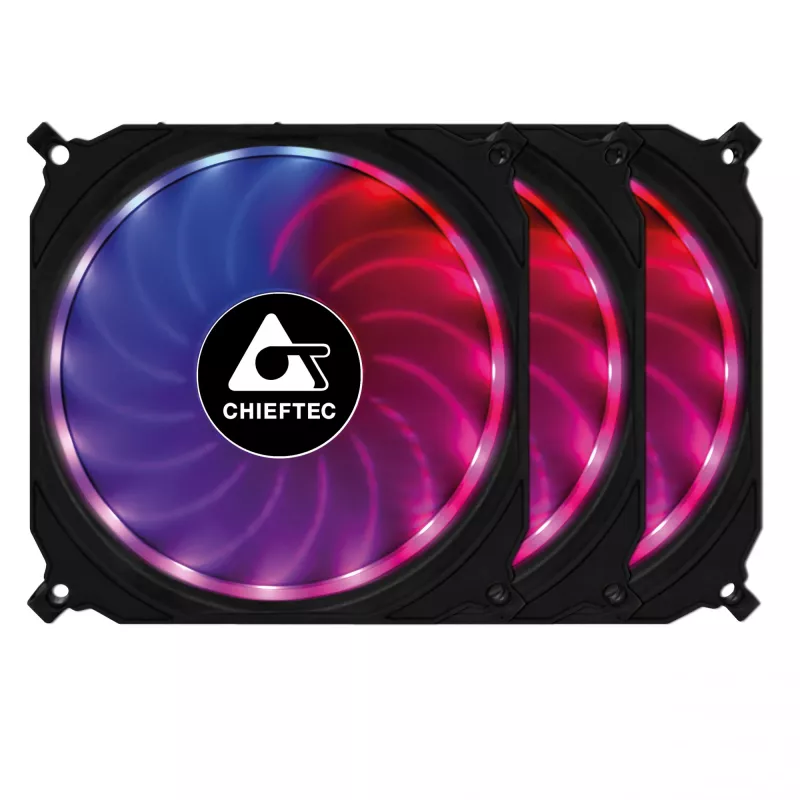

The Chieftec CF-3012-RGB is a 120 mm case fan set (3 fans) with addressable RGB lighting, a multifunctional controller board and an RF remote control. Each fan includes 16 addressable LEDs and white blades for uniform illumination. The set supports connection to a +5V addressable RGB motherboard header (ASUS AURA, ASRock RGB Sync, MSI Mystic Light Sync, Gigabyte RGB Fusion) or can operate independently via the included controller. The hub provides six 6-pin fan connectors and two 3-pin +5V RGB connectors for additional peripherals. Fans are fitted with anti-vibration rubbers and specially shaped blades to reduce noise while maintaining airflow; rated operating voltage is 7–12 V with a maximum speed around 1200 RPM.

Advantages

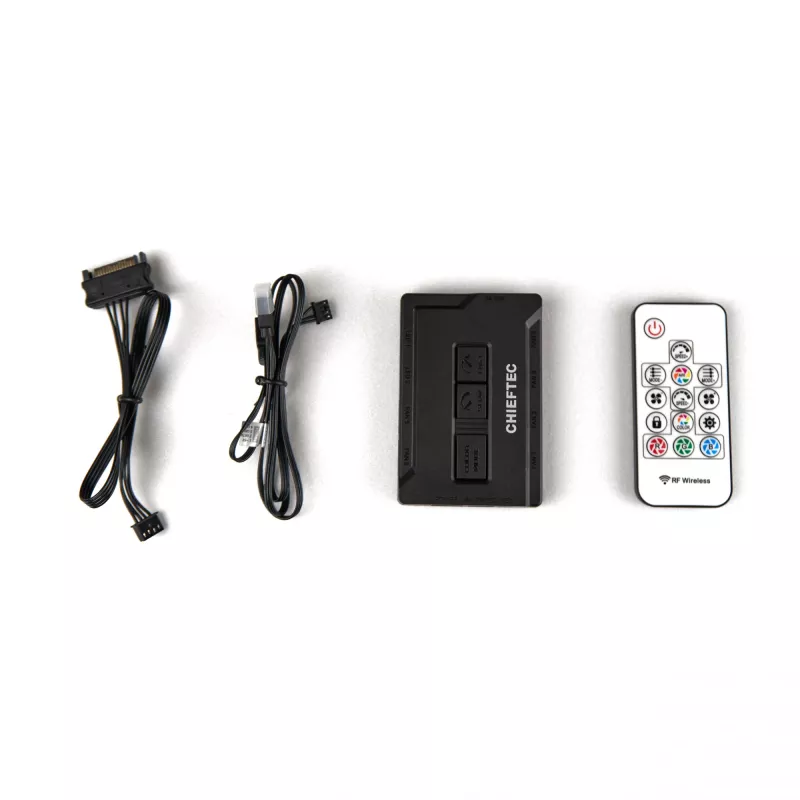

The CF-3012-RGB set delivers addressable RGB effects per fan for flexible and complex lighting that a conventional +12V RGB cannot reproduce. The multifunctional controller allows both motherboard-synced and standalone operation, with RF remote control and manual function buttons on the control board. Anti-vibration mounts and sculpted fan blades provide quieter operation, and the white blades improve light diffusion for even RGB illumination.

Suitable for (tasks / use cases)

• Cooling airflow in mid-tower and full-tower PC cases
• Gamers and PC builders who want addressable RGB lighting
• Systems requiring multiple fan connectors and additional RGB peripherals

Key specifications

• Type: Fan set (3 x 120 mm)
• Fan diameter: 120 mm
• LEDs per fan: 16 addressable LEDs
• Supported RGB header: +5V addressable RGB (3-pin)
• Controller outputs: 6 × 6‑pin fan connectors, 2 × 3‑pin +5V RGB connectors
• Operating voltage: 7–12 V
• Max speed: approx. 1200 RPM
• Colour: Black (white fan blades for diffusion)
• Anti-vibration mounts: Yes
• MPN / EAN: CF-3012-RGB / 0753263075963

How to use

Install the three 120 mm fans in the desired positions inside the PC case using the supplied screws. Connect fan power to the controller hub using the included cables and link the hub to the motherboard +5V addressable RGB header if you want synchronized control via supported motherboard software, or keep the hub disconnected to control lighting and fan speed via the RF remote or the controller board buttons. Attach any additional RGB peripherals to the hub's 3‑pin +5V RGB connectors if needed. Ensure the system is powered off before connecting cables and verify correct +5V RGB pin alignment to avoid damage.

Recommendations

For best lighting results, connect the controller to a +5V addressable RGB header on a compatible motherboard when you need synchronized effects; use the RF remote or onboard buttons for independent control. Place fans to optimize airflow—intake at front/bottom and exhaust at rear/top—and avoid obstructing the blades. Regularly check and secure anti-vibration mounts to maintain quiet operation.
