Ceiling Mount Triple Screen TV Bracket Equip 650371

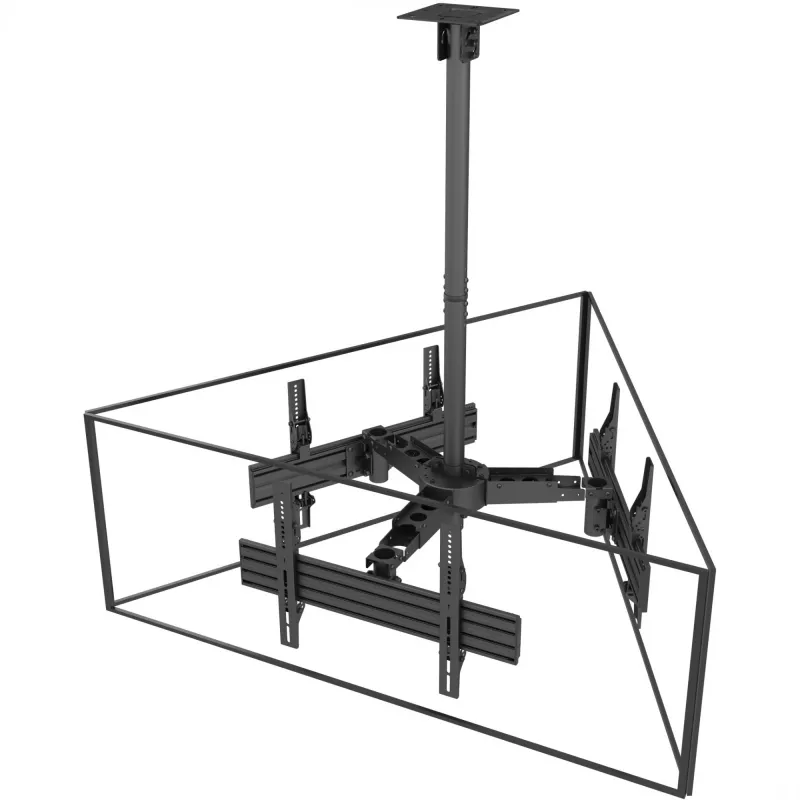

The Equip ceiling mount for three screens is an industrial-grade bracket designed for signage and multi-screen installations. It supports three displays between 32" and 65" and provides a secure, ceiling-mounted solution with a black finish and a total product weight of 36 kg.

Advantages

The mount offers tilt adjustment for aligning and evening the viewing angle of all three screens, supports a wide range of VESA patterns up to 600 x 400 mm and can carry a combined maximum load of 90 kg. Its construction is suited for continuous use in public or commercial environments where stable, multi-screen presentation is required.

Suitable for

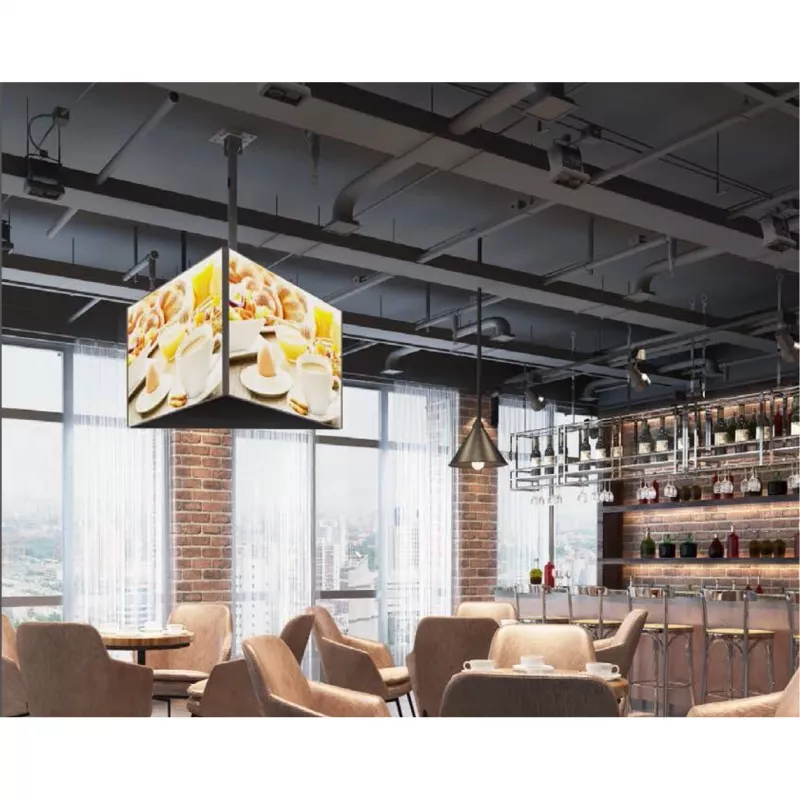

• Digital signage in retail or public spaces
• Multi-screen displays in offices and meeting rooms
• Information boards in airports, stations or reception areas
• Entertainment areas and lobbies

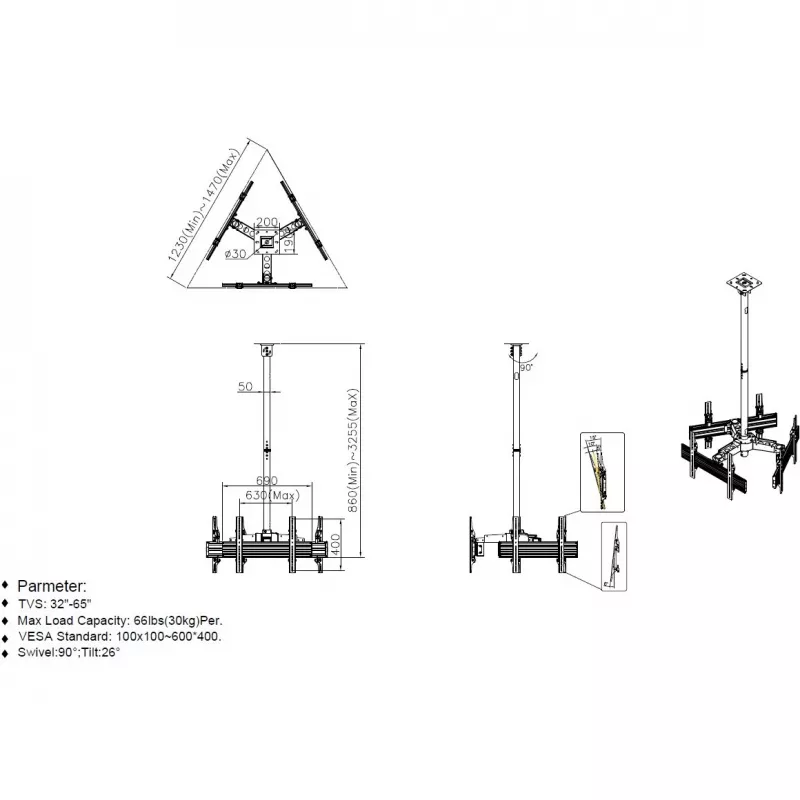

Key specifications

• Screen size compatibility: 32"–65" per display
• Supported VESA: up to 600 x 400 mm
• Maximum combined weight capacity: 90 kg
• Tilt range: 0–15°
• Number of displays supported: 3
• Colour: Black
• Product weight: 36 kg

How to use

Fix the ceiling plate to a suitable structural support following local building codes, attach each TV bracket to the displays using the appropriate VESA holes, and connect the displays to the mount. Adjust the tilt of each screen within the 0–15° range to achieve a uniform viewing angle across all three displays. Ensure the total weight of the installed screens does not exceed 90 kg and that mounting hardware is tightened securely.

Recommendations

Use the triple ceiling mount for permanent or semi-permanent installations in commercial environments; verify ceiling strength and, if necessary, consult a qualified installer to confirm safe mounting and compliance with local regulations.
