CAT 6A connector for field assembly Digitus DN-93633

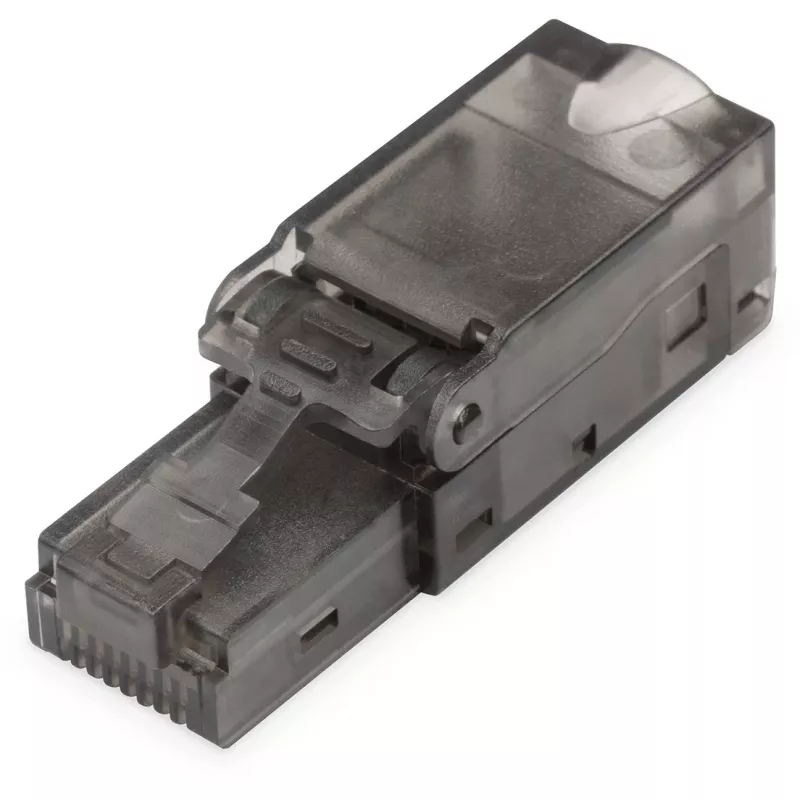

The DIGITUS CAT 6A connector for field assembly (DN-93633) is an RJ45 plug designed for quick on-site installation with unshielded cables. It accepts AWG 27/7 to 22/1 solid and stranded conductors and meets Cat6a performance for applications up to 10 Gigabit Ethernet. The compact black housing (11.7 mm × 67.8 mm × 15.8 mm) is intended for professional network work where rapid, tool-free assembly and reliable signal transmission are required.

Advantages

The connector enables fast assembly in approximately 120 seconds without special tools, offers compatibility with a wide range of conductor sizes and cable types, and supports high-speed networks up to 10 Gigabit Ethernet. Its compact design and straightforward assembly reduce installation and maintenance time, making on-site repairs and upgrades more efficient.

Suitable for

• Field assembly of RJ45 terminations on unshielded Cat6a cables
• Network installations and repairs in offices and data centers
• Applications requiring up to 10 Gigabit Ethernet connectivity
• Situations where quick, tool-free termination is needed

Key specifications

• Model: DIGITUS DN-93633
• Connector: RJ-45
• Category: Cat6A (up to 10 Gigabit Ethernet)
• Conductor compatibility: AWG 27/7 to 22/1 (solid and stranded)
• Colour: Black

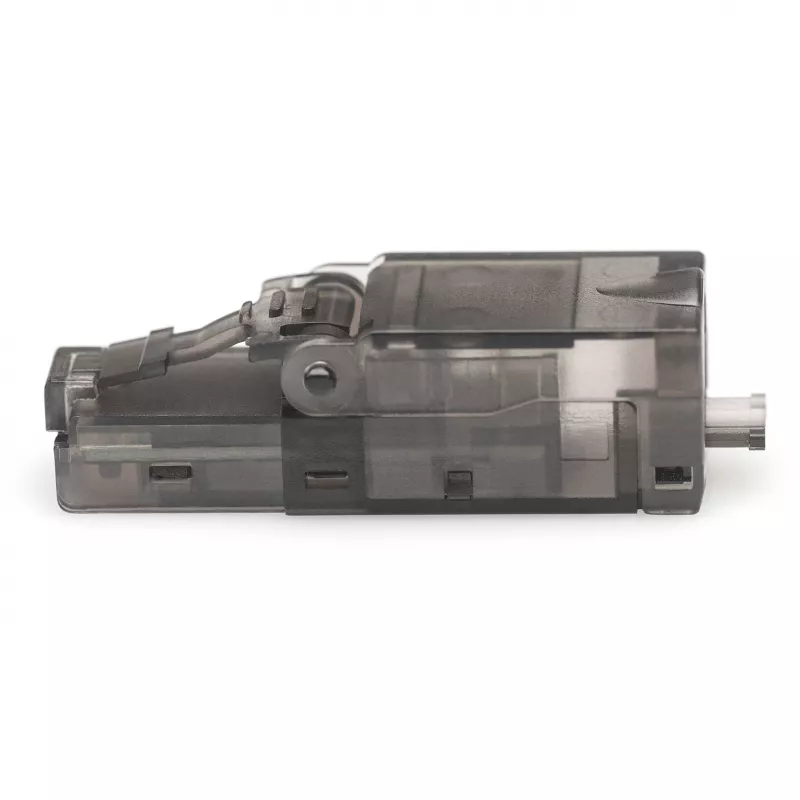

• Dimensions (W × D × H): 11.7 mm × 67.8 mm × 15.8 mm
• Made in: China
• EAN: 4016032435617

How to use

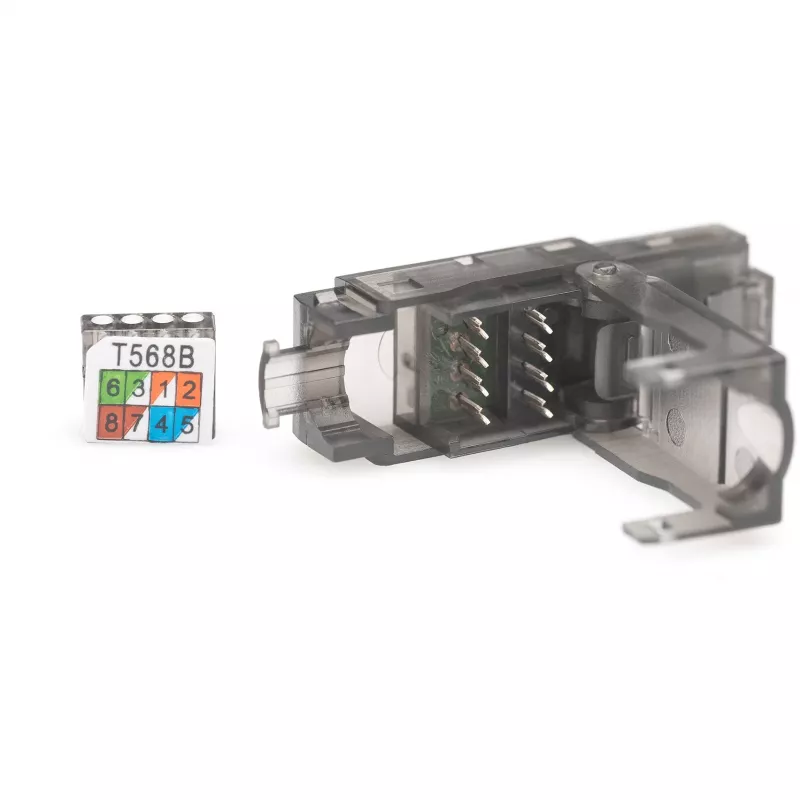

Prepare the unshielded Cat6a cable by stripping the outer jacket and arranging the conductors according to the required wiring standard. Insert the conductors into the connector until they reach the end position, then complete the assembly following the connector’s built-in termination mechanism. No special tools are required for the standard assembly process; ensure conductors are fully seated and the connector housing is closed or locked as specified by the manufacturer to secure the termination.

Recommendations

Use this connector with compatible Cat6a UTP cables and verify wiring order and conductor seating before energising the link. For critical installations, test the terminated link with appropriate network testers to confirm performance up to 10 Gigabit Ethernet.
