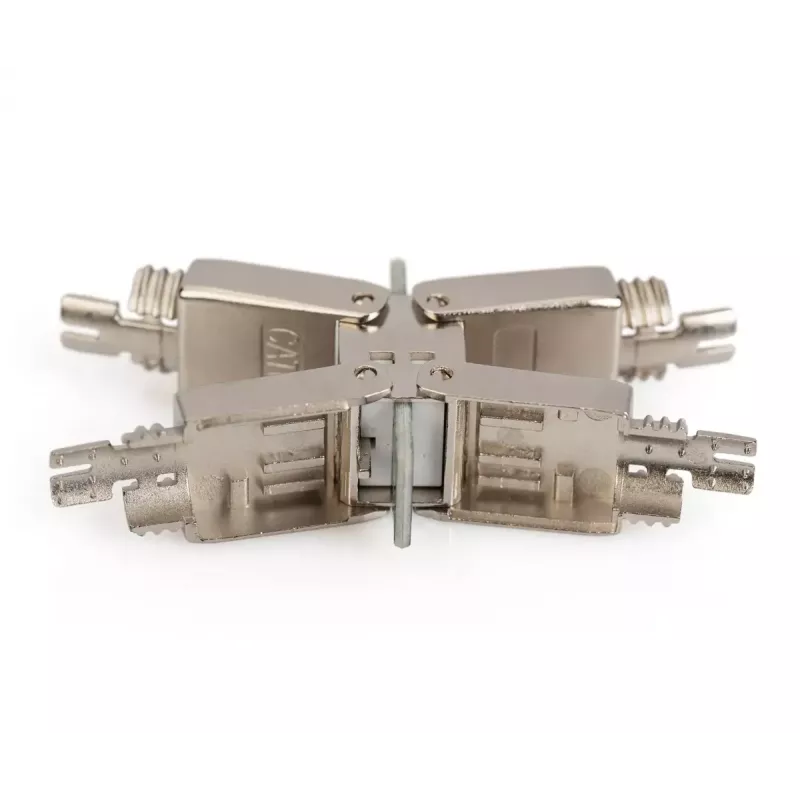

DIGITUS CAT6a Cat Connection Module For Installation Cables

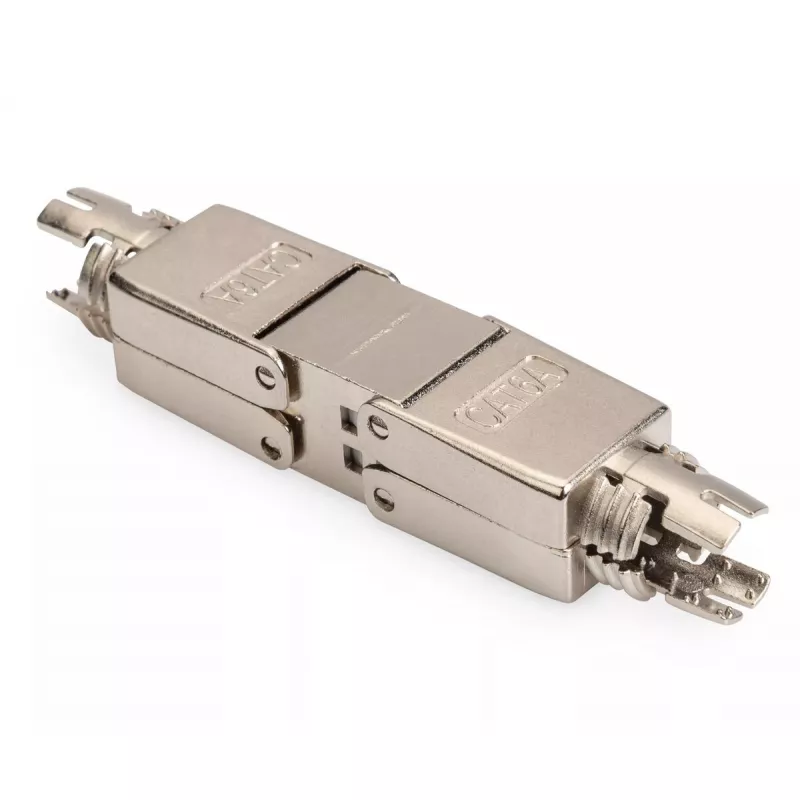

The DIGITUS CAT Connector DN-93912 is a field-installable Cat. 6A connector for extending or repairing twisted pair cables. It supports up to 500 MHz and 10GBase-T performance, features a slim metal housing in stainless-steel appearance and is supplied as a single unit. The connector is suitable for Cat6A cable standards and designed for reliable, compact connections in PoE and data networks.

Advantages

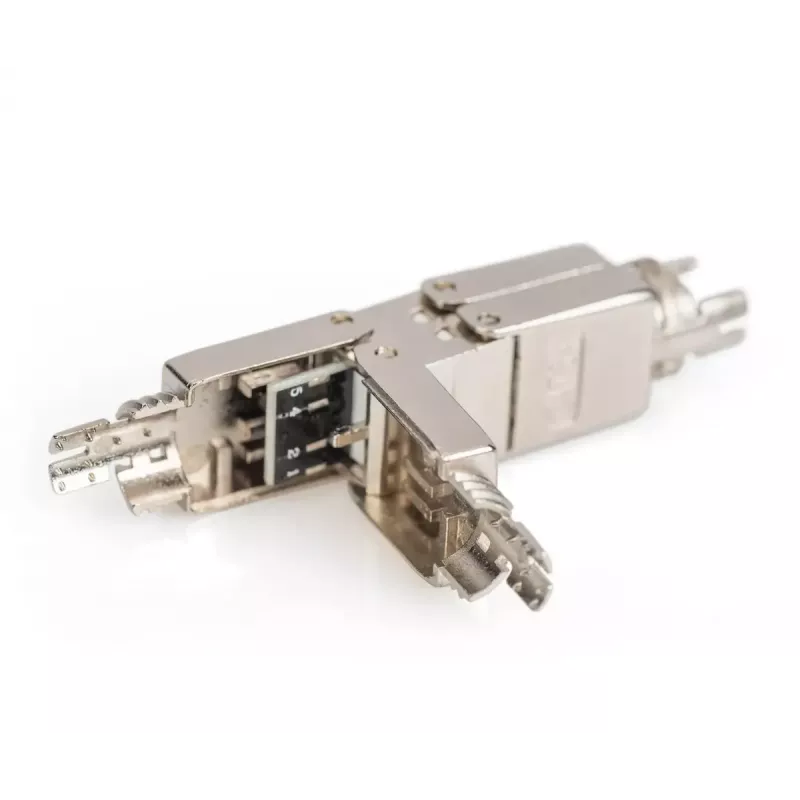

The connector offers tool-free mounting and a screw cable grip for secure fixation. A color-coded LSA insulation-displacement connector and an integrated conductor manager simplify field termination without special tools. A full 360° shield contact and robust metal case provide stable shielding and mechanical durability. Its slim design makes it suitable for tight installation spaces.

Suitable for

• Extending Cat6A / twisted pair cable runs
• Repairing damaged Ethernet cables on site
• Installations requiring PoE, PoE+ or 4PPoE power delivery
• Field terminations where tool-free, fast assembly is required

Key specifications

• Standard: Cat. 6A, up to 500 MHz
• Data rate: 10GBase-T
• Connector type: LSA insulation-displacement (color-coded)
• Shielding: 360° shield contact
• Mounting: tool-free assembly, screw cable grip
• PoE support: IEEE 802.3af, 802.3at, 802.3bt (PoE / PoE+ / 4PPoE)
• Material / colour: stainless steel appearance (nickel/zinc components)
• Dimensions (W×D×H): 72.8 × 11.7 × 14.5 mm
• Pack quantity: 1 piece
• Manufacturer / MPN: DIGITUS DN-93912
• EAN: 4016032458623

How to use

Strip the outer jacket of the twisted pair cable to the length required for the connector. Place the conductors into the color-coded LSA insulation-displacement contacts according to the wiring scheme, use the integrated conductor manager to align pairs, and secure the cable with the screw cable grip. Complete assembly is possible without special tools; ensure the shield is in contact for proper grounding and close the metal housing for a stable connection.

Recommendations

For reliable performance verify cable category (Cat6A recommended) and follow the color coding on the LSA connector. Ensure the shield contact is correctly engaged for shielded cables and avoid excessive bending or strain on the terminated cable to maintain 10GBase-T performance.
