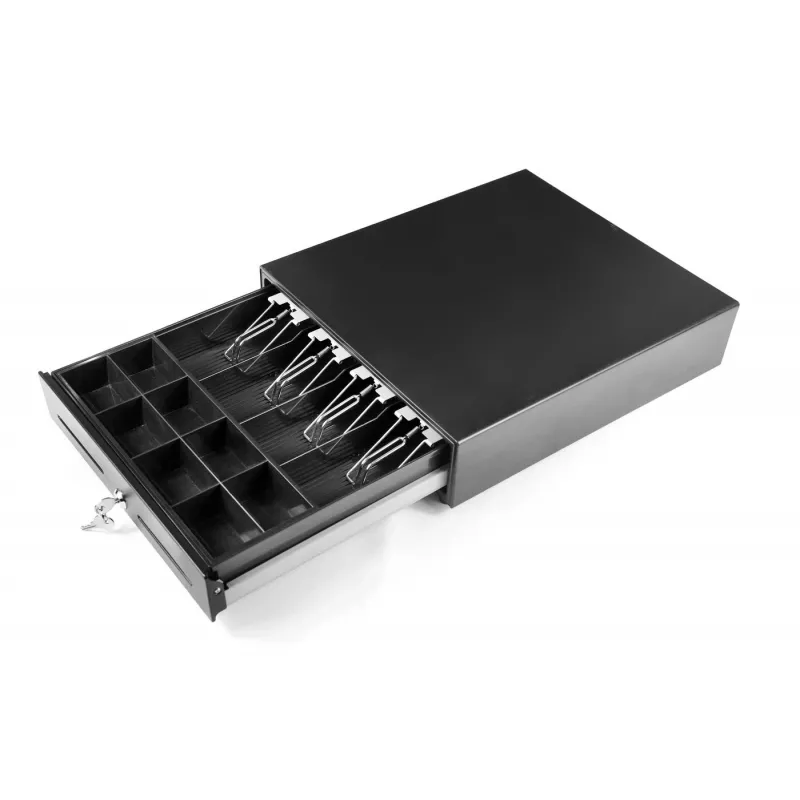

Cash drawer Capture CA-CD410-480B-SAMELOCK — 410 mm width, front bill insert, coin trays 4/8

Capture CA-CD410-480B-SAMELOCK cash drawer is a metal till designed for point-of-sale systems. It features an adjustable bill tray with metal clips, a flexible double-row coin tray with adjustable dividers, a front access slot for checks or receipts, and a heavy-duty ball bearing roller for smooth operation. The drawer supports printer-triggered opening via an RJ11/RJ12 interface and can operate on 6V, 12V, or 24V.

Advantages

The steel construction and ball bearing roller provide durable, reliable performance under frequent use. Adjustable dividers in both bill and coin trays let you organise different denominations efficiently, while the front media slot enables quick insertion of checks or credit card receipts without opening the drawer. Multiple voltage support and an RJ11/RJ12 printer interface allow easy integration with receipt printers for automatic opening.

Suitable for

• Retail point-of-sale counters
• Small to medium-sized shops and kiosks
• Restaurants and cafes using receipt printers
• Any checkout where secure, organised cash handling is required

When it may not be suitable

This cash drawer is a compact model intended for standard retail environments; it may not be suitable where extremely large cash volumes or specialised security features (such as advanced electronic locks or biometric access) are required. Also, automatic opening requires compatible printer interface wiring (RJ11/RJ12) and correct voltage supply.

Key specifications

• Construction: Steel housing with heavy-duty ball bearing roller
• Bill tray: Adjustable dividers, up to 4 compartments, metal clips included
• Coin tray: Double-row with adjustable dividers for up to 8 compartments
• Front access: Media slot for checks, credit card receipts or paper
• Lock: 3-position mechanical key lock
• Interface and power: RJ11 / RJ12 printer interface; supports 6V, 12V, 24V trigger voltages
• Width: 410 mm (model family dimension)

How to use

Install the cash drawer beneath or beside the receipt printer and connect it using the supplied RJ12 cable to the printer’s drawer port. Configure the printer settings to send a drawer-open pulse at the supported voltage (6V, 12V, or 24V). Place bills and coins into the adjustable compartments, secure important notes with the metal clips, and use the 3-position key lock for normal open, locked, or manual-release modes.

What to consider before purchase

• Ensure your receipt printer has an RJ11/RJ12 drawer port and supports the drawer trigger voltage
• Confirm the drawer width (410 mm) fits your counter or under-printer mounting space
• Check whether a mechanical 3-position key lock meets your security requirements

Recommendations

Use the adjustable dividers to separate denominations for faster cash handling and regularly clean the ball bearing roller and track to maintain smooth drawer operation. Verify printer settings and cabling before relying on automatic opening during busy service periods.
