Card Reader LogiLink UA0341 SATA Internal Black

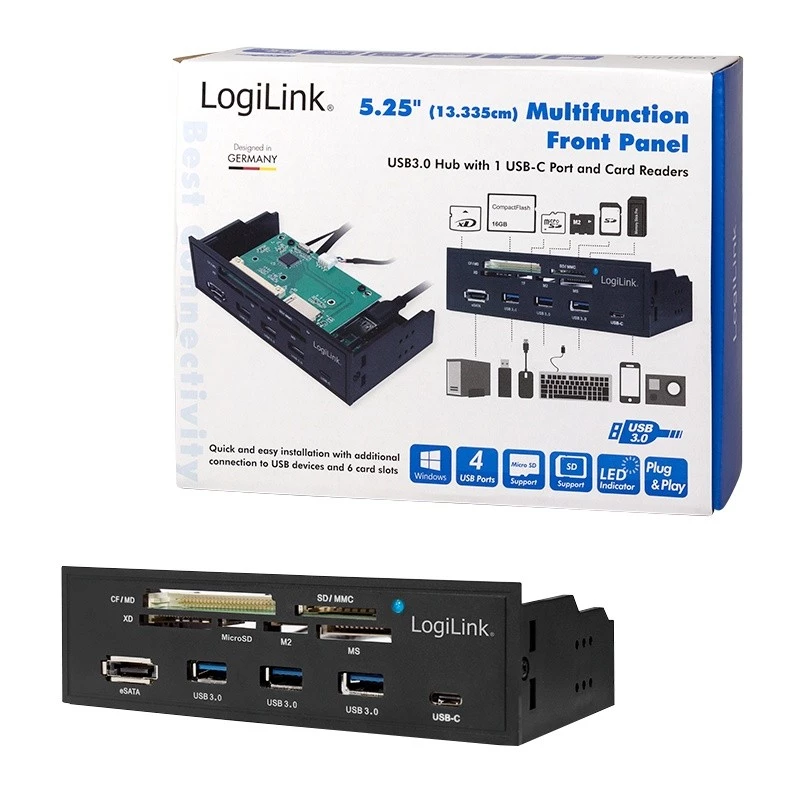

LogiLink UA0341 is a 5.25" internal multifunction front panel card reader that fits into a computer drive bay and provides multiple card slots and external ports for expanded connectivity. It accepts CF, MS Micro (M2), Memory Stick, SD, microSD (TransFlash) and xD cards and includes a USB cable for connection. The unit is finished in black and measures approximately 148 mm × 78 mm × 42 mm, making it a compact solution for adding card reading and additional ports to a desktop PC.

Advantages

The LogiLink UA0341 combines six-card compatibility with several external ports to allow direct transfer of data from popular memory cards while also enabling connection of USB and eSATA devices. Its 5.25" form factor allows simple installation into a standard drive bay without modifying the chassis. The included USB cable simplifies internal connection and setup.

Suitable for

• Photographers and videographers who need to read multiple card formats
• PC users requiring quick access to SD, microSD, CF and other cards
• Workstations that need additional external ports (USB 3.0, USB-C, eSATA)

Key specifications

• Model: LogiLink UA0341
• Installation: Internal, fits 5.25" drive bay
• Supported memory cards: CF, MS Micro (M2), Memory Stick (MS), SD, MicroSD (TransFlash), xD

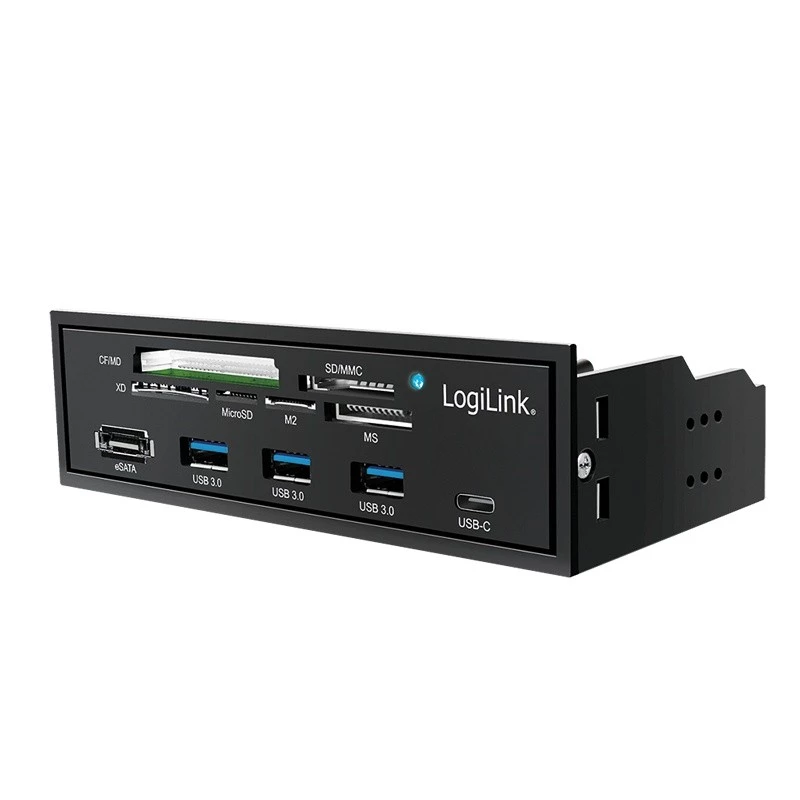

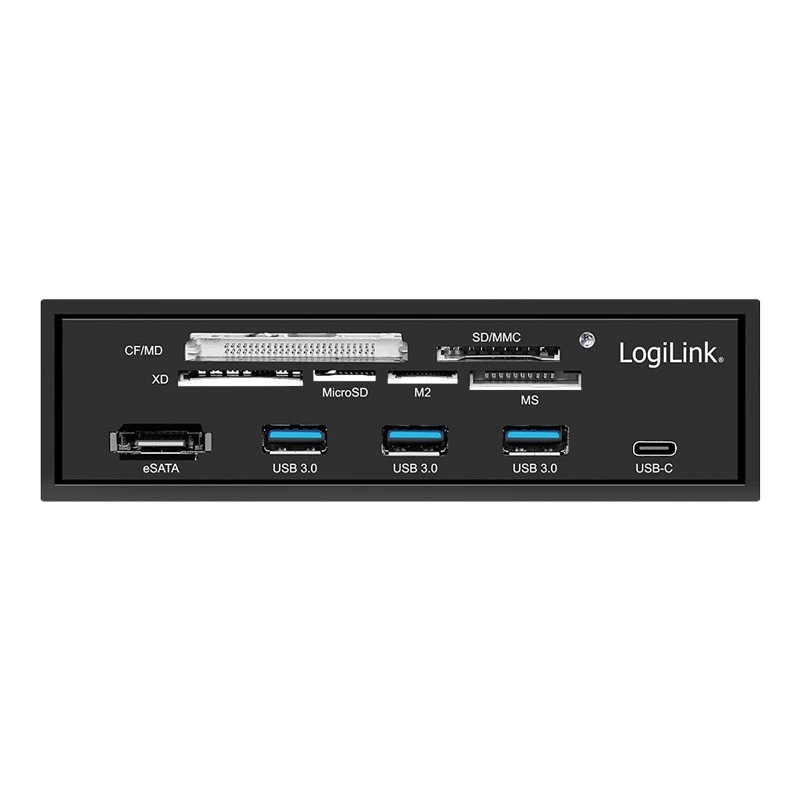

• Ports: three USB 3.0 Type-A, one USB Type-C, one eSATA
• Colour: Black
• Dimensions: 148 mm (W) × 78 mm (D) × 42 mm (H)
• Weight: 0.185 kg

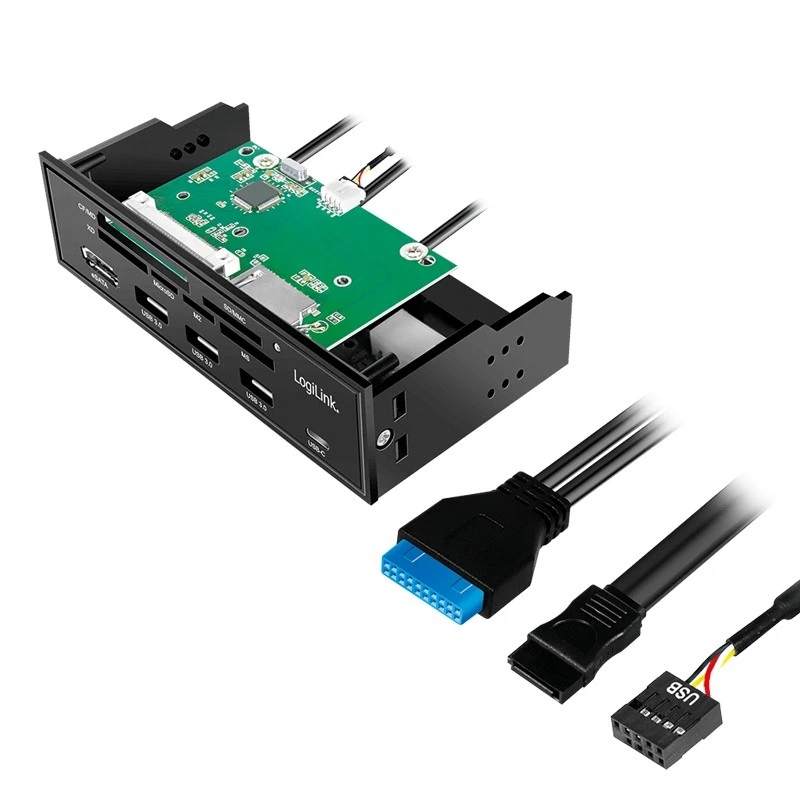

• Package includes: USB cable

How to use

Install the card reader into an available 5.25" drive bay and secure it according to your case manufacturer’s instructions. Connect the internal USB cable to a free motherboard USB header or to an available internal USB connector as supplied. After power-up, insert the appropriate memory card into the matching slot and access files through your operating system’s file manager. Use the external USB or eSATA ports to connect additional devices as required.

Recommendations

Use the reader on a powered-off PC during installation and avoid removing cards while data transfer is in progress. For best transfer speeds, connect high-speed cards to USB 3.0 or eSATA ports and use USB Type-C when supported by the host.
