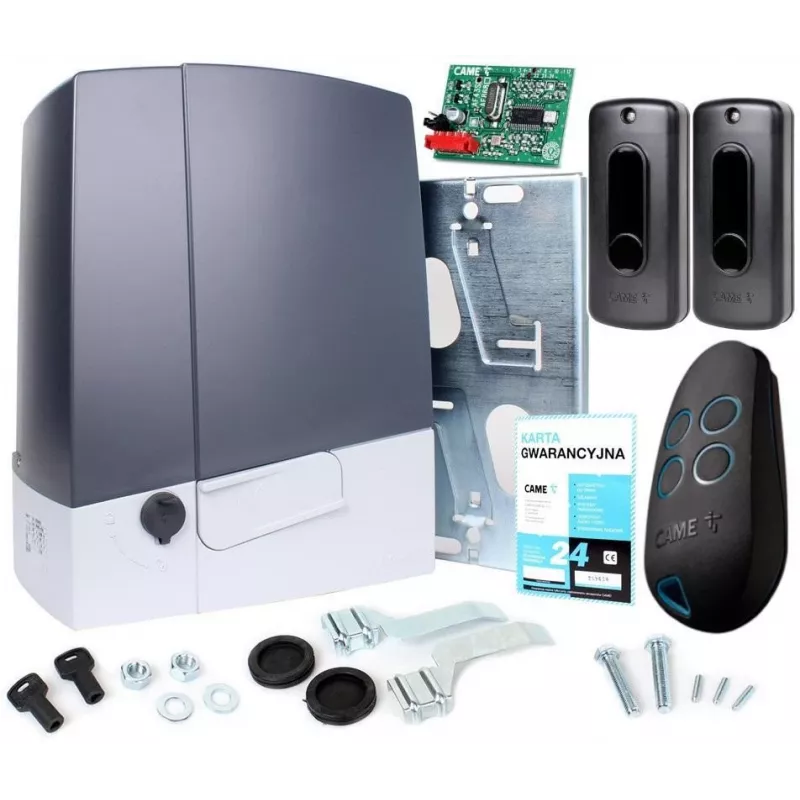

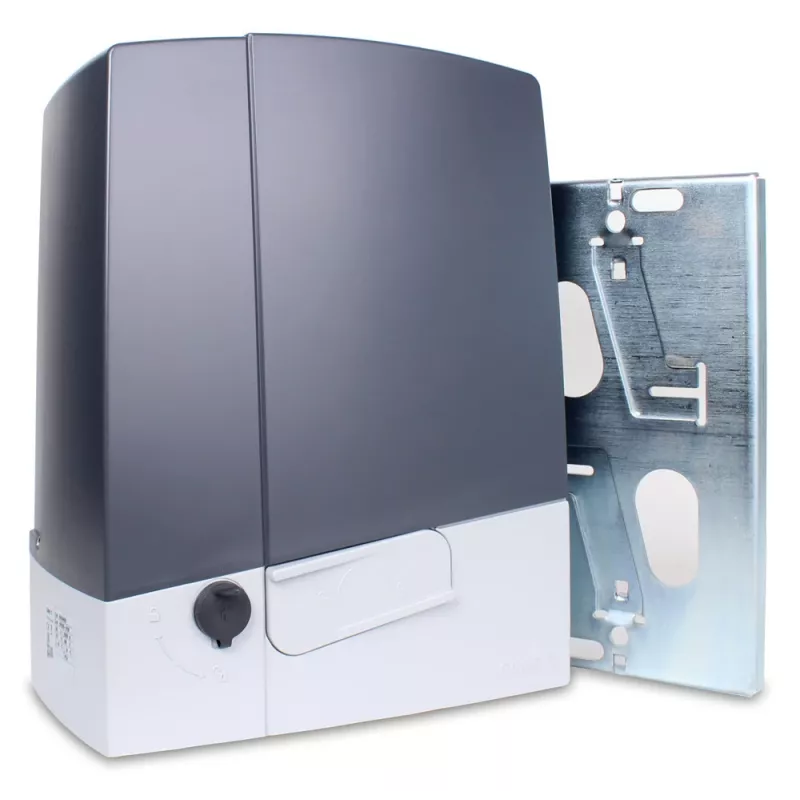

CAME BXV 10 SAFE TOP Sliding Gate Opener Kit for Gates up to 1000 kg

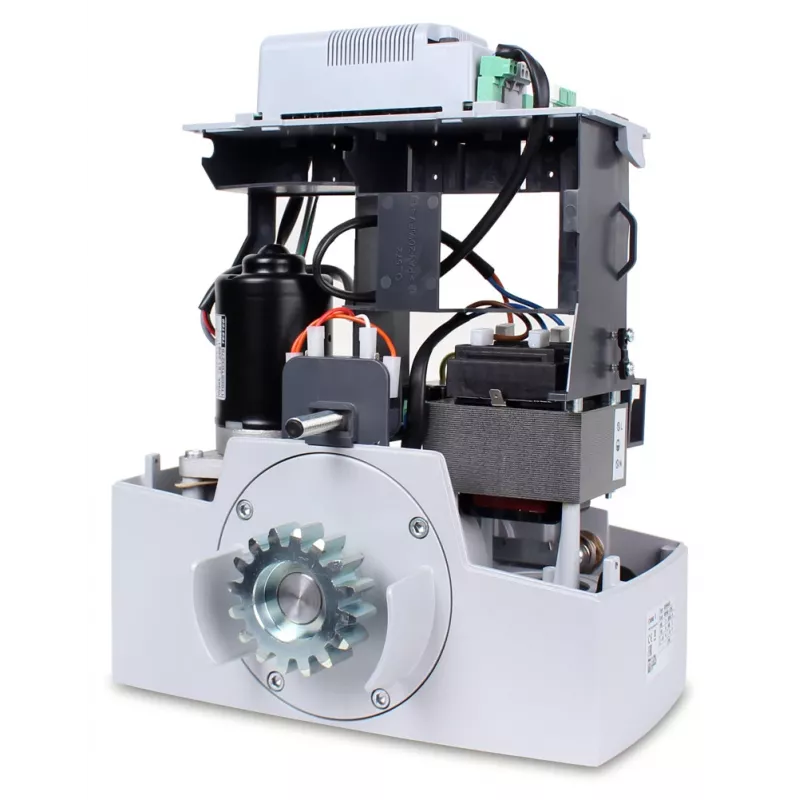

The CAME BXV 10 SAFE TOP is a complete sliding gate opener kit designed for residential and light commercial gates weighing up to 1000 kg. This 24V DC motor kit includes an integrated ZN7 control board, encoder for obstacle detection, and soft start/stop functionality, ensuring smooth and safe operation. Ideal for intensive use, the system is compliant with EN 12453 and EN 60335 safety standards.

Advantages

Reliable 24V DC motor with encoder for precise obstacle detection. Soft start/stop reduces mechanical stress. IP54 protection rating ensures durability in various weather conditions. Easy installation with pre-configured control board.

Suitable for

• Residential sliding gates up to 1000 kg
• Light commercial gates requiring intensive use
• Automation of new or existing sliding gates

Key specifications

• Max Gate Weight: 1000 kg
• Motor Power Supply: 24V DC
• Control Panel Power Supply: 230V AC (50/60Hz)
• Power Consumption: 250 W
• Max Thrust: 400 N
• Gate Opening Speed: 10 m/min
• Duty Cycle: Intensive Use
• Protection Rating: IP54
• Operating Temperature: -20°C to +55°C
• Control Board: ZN7 (Integrated)
• Encoder: Yes (for obstacle detection)
• Soft Start/Stop: Yes
• Obstacle Detection: Yes
• Radio Frequency: 433.92 MHz
• Safety Standards: EN 12453, EN 60335-1, EN 60335-2-103
• Motor Type: Geared Motor

Recommendations

For optimal performance, ensure the gate is in good mechanical condition and properly lubricated. Professional installation is recommended to comply with safety standards.
