CAME ATS Set for Double-Swing Gates 24V 300N with ZL65N Control Panel and Radio Kit

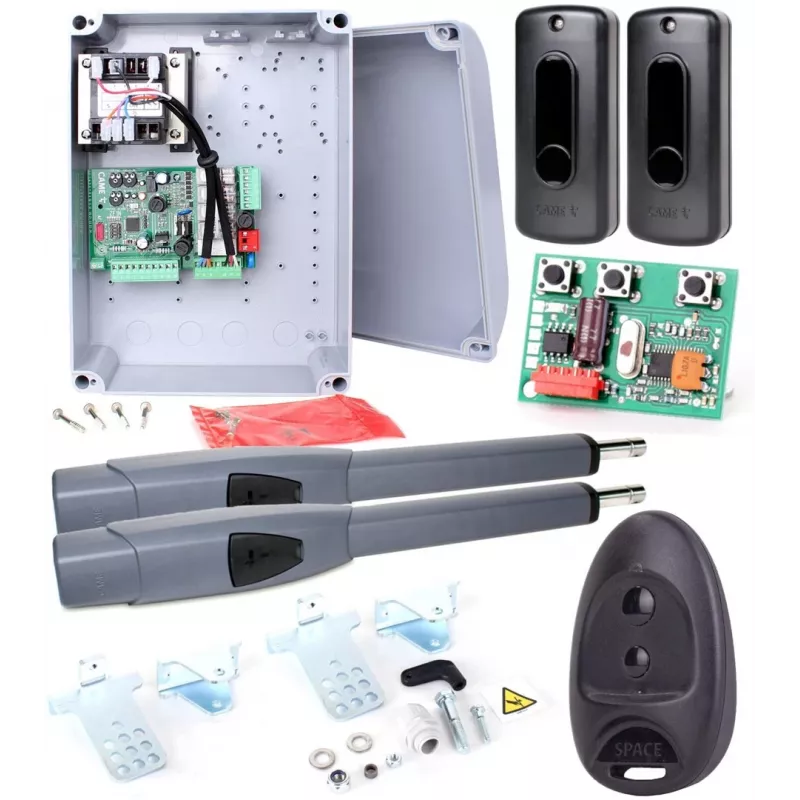

Experience smooth, silent automation for double-swing gates with the CAME ATS set, engineered around a 24V DC electromechanical drive that delivers 300 N of thrust per leaf. This complete kit brings together two ATS3024N actuators, a ZL65N control panel with integrated 433.92 MHz receiver, two TOPD4RBS remote controls, a DIR10 photocell pair, a KLED24 flashing light, and a TOP-A433N antenna—everything needed for a professional installation.

Overview

Built for residential and light commercial entrances, the CAME ATS set handles leaves up to 3 metres in length and 400 kg per leaf. The encoder-based control system provides precise obstacle detection and soft start/stop, reducing mechanical stress and extending gate life. The self-locking mechanism keeps the gate securely closed without the need for electric locks, while the IP44-rated aluminium actuators withstand outdoor conditions from -20°C to +55°C.

What stands out

• 24V DC motor ensures quiet, low-energy operation with smooth acceleration and deceleration.
• Encoder technology enables accurate obstacle detection and adjustable force, enhancing safety.
• Self-locking design prevents manual opening when the gate is closed, adding security.
• Comprehensive kit includes all essential components: actuators, control panel, receiver, remotes, photocells, flashing light, and antenna.
• Control panel operates on 230V AC and features a built-in 433.92 MHz radio receiver for wireless control.
• IP44 protection rating on actuators ensures durability against dust and water splashes.

Technical details

• Gate type: double-swing gates
• Max leaf length: 3 m per leaf
• Max leaf weight: 400 kg per leaf (at 3 m length)
• Motor type: electromechanical
• Motor power supply: 24V DC
• Control panel input voltage: 230V AC (50/60 Hz)
• Max thrust: 300 N
• Duty cycle: intensive use
• Protection rating (actuators): IP44
• Operating temperature: -20°C to +55°C
• Opening time (90°): 15–20 seconds
• Max opening angle: 110°
• Encoder: yes (for obstacle detection)
• Self-locking: yes
• Control panel model: CAME ZL65N
• Radio frequency: 433.92 MHz
• Actuator dimensions (each): 800 x 100 x 100 mm (L x W x H)
• Actuator casing material: aluminium
• Kit components: 2x ATS3024N actuators, 1x ZL65N control panel, 1x AF43S radio receiver, 2x TOPD4RBS remotes, 1x DIR10 photocell pair, 1x KLED24 flashing light, 1x TOP-A433N antenna

Our verdict

The CAME ATS set is a reliable, all-in-one solution for automating double-swing gates. Its 24V technology and encoder-based safety features make it a top choice for installers seeking performance and compliance with European standards.
