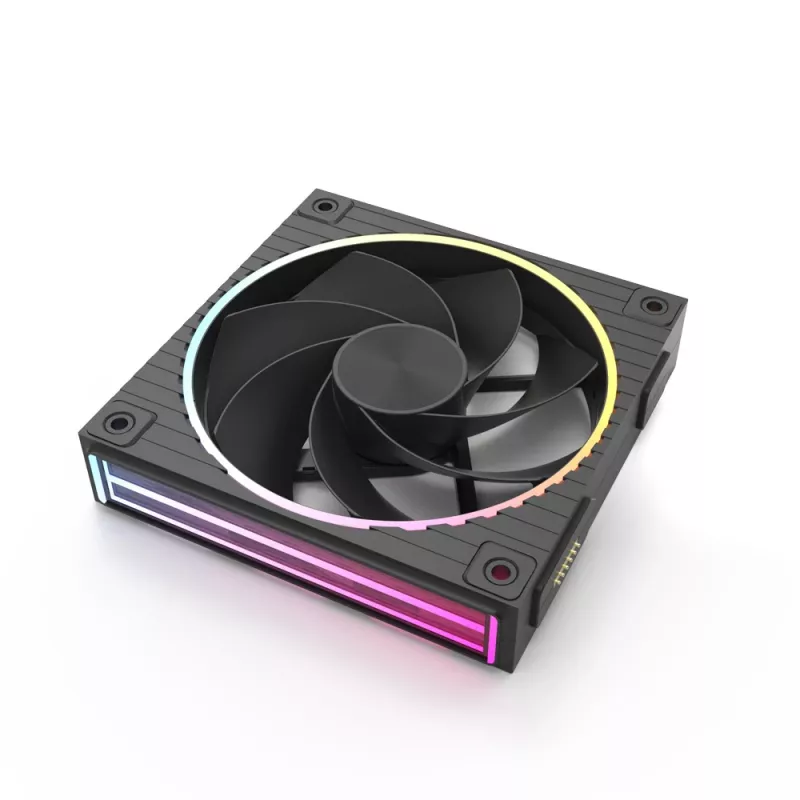

Zalman ZM-DF120R, 120mm Daisy Chain Fan, Reverse, 2300RPM, Black

High airflow and static pressure often come with high noise, but the Zalman ZM-DF120R solves that with a reverse-oriented blade design that pushes air efficiently while staying quiet. This 120mm fan is built for radiator and case cooling where conventional fans struggle with clearance or airflow direction, delivering up to 68.3 CFM at just 30 dBA.

Who is it for

PC builders and enthusiasts who need a reliable cooling solution for radiators, CPU coolers, or chassis intake with restricted space. Its reverse airflow design is ideal for setups where the fan must be mounted in a pull configuration or where the motor side faces the exterior, ensuring optimal cooling without compromising aesthetics.

Main features

• Reverse blade design directs airflow opposite to standard fans, perfect for visible intake setups.
• Daisy chain support for both PWM and ARGB simplifies cable management and reduces clutter.
• Fluid Dynamic Bearing (FDB) ensures long life (50,000 hours) and low noise operation.
• Addressable RGB lighting with 5V 3-pin connector synchronizes with motherboard software.
• Wide speed range from 500 to 2300 RPM with PWM control for precise cooling.

Specifications

• Fan diameter: 120 mm
• Fan thickness: 25 mm
• Speed: 500 - 2300 RPM (±10%)
• Max airflow: 68.3 CFM
• Max static pressure: 2.0 mmH2O
• Noise level: 10 - 30 dBA
• Bearing: Fluid Dynamic Bearing (FDB)
• Connector: 4-pin PWM
• ARGB connector: 3-pin (5V-D-G)
• Rated voltage: 12V (fan), 5V (LED)
• MTTF: 50,000 hours
• Colour: Black

Tips

When daisy chaining multiple fans, ensure the total current draw does not exceed the motherboard header's limit. For best ARGB effects, use a compatible controller or motherboard software.
