Cable Tie Mount Fischer 94674

The Fischer nail clamp MNS is a pre-assembled fastening element that combines a zinc-plated nail and a clamp for quick mechanical fixing of cables. The clamp holds the cable in place while the nail is driven in with a hammer. The MNS nail clamp is suitable for securing cables with diameters from 7 mm to 11 mm in substrates such as wood, wood-based materials, gypsum board, aerated concrete and vertically perforated brick.

Advantages

The pre-assembled zinc-plated nail allows for fast, single-step installation, reducing assembly time. The compact design requires only a small mounting area, which simplifies work in narrow or confined spaces. The nail clamp covers a range of cable diameters (7–11 mm), providing a consistent and reliable mechanical fixation for different cable sizes.

Suitable for

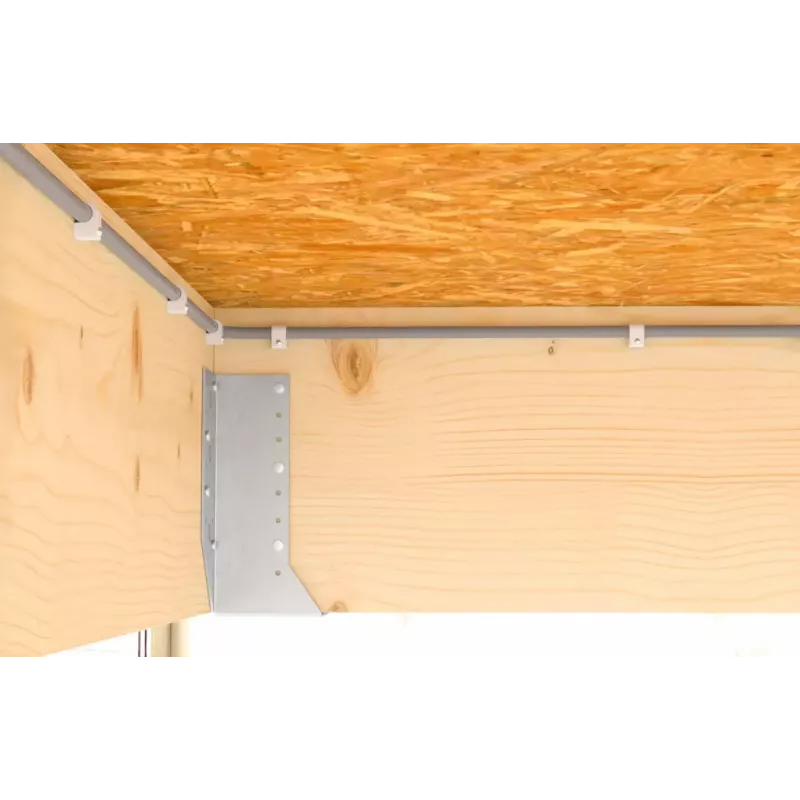

• Securing electrical or communication cables (7–11 mm) in wooden structures
• Fixing cables on gypsum boards and interior partition walls

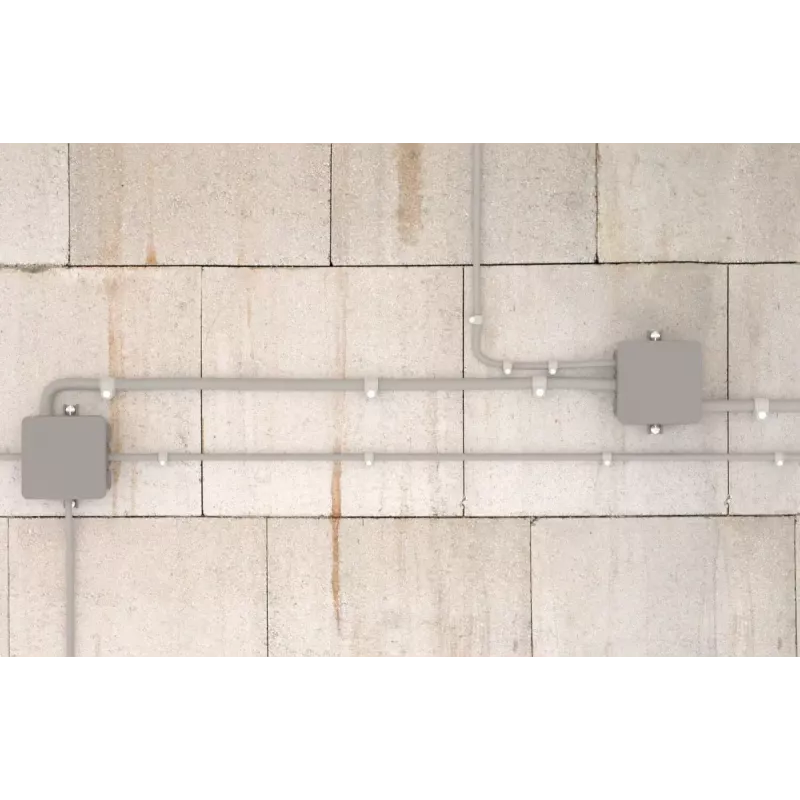

• Mounting cables on aerated concrete and vertically perforated brick
• Installations where limited mounting space requires compact fasteners

Key specifications

• Product type: Nail clamp with pre-assembled nail (MNS)
• Material: Clamp with zinc-plated nail
• Cable diameter range: 7 mm – 11 mm
• Suitable substrates: Wood, wood-based materials, gypsum board, aerated concrete, vertically perforated brick

How to use

Place the nail clamp over the cable so the cable sits inside the clamp. Position the clamp with the cable against the chosen substrate. Drive the pre-assembled nail into the substrate using a hammer until the clamp is securely fastened. Ensure the clamp holds the cable without pinching or damaging its insulation.

Recommendations

Use the MNS nail clamp only on the recommended substrates and within the specified cable diameter range (7–11 mm). Avoid excessive hammering that could damage the clamp or the substrate. For outdoor or highly corrosive environments choose corrosion-resistant alternatives if required by the installation conditions.
