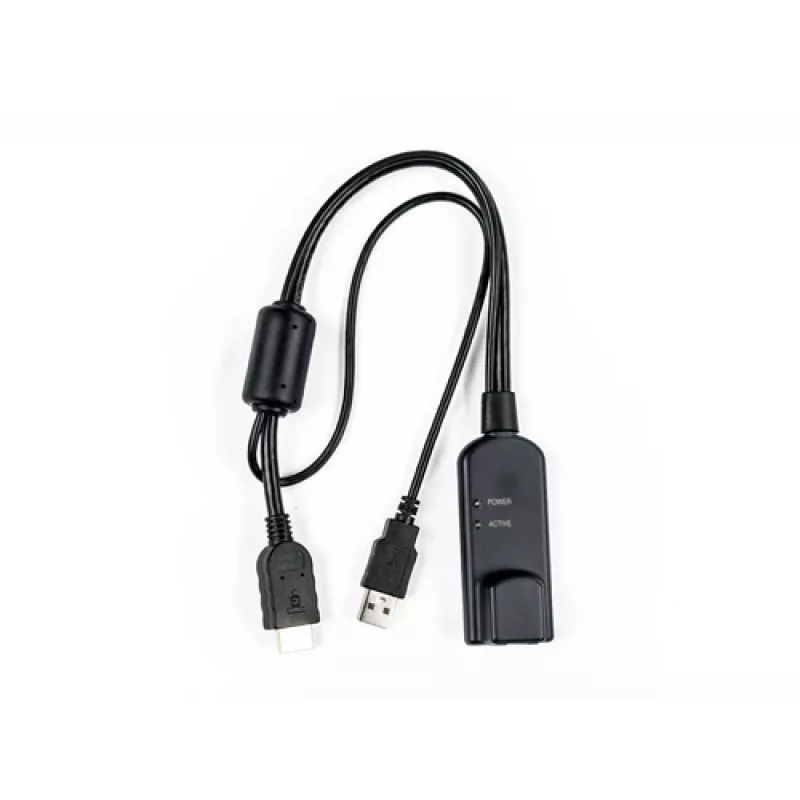

Vertiv Avocent MPUIQ-VMCHD Server Interface Module - Video / USB Extension

The Vertiv Avocent MPUIQ-VMCHD Server Interface Module (SIM) is a compact, wired KVM extender that enables remote access to servers via USB keyboard and mouse, and VGA video. Designed for use with Avocent DSR, DSView, and MergePoint Unity KVM switches, this module supports CAT5/5e/6 cabling for distances up to 300 meters. It features automatic skew compensation and keep-alive functionality to maintain connectivity.

Advantages

This SIM module simplifies server management by extending KVM signals over standard Ethernet cabling, reducing cable clutter and cost. Its bus-powered design eliminates the need for an external power supply, and automatic skew compensation ensures crisp video quality even over long cable runs. The keep-alive feature prevents server disconnection during switch reboots.

Suitable for

• Data centers requiring remote server access
• IT administrators managing multiple servers via KVM switches
• Environments using Avocent DSR, DSView, or MergePoint Unity switches
• Applications needing USB keyboard/mouse and VGA video extension

Key specifications

• Device Type: KVM Extender / Server Interface Module
• Connectivity: Wired
• Server Connectors: 1 x USB Type A, 1 x VGA (HD-15)
• KVM Switch Connector: 1 x RJ-45
• Max Video Resolution: 1600 x 1200 @ 60Hz
• Supported Cable: CAT5, CAT5e, CAT6
• Power Source: Bus-powered (from KVM switch)
• LED Indicators: Link, Activity
• Form Factor: External, compact
• Color: Black

Recommendations

For optimal performance, use high-quality CAT6 cabling and ensure your KVM switch firmware is up to date. This module is ideal for extending KVM signals in server rooms and data centers where space and power efficiency are critical.
