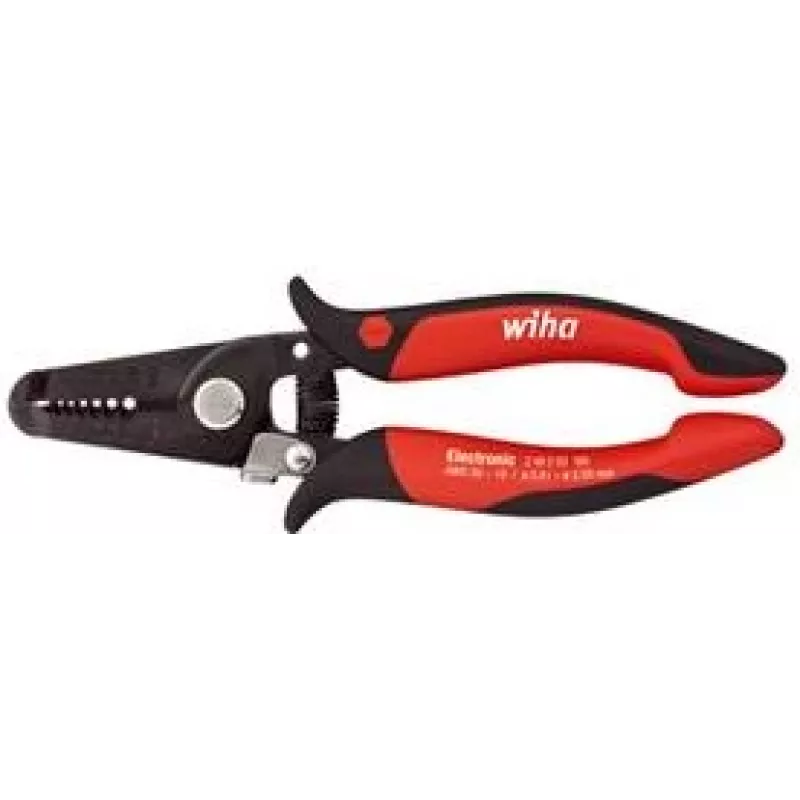

Cable stripper Wiha Z 49 2 03

The Wiha Z 49 2 03 cable stripper is made from C 70 special tool steel and combines a wide, long head with a ridged gripping surface, integrated shears blade and precise wire stripping stations. It provides a stripping capacity from 0.81 mm to 2.59 mm (AWG 20–10) and has an opening spring with a locking mechanism. With a length of 180 mm and a weight of 119 g, the tool is designed for controlled handling and repeated use.

Advantages

The tool’s C 70 special tool steel construction ensures durability and edge retention. The wide, long head with ridged gripping surface improves hold on conductors and components. Built-in shears and defined wire stripping stations for 0.8 / 1.0 / 1.3 / 1.6 / 2.0 / 2.6 mm allow fast, repeatable stripping. The opening spring and locking mechanism support safe storage and one-handed operation.

Suitable for

Key specifications

How to use

Select the stripping station matching the wire diameter, insert the insulated conductor into the appropriate slot, close the handles to engage the blade and strip the insulation with a steady pulling motion. Use the shears blade to cut wire as needed and the ridged gripping surface to hold components securely. Release the locking mechanism to open the tool for repeated operations.

Recommendations

Use the wire stripper only on insulated single‑core wires within the specified diameter range. Avoid cutting hardened steel or materials other than electrical conductors. Keep blades clean and inspect the tool regularly for wear; replace if stripping becomes imprecise.
