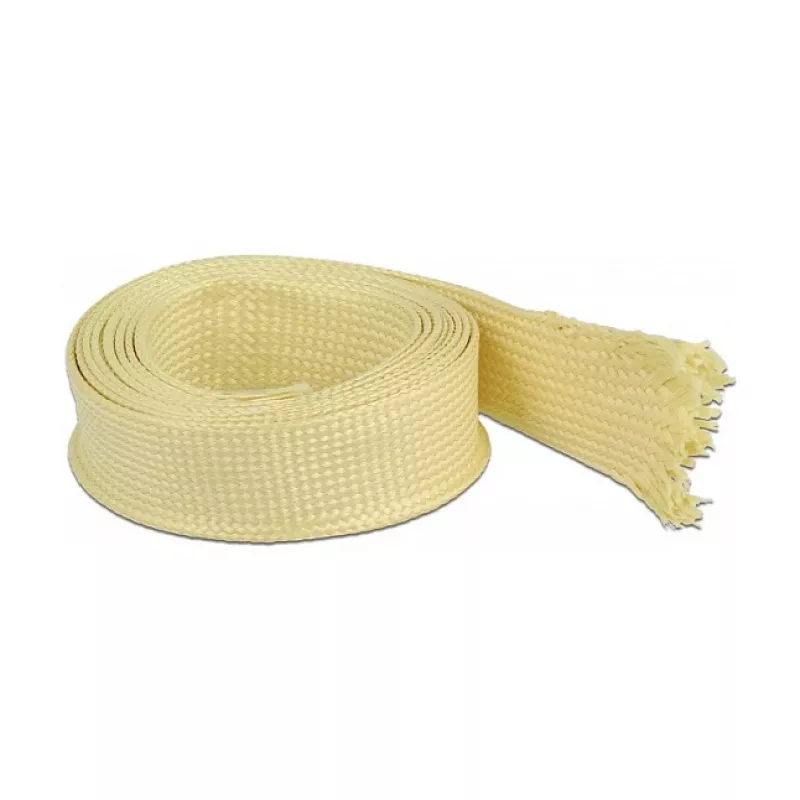

Cable Sleeve DeLOCK 20801 Yellow

The DeLOCK 20801 cable sleeve in yellow is a braided protective sleeve made from aramid fibers, designed to protect cables, tubes and wires in high-temperature and mechanically demanding environments. It offers a wide operating temperature range from -170 °C to 250 °C and is supplied as a single piece per pack.

Advantages

The aramid construction provides excellent temperature resistance, high tensile strength and strong abrasion resistance. The sleeve is highly flexible and stretchable, allowing it to accommodate several cables or wires with varying diameters while protecting them from excessive bending and mechanical wear. Its robust fiber structure ensures long-term durability under load.

Suitable for

• Protection of electrical cables in industrial equipment
• Routing and bundling of wires and tubes in machinery systems
• High-temperature installations and environments requiring thermal resistance

Key specifications

• Brand: DELOCK
• Model / MPN: 20801
• EAN: 4043619208012
• Colour: Yellow
• Material: Aramid fibers
• Operating temperature range: -170 °C to 250 °C
• Packaging: 1 piece per pack

How to use

Slide the braided sleeve over the cables, wires or tubes to be protected, expanding the sleeve as needed thanks to its stretchability. Position the sleeve so that it covers the area exposed to heat or abrasion. For bundling multiple conductors, gather them together and then insert into the sleeve. Secure the sleeve ends with appropriate clamps, heat shrink tubing or cable ties if required.

Recommendations

Because the aramid fiber structure is very strong, cut the braided sleeve only with a suitable cutting tool designed for aramid materials; Delock scissors model 90554 are recommended for shortening. Inspect and secure ends after cutting to prevent fraying.
