Cable gender changer DeLOCK 93238

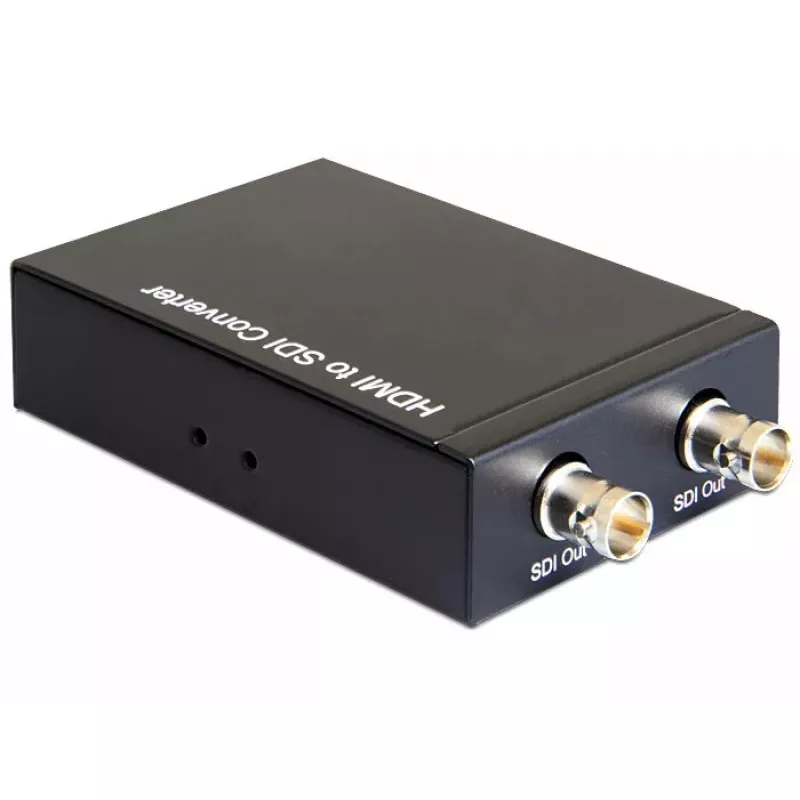

This DeLOCK 93238 adapter converts an HDMI signal to an HD- or 3G-SDI signal, allowing connection of HDMI-equipped devices such as cameras or players to SDI equipment. The unit features an HDMI-A connector and two BNC connectors for transmission over standard 75 Ω coaxial cable with BNC connectors. The adapter is black and suitable for integrating HDMI sources into SDI-based recording or monitoring setups.

Advantages

The adapter supports conversion from HDMI to HD-SDI and 3G-SDI, providing compatibility between consumer HDMI devices and professional SDI equipment. Its compact design and standard BNC interfaces enable use with existing 75 Ω coaxial cabling. The single-piece unit simplifies connections without requiring additional converters or complex wiring.

Suitable for

Key specifications

How to use

Connect the HDMI-A plug of the adapter to the HDMI output of the source device. Use standard 75 Ω coaxial cables with BNC connectors to link the adapter's BNC outputs to the SDI input of the target device (recorder, monitor, or switcher). Power the source device as required and configure output resolution and format on the source if needed to match the receiving SDI equipment.

Recommendations

For reliable transmission, use high-quality 75 Ω coaxial cables and firm BNC connections. Verify that the source device outputs an SDI-compatible HDMI format (resolution and frame rate) supported by the receiving equipment. Avoid bending or stressing the connectors during installation.
