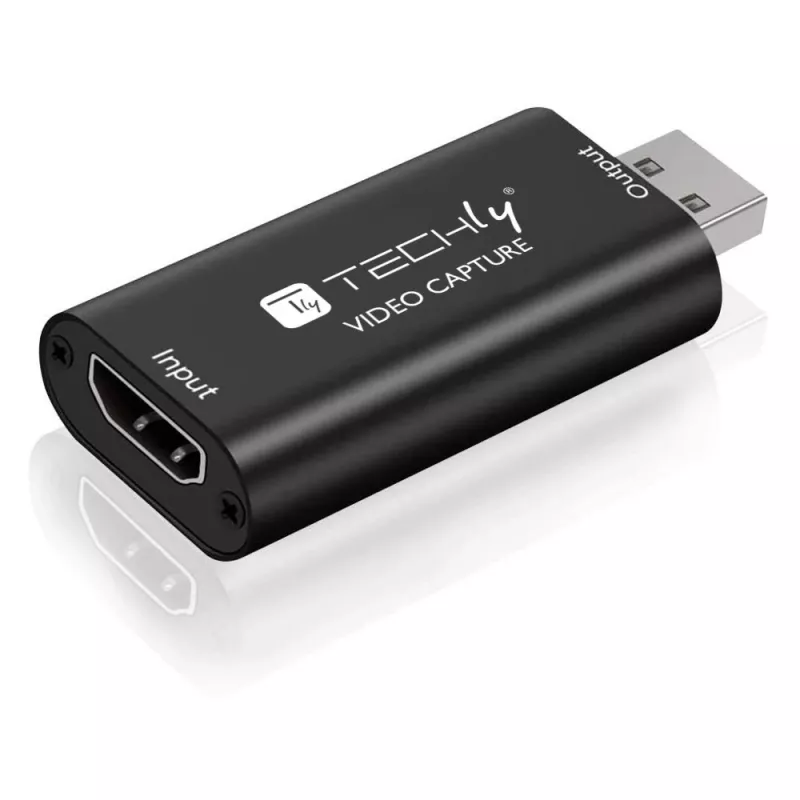

Video signal converter TECHLY I-USB-VIDEO-1080TY — HDMI to USB Type-A, 1920×1080@60Hz, 12-bit, USB powered

The I-USB-VIDEO-1080TY is a USB video capture card that captures HDMI audio and video and transmits them to a computer or smartphone via a USB connection for live preview and recording. It accepts up to 4K at 60 Hz input and outputs up to 1920 × 1080 at 60 Hz. Its compact size makes it easy to carry and use in different recording or streaming setups.

Advantages

The device provides simultaneous HDMI audio and video capture with reliable USB transmission, supports high-resolution 4K 60Hz input while delivering full HD 1080p60 output, and is compact enough for portable use. It is compatible with common recording and streaming workflows and designed for straightforward setup.

Key specifications

• Model: I-USB-VIDEO-1080TY
• Input: HDMI up to 4K @ 60Hz
• Output: USB to host, maximum 1920 × 1080 @ 60Hz
• Function: Simultaneous HDMI audio and video capture

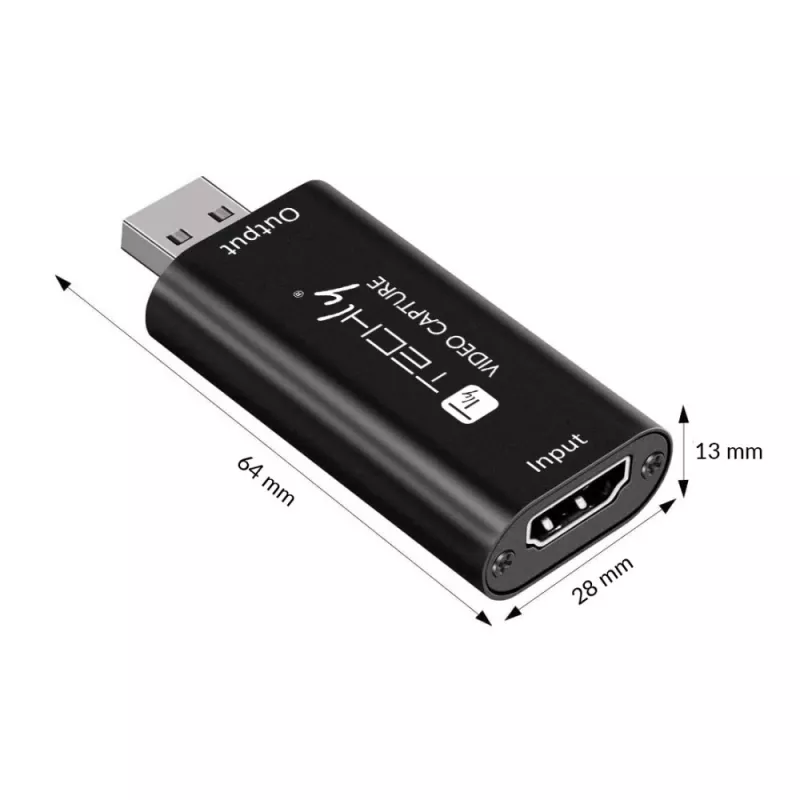

• Form factor: Compact and portable

How to use

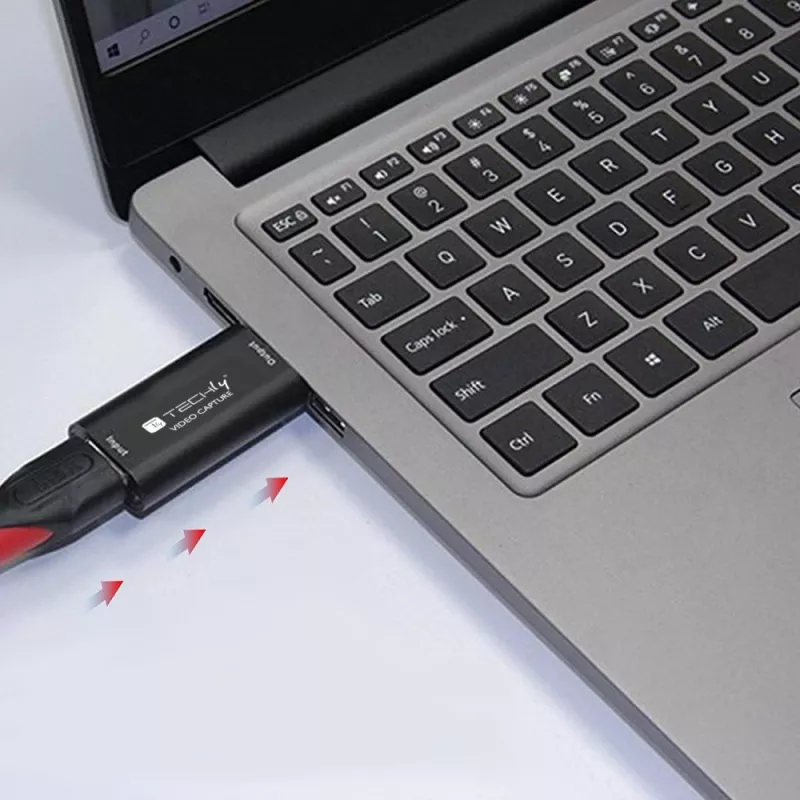

Connect an HDMI source (camera, console, or other device) to the capture card input, then plug the card into a computer or smartphone using the USB port. Use compatible capture or streaming software on the host device to preview and record the incoming signal. Ensure the host supports the output resolution 1920 × 1080 @ 60Hz for optimal performance.

Recommendations

For stable operation, use quality HDMI cables and a USB port that provides sufficient bandwidth. If recording at high input resolutions, verify that your host device and software support the required processing and storage performance.
