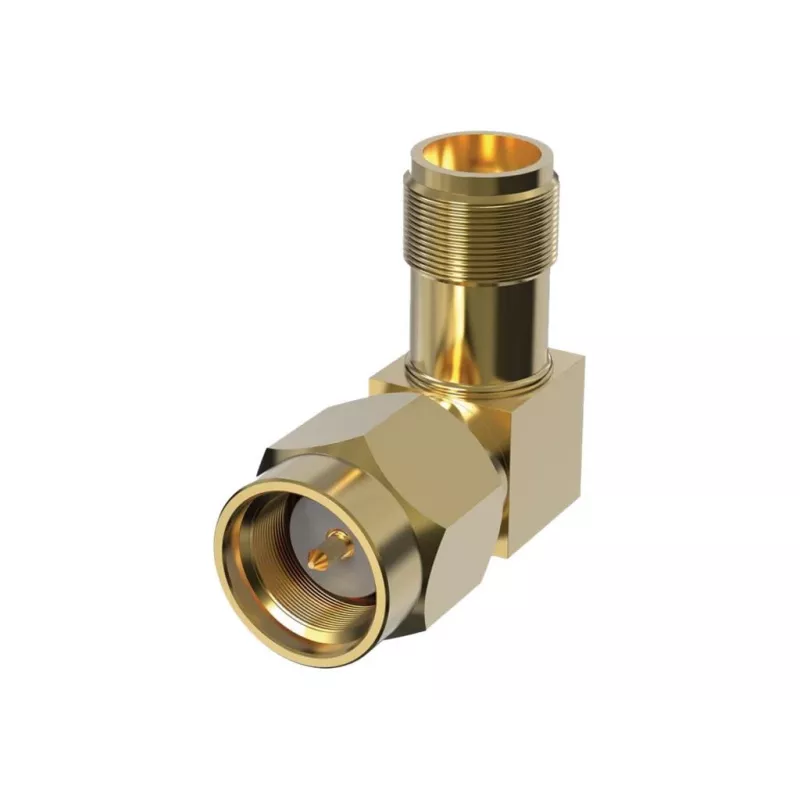

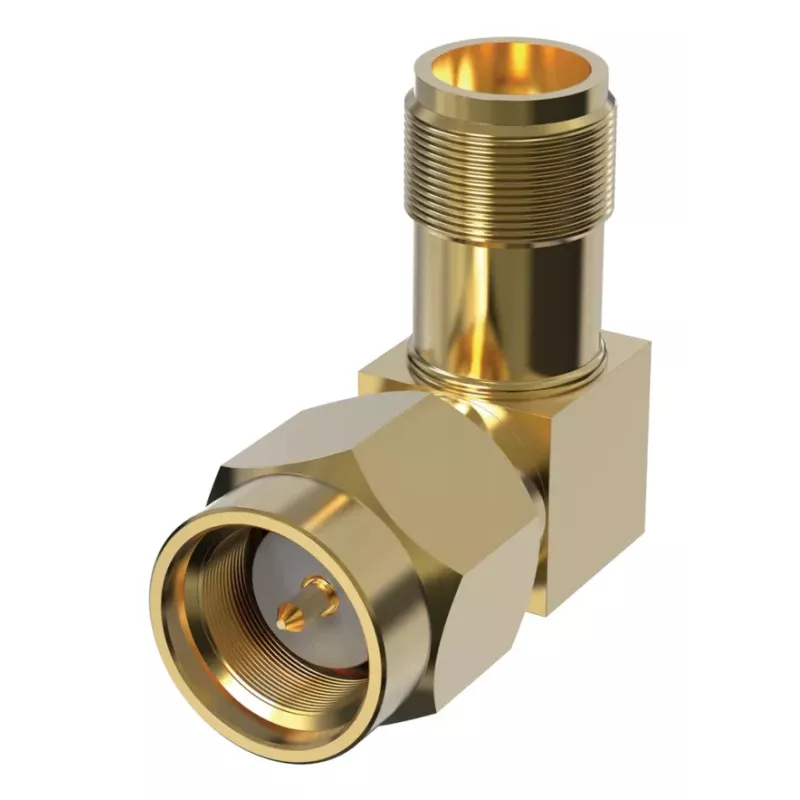

Cable Gender Changer Axis 02470-021 Gold

90° angle adaptor between sensor unit and cable. This adaptor enables flexible installation of an AXIS TU6004-E Cable or AXIS TU6005 Plenum Cable with the sensor unit by providing a 90° angle between the sensor unit and the cable, avoiding the need to bend the cable and making it suitable for installations in confined spaces. The product corresponds to the AXIS 02470-021 gold cable gender changer designed to facilitate connections between devices with different gender connectors.

Advantages

The AXIS 02470-021 gold adaptor provides a fixed 90° connection that reduces stress on cable ends and connectors, improving longevity of both cable and sensor unit. Its compact design allows neat installation in tight or recessed locations. Compatible with AXIS TU6004-E and AXIS TU6005 plenum cables, it removes the need for sharp cable bends and simplifies alignment between sensor and cable connector types.

Suitable for

• Installing AXIS TU6004-E or AXIS TU6005 Plenum Cable with sensor units in confined or recessed spaces
• Situations where a 90° cable exit is required to avoid cable bending
• Connecting devices with mismatched connector genders where a compact angle adaptor is needed

Key specifications

• Brand: AXIS
• Manufacturer part number (MPN): 02470-021
• EAN: 7331021077935
• Finish: gold
• Function: 90° angle cable gender changer / adaptor for sensor units
• Compatible cables: AXIS TU6004-E, AXIS TU6005 Plenum Cable

How to use

Align the adaptor with the sensor unit connector and attach it according to the connector type until secure. Then connect the AXIS TU6004-E or AXIS TU6005 cable to the adaptor, ensuring the cable engages fully. The adaptor creates a right-angle exit so do not force or bend the cable; route the cable along the new angle to maintain strain-free installation.

Recommendations

Use the adaptor where space constraints prevent straight cable routing. Verify compatibility with the specific sensor model and cable type before installation and avoid excessive torque when tightening connectors to prevent damage.
