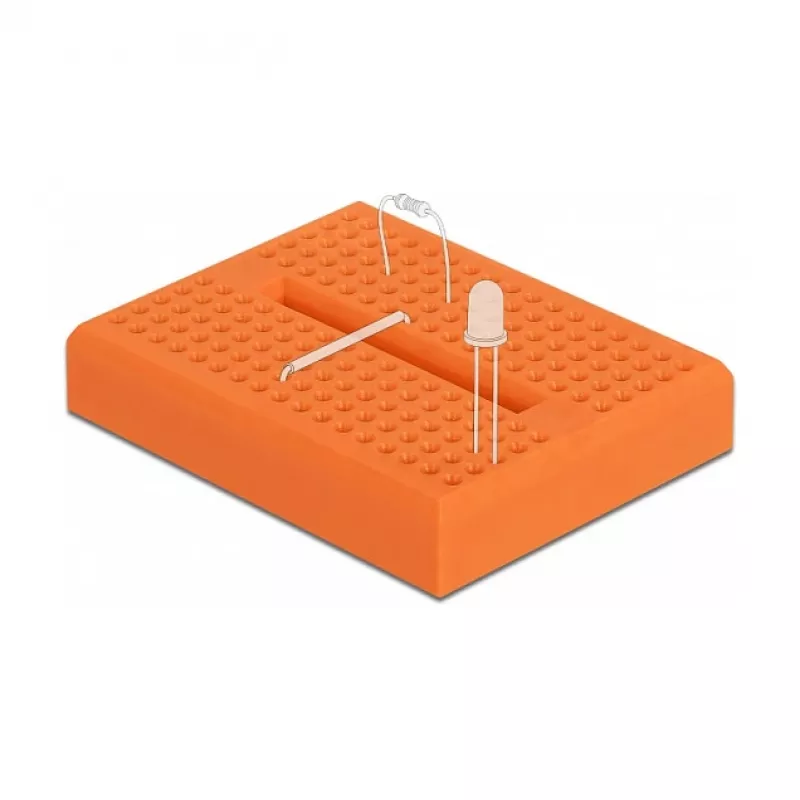

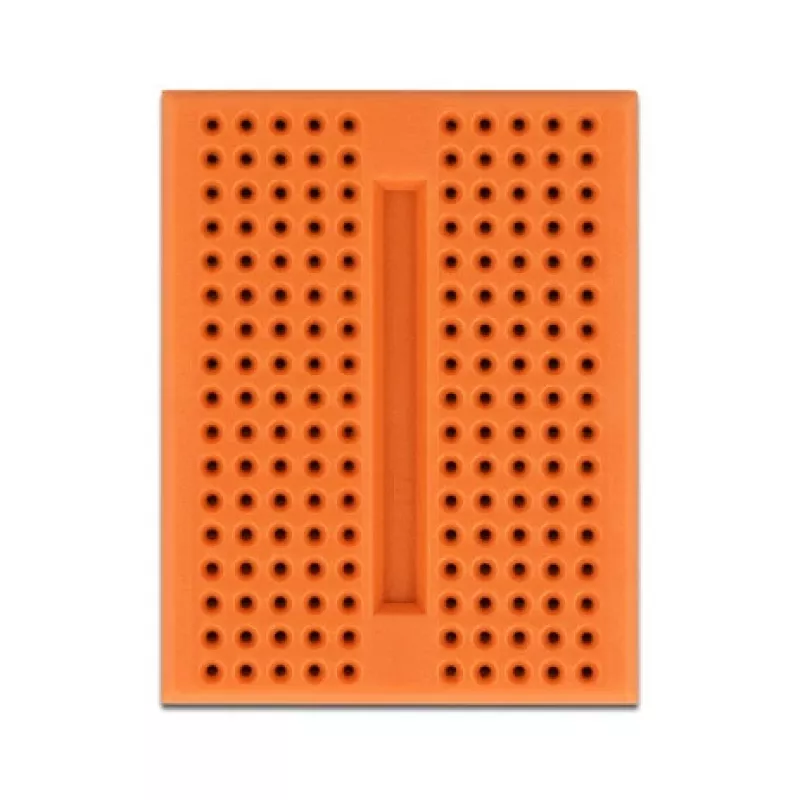

Breadboard DELOCK 18319, plastic prototype board, orange, 36×46×10 mm

DELOCK 18319 is a compact plastic prototype breadboard in orange designed for fast solderless assembly and modification of small electronic circuits. With dimensions of 36×46×10 mm, it is lightweight and intended for quick connections, component placement and short-term testing during development and troubleshooting.

Advantages

The breadboard allows rapid, solder-free prototyping by repositioning components as needed and supports common through-hole parts such as transistors, diodes, LEDs and capacitors. It includes an adhesive backing for easy mounting on smooth surfaces and can alternatively be secured with two screws. Its small size makes it convenient for confined workspaces and portable test setups.

Suitable for

• Arduino shield prototyping and small microcontroller projects
• Switching tests and circuit validation
• Hobby electronics, laboratory experiments and educational use
• Quick component testing and troubleshooting of PCB designs

Key specifications

• Brand: DELOCK
• Model / MPN: 18319
• EAN: 4043619183197
• Type: Plastic prototype breadboard (solderless)
• Color: Orange
• Dimensions: 36 × 46 × 10 mm (W × D × H)

How to use

Place the breadboard on a clean, smooth surface and remove the protective film from the adhesive backing if permanent mounting is desired; alternatively, align and fix it with two screws through the provided mounting holes. Insert component leads into the contact holes to form electrical connections without soldering, and reposition parts as required to modify the circuit. Use standard through-hole components compatible with the contact spacing of small prototype boards.

Recommendations

The breadboard is intended for temporary assemblies and experimental setups; avoid exposing it to high temperatures or heavy mechanical stress, and check connections before powering the circuit to prevent component damage.
