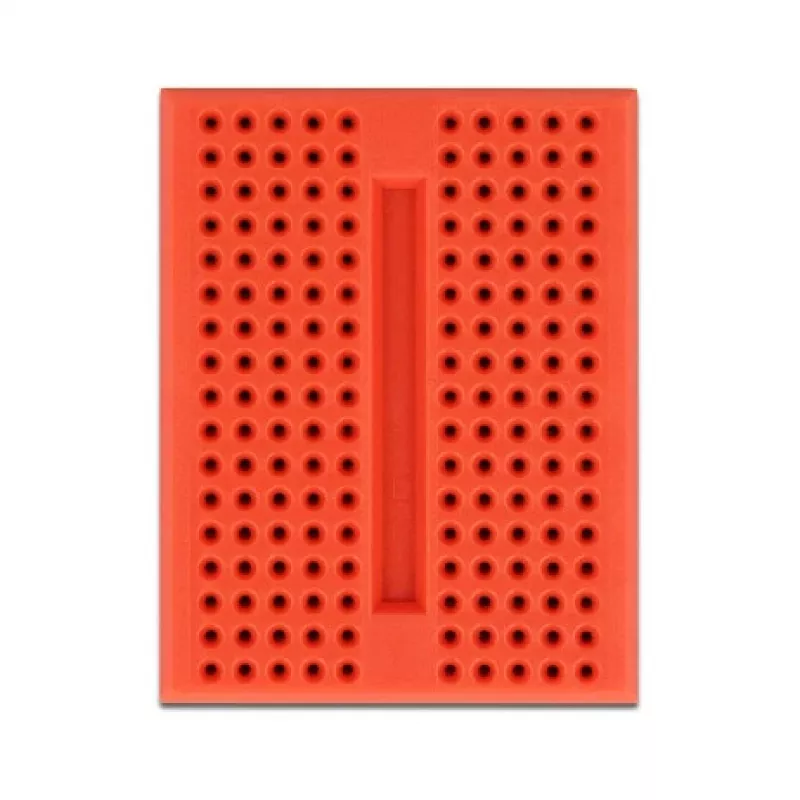

Breadboard DELOCK 18318 — plastic solderless prototype board, 36 × 46 × 10 mm, red

DELOCK 18318 is a compact plastic solderless prototype board in red, sized 36 × 46 × 10 mm. It enables quick assembly and modification of small electronic circuits without soldering and is supplied in a box for storage and transport.

Advantages

The breadboard allows fast, solderless circuit assembly so components and jumper wires can be repositioned easily. It is compatible with common through-hole components such as transistors, diodes, LEDs and capacitors. An adhesive sticker on the underside enables secure mounting to smooth surfaces and can be removed without leaving residue; alternatively the board can be fixed using two screws.

Suitable for

• Arduino shield prototyping
• Switching tests and circuit experiments
• Small PCB projects and rapid prototyping
• Hobby electronics, laboratory exercises, school and university courses

Key specifications

• Brand: DELOCK
• Model / MPN: 18318
• EAN: 4043619183180
• Type: plastic solderless prototype board (breadboard)
• Dimensions: 36 × 46 × 10 mm
• Colour: red
• Mounting: adhesive sticker on underside; optional fastening with two screws
• Packaging: supplied in a box

How to use

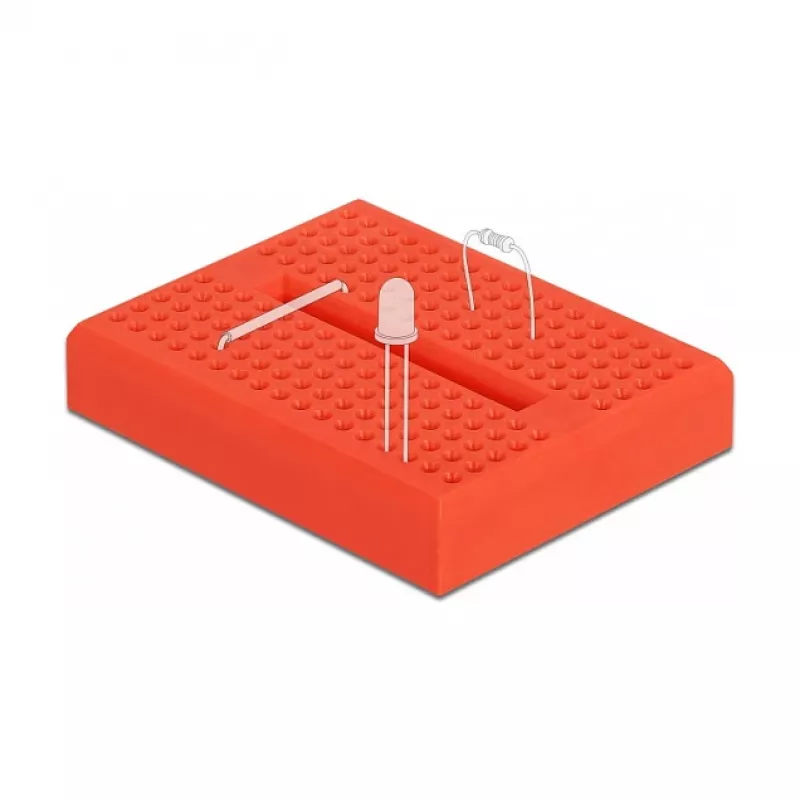

Place the breadboard on a clean, smooth surface or fix it with the adhesive sticker on the underside; if preferred use two screws for mechanical fastening. Insert component leads and jumper wires into the contact holes to form electrical connections according to your circuit layout. Reposition components as needed to modify the circuit; no soldering is required.

Recommendations

For reliable contact, ensure component leads are straight and fully inserted into the contact points. Avoid excessive mechanical stress on the board; when using higher currents or sensitive measurements, verify contacts and consider soldered connections on a PCB if permanent mounting is required.
